B2601

Compact Tractors

  • Warranty 6 year

Features

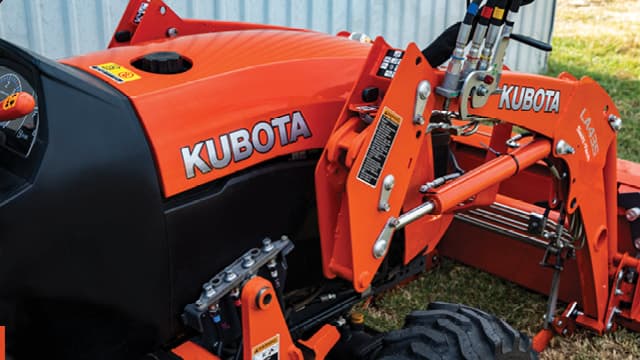

Swift-tach loader

Convenience leads to productivity. The New Swift-Tach Loader system allows you to remove the B01’s LA435 loader in less than a minute—and you don’t even have to leave the seat. Now that frees up time to focus on more pressing matters.

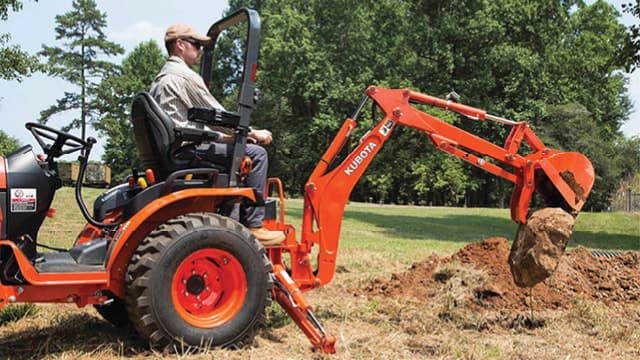

BH70 Backhoe

The reliable BH70 is fully optimized for the B01 series. It comes with a reversible seat that swivels for easier backhoe operation. The 4-point mount system allows toolless switching between the backhoe and rear implements. Removing the backhoe is as simple as disengaging two pins and three hoses.

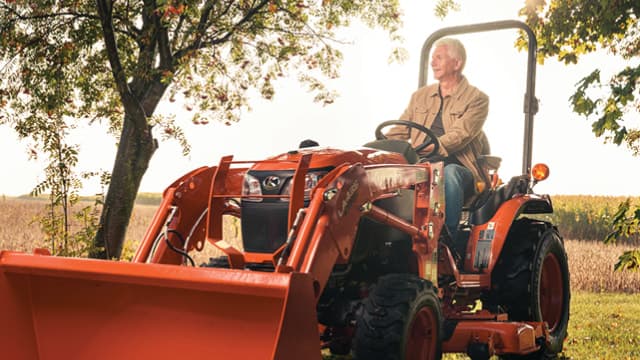

Tilt-steering wheel and high-back seat

The steering wheel tilts by the easy-step pedal to improve steering comfort and to make your ride comfortable no matter the conditions, the new high-back seat is specifically designed to absorb shock, reducing operator fatigue. For added comfort, armrests are standard equipment.

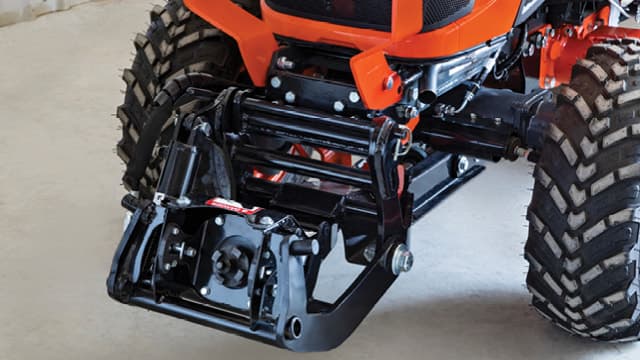

K-Connect to greater efficiency

The ultra-convenient K-Connect Front-Hitch makes PTO-driven attachments easy to install and remove. Now you can enjoy the ability to quickly switch from rotary sweeper, to snowblower, to blade—ideal for snow, lawn, or spring cleanups.

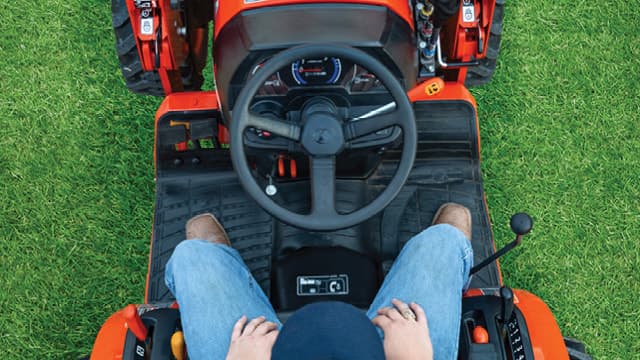

Expansive operator platform

Thanks to a large, ISO-mounted flat deck, the operator enjoys plenty of legroom and a wider step area for easier mounting and dismounting. Widely spaced fenders also contribute to a comfortable, spacious environment.

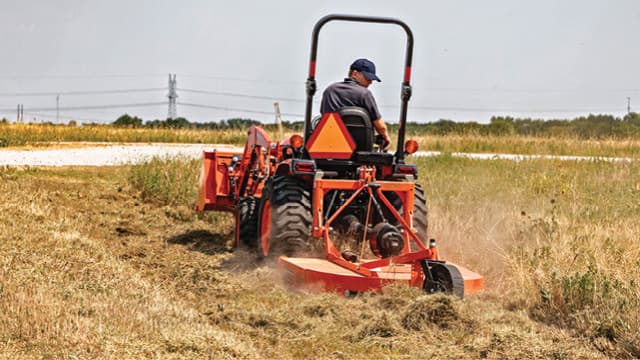

Hydraulic independent PTO

The Independent PTO keeps stopping to a minimum. Stay productive by engaging and disengaging PTO, and continue to travel forward and backward with ease.

Specs

Model
Model name
B2601
Engine
Type
E-TVCS, liquid cooled, 3 -cylinder diesel
Air pre-cleaner
Dual paper element
Bore
3.1 in / 78 mm
Stroke
3.1 in / 78.4 mm
Cooling system
Pressurized radiator
Lubrication
Forced lubrication
Make
Kubota D1105
Radiator fan
Radial air flow
Rated engine speed
2800 rpm / 2800 rpm
Engine gross horsepower @ rpm
24.3 HP / 18.1 kW
PTO horsepower
19.5 HP / 14.5 kW
Displacement
68.5 cu. in. / 1123 cc
Fuel tank capacity
6.1 gal / 23 l
Power take off (PTO)
Type
Independent
Rear
PTO/engine speed
540 rpm / 540 rpm
Mid
Rated engine speed
2500 rpm / 2500 rpm
Drive train/transmission
Clutch
N/A

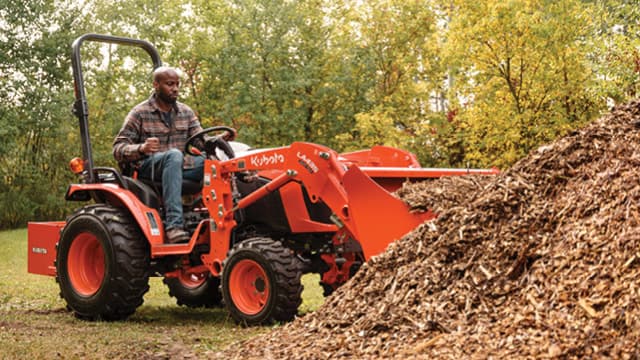

Transmission type
HST (3 ranges)
Differential lock
Standard
Brake type
Multi-plate wet disc
Hydraulic system
Control system
Position control valve
3-Point hitch
Category I
Type
Open center
Total pump output
8.3 gpm / 31.4 l/min
Pump type
Dual pump
Hydraulic outlet
Rear outlet
Steering type
Hydraulic power steering
Lift capacity
24" behind lift point
1411 lb / 640 kg
At lift points
1808 lb / 820 kg
Chassis, axle and brakes
Final drive
Spur gear
Dimensions and weight
Ground clearance
12.8 in / 325 mm
Overall height
85 in / 2160 mm
Wheelbase
61.4 in / 1560 mm
Weight
1632 lb / 740 kg
Overall length
Without 3 Pt hitch
94.9 in / 2410 mm
Overall width
(min. tread)
49 in / 1245 mm
Standard tire size
Front (Farm)
44902
Rear (Farm)
11.2-16
Turning radius
With brake
6.9 ft / 2.1 m
Fluid capacities
Cooling system capacity
4 qt / 3.8 l
Engine lubricant oil capacity
3.3 qt / 3.1 l
Transmission oil capacity
4 gal / 15 l
Fuel system
Fuel type
Diesel
Traveling speeds (With standard tires)
Forward
12.7 mph / 20.4 km/h
Reverse
9.5 mph / 15.3 km/h
