BX23S

Tractor Loader Backhoes

Starting at $32,288
  • Warranty 6 year powertrain

Features

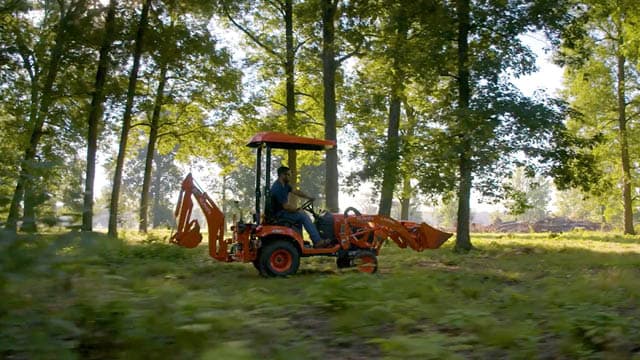

The all-powerful Kubota diesel engine

All the BX Series Tractors are powered by rugged, perfectly built Kubota Diesel engines, exclusively engineered for the BX Series. The BX1880 and BX2380/BX23S come with brawny 18- and 23-horsepower diesel engines, while the BX2680 sports an awesome 25.5-horsepower diesel engine under the hood. All three engines are 3-cylinder workhorses that offer power unparalleled for tractors this size...more than enough muscle to tackle even your toughest jobs.

Sub-compact and fully capable

With an overall length similar to a standard garden tractor, BX-Series tractors are easy to drive and can work smoothly, even in tight spaces. The BX-Series’ economical size also means they’re gentle on turf. But don’t be fooled by their dimensions—these tractors bring big power and can handle an impressive variety of chores and projects.

The power of versatility

Equip the BX with a wide range of optional specialized attachments for added precision and efficiency. Range includes: mowers, box scrapers, snowblowers, grapples and more!

Game-changing versatility

The BX23s comes with the new Swift-Tach loader and backhoe so you can remove the loader without getting down from the tractor, that includes the disconnection of the hydraulic connections, no tools required.

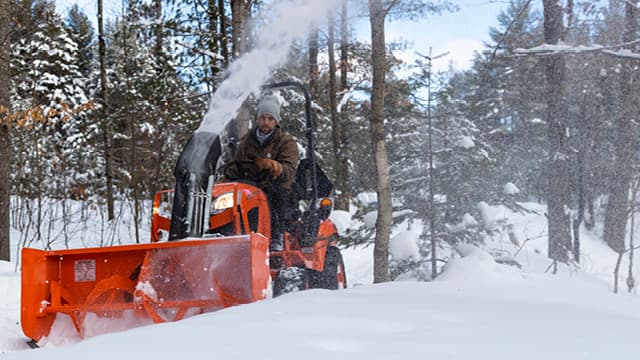

Time-saving K-Connect for front implements

The K-Connect 4 point hitch allows you to connect front implements like a snowblower or blade in no time including the PTO connection with the touch of a lever.

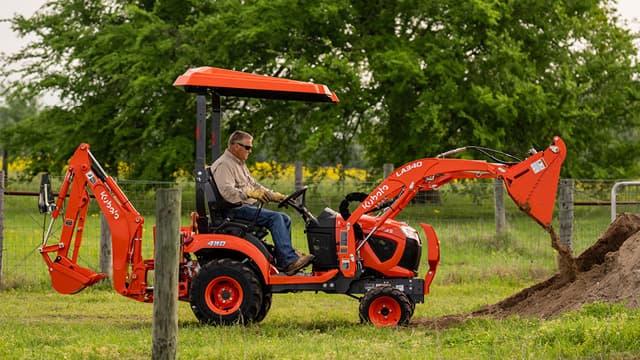

High-class, high-back seat

A new deluxe seat helps keep the operator working comfortably and efficiently, even on the most demanding of tasks. The high-back reclining seat is fully adjustable and equipped with adjustable armrests. The seat on the BX23s easily rotates to provide comfort when operating the tractor normally or when using the backhoe. Soft cushioning supports the back and legs for optimum operator comfort.

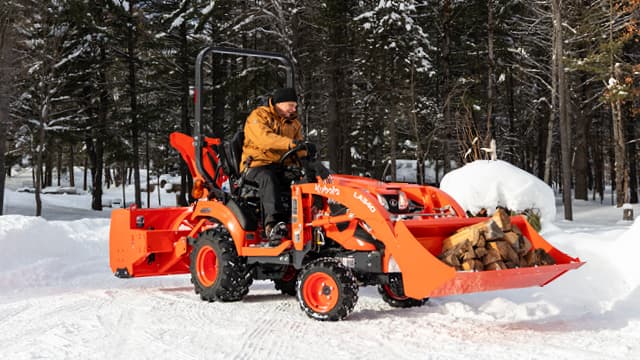

Exceptional ground clearance

The BX Series provides plenty of ground clearance - 8.3 inches for the BX1880, 8.9 inches for BX2380/ BX2680/BX23S - to get you over rocks and other objects in your path.

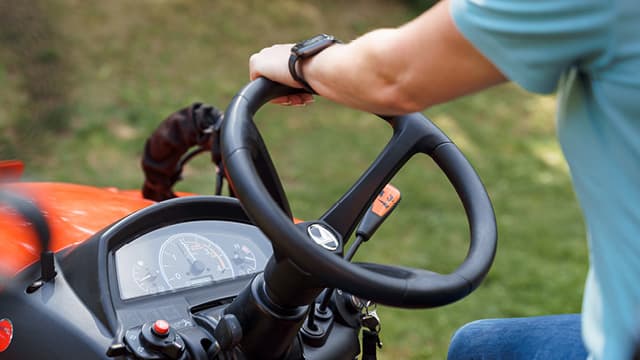

Intuitive back-lit instrument panel

The new BX80 Series’ instrument panel offers easy to read indicators for all of the vital information you need to keep your tractor running smoothly, safely, and efficiently. A single glance at the redesigned instrument panel tells you everything you need to know about the major functions and condition of your BX80 Series tractor. The large tachometer in the center features a convenient orange indicator for the optimum rpm range for loader/ backhoe operations.

Specs

Model
Model name
BX23S
Engine
Model
Kubota D902
Type
Liquid-cooled, 3-cylinder diesel
Cooling system
Liquid-cooled
Rated engine speed
3200 rpm / 3200 rpm
Engine gross horsepower @ rpm
21.6 HP / 16.1 kW
PTO @ rpm
17.7 HP / 13.2 kW
Displacement
54.8 cu. in. / 898 cc
Fuel tank capacity
6.6 gal / 25 l
Number of
Cylinders
3
Power take off (PTO)
Mid-PTO
Standard
Rear PTO
Standard
Type
Live independent PTO (with hydraulic clutch)
Rear
Rated engine speed
540 rpm / 540 rpm
Mid
Rated engine speed
2500 rpm / 2500 rpm
Drive train/transmission
Transmission type
HST, High-Low gear shift ( 2 forward / reverse )
Brake type
Wet disc
Drive method
4WD
Hydraulic system
3-Point hitch
Optional
Total pump output
6.2 gpm / 23.5 l/min
Steering type
Hydrostatic Power Steering
Lift capacity
24" behind lift point
680 lb / 310 kg
Dimensions and weight
Ground clearance
7.6 in / 193 mm
Overall width
45.1 in / 1145 mm
Wheelbase
55.1 in / 1400 mm
Overall height
Top of Open Station
86.2 in / 2190 mm
Overall length
With 3 Pt hitch
99 in / 2515 mm
Tread width
Front
36.6 in / 930 mm
Rear
32.2 in / 820 mm
Turning radius
Without brake
7.5 ft / 2.3 m
Weight
Open Station
1570 lb / 712 kg
Fuel system
Fuel type
Diesel
Tires
Bar
Front
N.A.
Rear
N.A.
Turf
Front
18×8.5–10
Rear
26×12–12
Industrial
Front
18×8.5–10
Rear
26×12–12
Traveling speed
at rated engine rpm (Turf)
Forward
8.4 mph / 13.5 km/h
Reverse
6.5 mph / 10.5 km/h
