F3710

Front Mount Tractors

Starting at $43,852
  • Warranty 2 years

Features

Get comfortable

Get the job done in a comfortable and fully adjustable seat. The armrests come standard and you can select between a suspension or air ride seat.

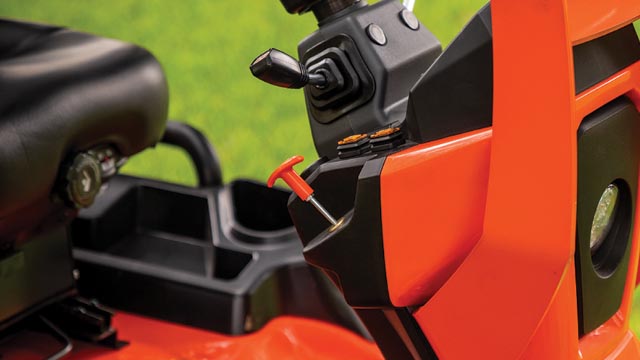

New parking brake

Secure your ride at the end of a productive day with ease. The new parking brake on the F10 is dash mounted and easier to lock for trouble-free access and operation.

LED work light

The F10 is equipped with a powerful LED work light for better visibility in low light conditions so you have the ability to get the job done at any time of day.

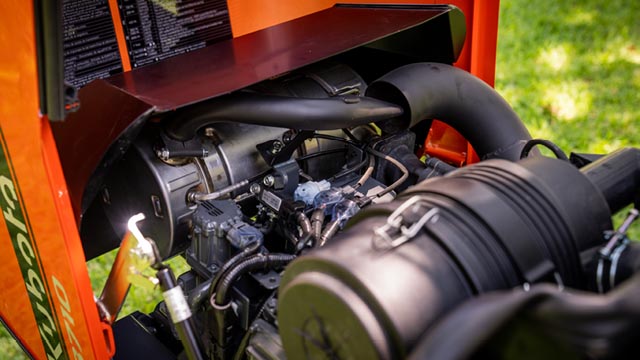

Easier maintenance points

We’ve made it easier to access important areas of the F10 for your daily check points. The air filter is on top of the engine for easy access, the radiator screen can be quickly removed for cleaning and the hood now has a strut to make opening and closing easier. The floor panel door is larger for easier entry to the drive shaft, and the mower deck tilts 90 degrees.

Dependable diesel engine

The Kubota Common Rail System diesel engine provides better fuel economy and lower emissions as well as a high level of power, torque and reliable performance. Its combination with the Diesel ParticulateFilter (DPF) Muffler further reduces emissions to make it compliant with the TierIV emissions regulations.

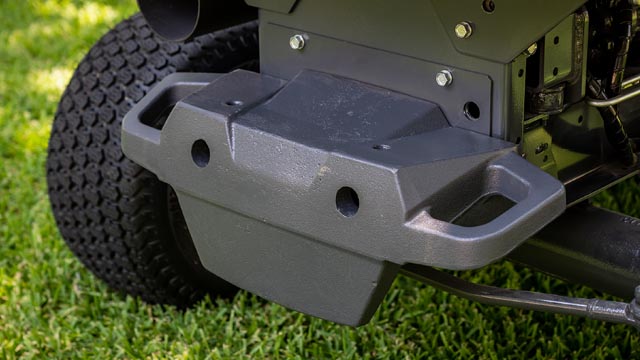

Rear tie down hooks

If you need to transport your F10, it’s easier to secure it to a trailer thanks to the tie down hooks found at the rear.

4WD and auto-assist 4WD

Auto-Assist 4WD works in forward and reverse, automatically controlling the drive loads on the wheels during turns. Auto-Assist 4WD lets you turn with greater efficiency and ease with less wear and tear on the turf. Full-time 4WD can also be engaged.

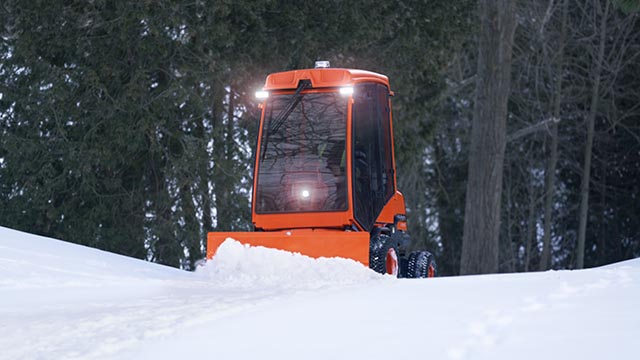

Go all season

The F10 can be put to work 24/7/365. Switch from a front mower deck to a variety of attachments for spring and fall cleanup or snow removal. Work from a Canadian climate certified cab to stay productive and comfortable all year round.

Specs

Model
Model name
F3710
Engine
Type
Liquid-cooled diesel (4 cyl)
Displacement
91.4 cu. in. / 1498 cc
Manufacturer
Kubota V1505T-IDI+DPF
Engine gross power
36.9 HP / 27.5 kW
Air cleaner
Type
Dual element
Electrical
Alternator
12 V, 60A
Fluid capacities
Fuel tank capacity
16.1 gal / 61 l
Traveling speed
Forward
12.4 mph / 20 km/h
Reverse
6.8 mph / 11 km/h
Drive train/transmission
Cruise control
Optional
Drive method
4WD
Type
HST (F2/R2)
4WD - mode select
Auto-assist 4WD with dual acting overrunning clutch/locked (4WD)
Tires
Front
24 × 12 - 12
Rear
18 × 9.5 - 8
Chassis, axle and brakes
Brakes
System
Wet discs
Steering
Type
Hydrostatic power
Tilt steering wheel
Standard
Differential lock
Standard
Turn assist brake
Optional
Tread
Front
41.9 in / 1063 mm
Rear
40.2 in / 1020 mm
Dimensions and weight
Ground clearance
7.3 in / 185 mm
Overall height
78.1 in / 1985 mm
Overall length
99.6 in / 2530 mm
Overall width
53.9 in / 1370 mm
Wheelbase
53.1 in / 1350 mm
Weight
1872 lb / 849 kg
Power take off (PTO)
Type
Independent live, Shaft drive
Clutch
Wet multi discs, hydraulic
Revolution
2580
Mower decks
Lift system
Hydraulic 2-point hitch
Tilt assist
Standard
Weight transfer system
Standard
Other
Seat
Reclining suspension seat
Fuel gauge
LCD Display (White backlight)
Roll-over protective structure (ROPS)
Standard (ISO21299 and OSHA)
Tachometer
LCD Display (White backlight)
Toolbox
Standard
Beverage holder
Standard
Fuel system
Fuel type
diesel
