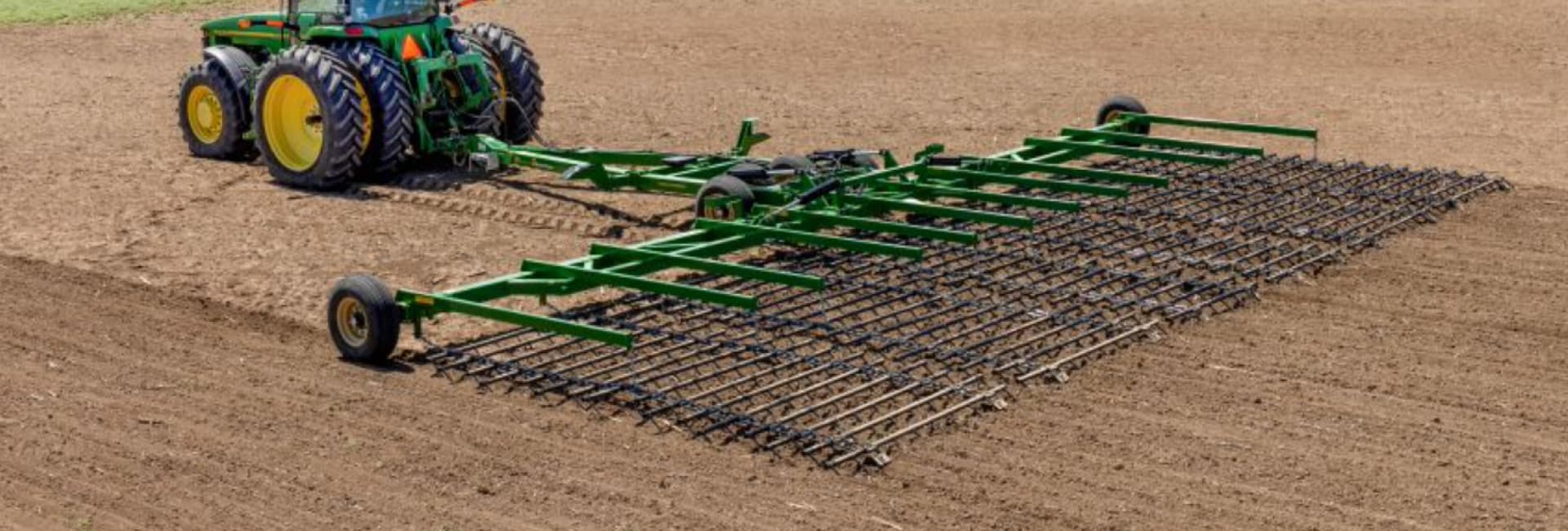

Great Plains Flex Harrow

Its new robust ladder frame, combined with our heavy-duty, narrow tongue design, eliminate the need for wing cables. Other enhancements include longer teeth on the drag section; bar connectors that maintain the set tine angles for straighter, consistent tracking; and walking tandem axles on select sizes. Now available in 15 widths from 18' to 60', you’ll find a Flex Harrow that is perfect for any operation!

Videos

Features

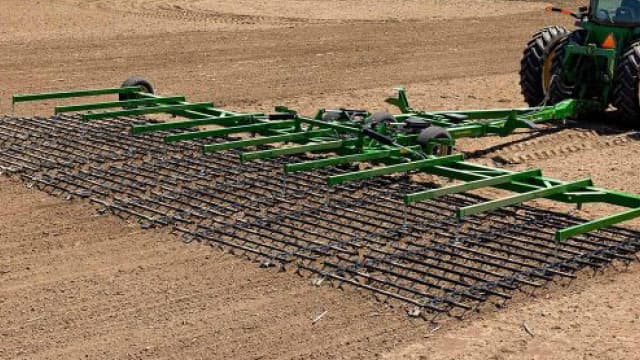

New robust heavy-duty frame

The enhanced frame of the CT8300 provides durability across a wide range of applications – even in the toughest field conditions. The stronger toolbar and narrow tongue eliminate the need for wing cables and permit tighter turns in narrower spaces.

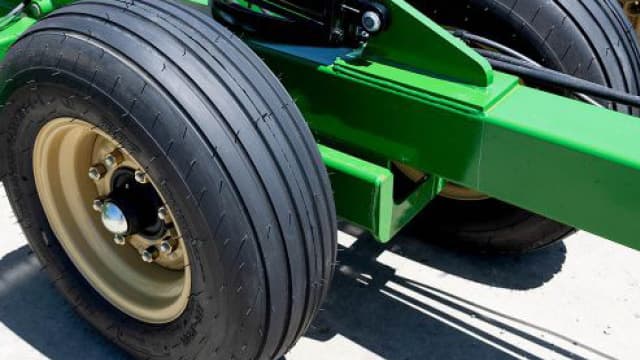

New walking tandem axles

Models 33' and larger feature walking tandems. Walking tandems maintain consistent mainframe height – even on rough terrain – and are designed beefier than competitive models. All tires are standard sized, 12-ply implement tires; radial tires are an option on machines that are 45' and larger.

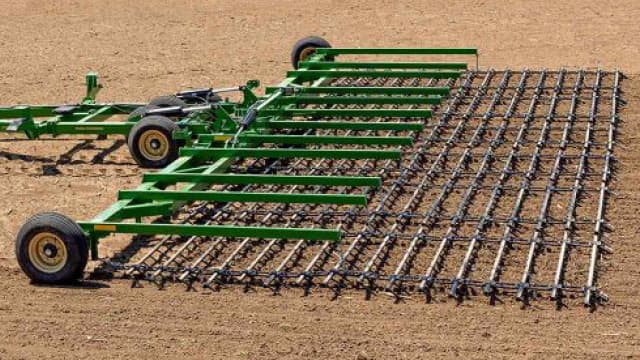

Bar-tine choices

Flex Harrows are available to order with 8 rows or 16 rows of bar tines. Each section of four bars can be added or removed for flexibility. Spaced 9" apart, the tines on the new CT8300 models are 1½" (25%) longer than competitive models, which increases the wear life and improves residue flow.

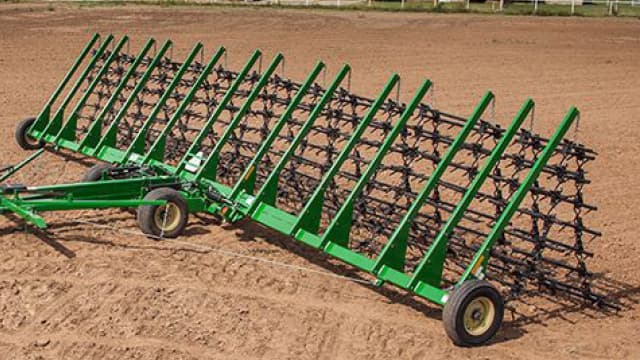

Single hydraulic circuit

The new CT8300 Flex Harrow can be lifted and folded with one SCV control. The simplified fold/unfold process means less downtime when transporting between fields, and allows the unit to be pulled behind other tillage implements.

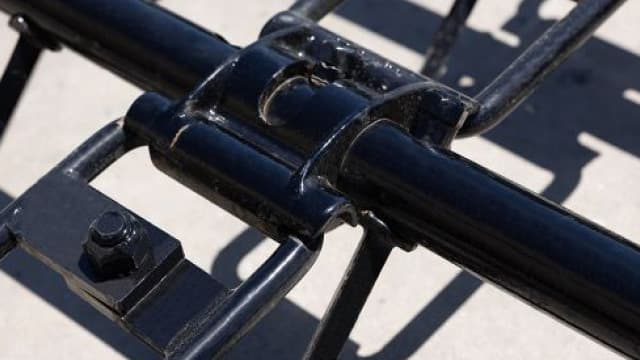

New bar connectors

A new drag bar connector system keeps all spikes at a consistent, uniform angle across the tool. Tines can be run at 50° or 38° for greater or less aggressive finishing. This new design also provides straighter tracking of the drag sections.

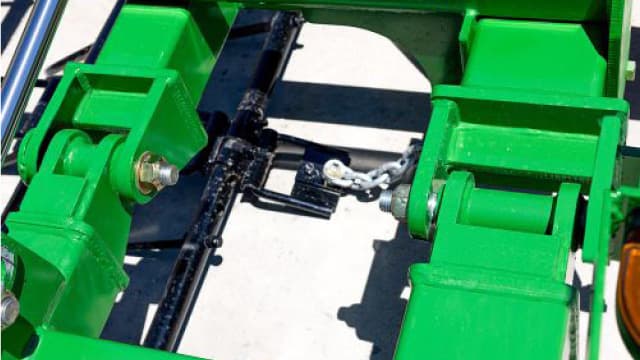

New hinge design

The hinges on the CT8300 are designed to be maintenance-free, supremely durable, and capable of carrying greater wing loads. For added strength, the overall width of the hinge increases as the wing sizes increase.

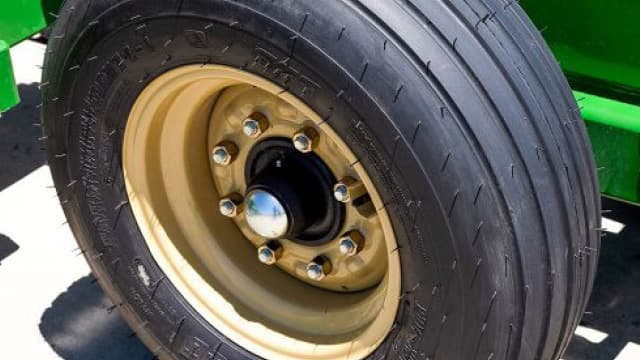

Bolt-in spindles

6-bolt single tires on 18'-30'; 6-bolt walking tandems on 33'-39'; 8-bolt walking tandems on 42'-60' models.

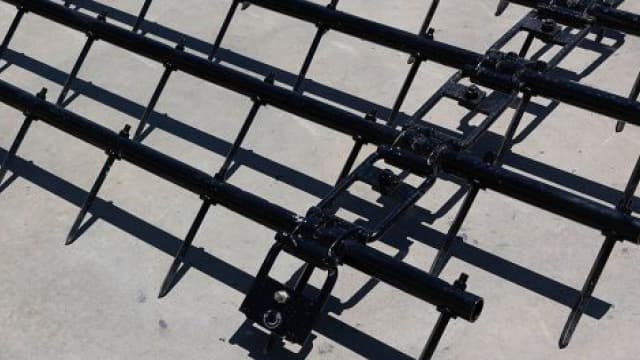

Forge hardened

7.5 inch spike teeth on 9" spacing for longer lasting wear.

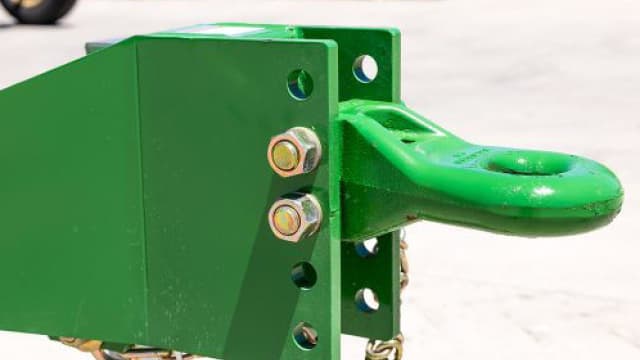

Adjustable hitch height

Adjust the height of the hitch to match the tractor or leading implement's rear hitch height.

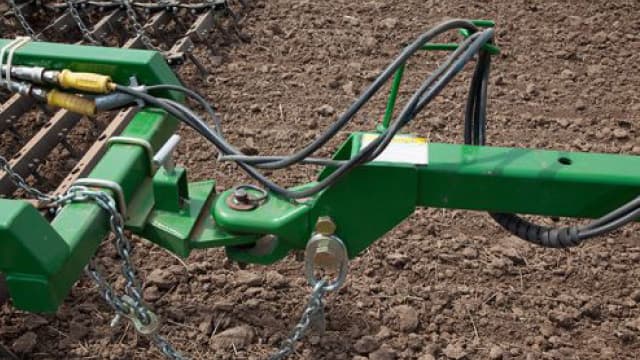

Optional hose extensions

26ˈ and 30ˈ extensions reach remote hydraulic outlets when the unit is pulled behind other tools.

Models

    CT8300-18

    Great Plains Flex Harrow
    • Working Width: 18.0'
    • Transport Width: 9'10"
    • Minimum HP Required (PTO): 50

    CT8300-21

    Great Plains Flex Harrow
    • Working Width: 21.0'
    • Transport Width: 9'10"
    • Minimum HP Required (PTO): 60

    CT8300-24

    Great Plains Flex Harrow
    • Working Width: 24.0'
    • Transport Width: 9'10"
    • Minimum HP Required (PTO): 70

    CT8300-27

    Great Plains Flex Harrow
    • Working Width: 27.0'
    • Transport Width: 9'10"
    • Minimum HP Required (PTO): 80

    CT8300-30

    Great Plains Flex Harrow
    • Working Width: 30.0'
    • Transport Width: 9'10"
    • Minimum HP Required (PTO): 90

    CT8300-33

    Great Plains Flex Harrow
    • Working Width: 33.0'
    • Transport Width: 13'2"
    • Minimum HP Required (PTO): 100

    CT8300-36

    Great Plains Flex Harrow
    • Working Width: 36.0'
    • Transport Width: 13'2"
    • Minimum HP Required (PTO): 110

    CT8300-39

    Great Plains Flex Harrow
    • Working Width: 39.0'
    • Transport Width: 13'2"
    • Minimum HP Required (PTO): 120

    CT8300-42

    Great Plains Flex Harrow
    • Working Width: 42.0'
    • Transport Width: 13'2"
    • Minimum HP Required (PTO): 125

    CT8300-45

    Great Plains Flex Harrow
    • Working Width: 45.0'
    • Transport Width: 13'2"
    • Minimum HP Required (PTO): 135

    CT8300-48flex

    Great Plains Flex Harrow
    • Working Width: 48.0'
    • Transport Width: 13'2"
    • Minimum HP Required (PTO): 145

    CT8300-51

    Great Plains Flex Harrow
    • Working Width: 51.0'
    • Transport Width: 13'2"
    • Minimum HP Required (PTO): 155

    CT8300-54

    Great Plains Flex Harrow
    • Working Width: 54.0'
    • Transport Width: 13'2"
    • Minimum HP Required (PTO): 165

    CT8300-57

    Great Plains Flex Harrow
    • Working Width: 57.0'
    • Transport Width: 16'2"
    • Minimum HP Required (PTO): 175

    CT8300-60

    Great Plains Flex Harrow
    • Working Width: 60.0'
    • Transport Width: 16'2"
    • Minimum HP Required (PTO): 180
