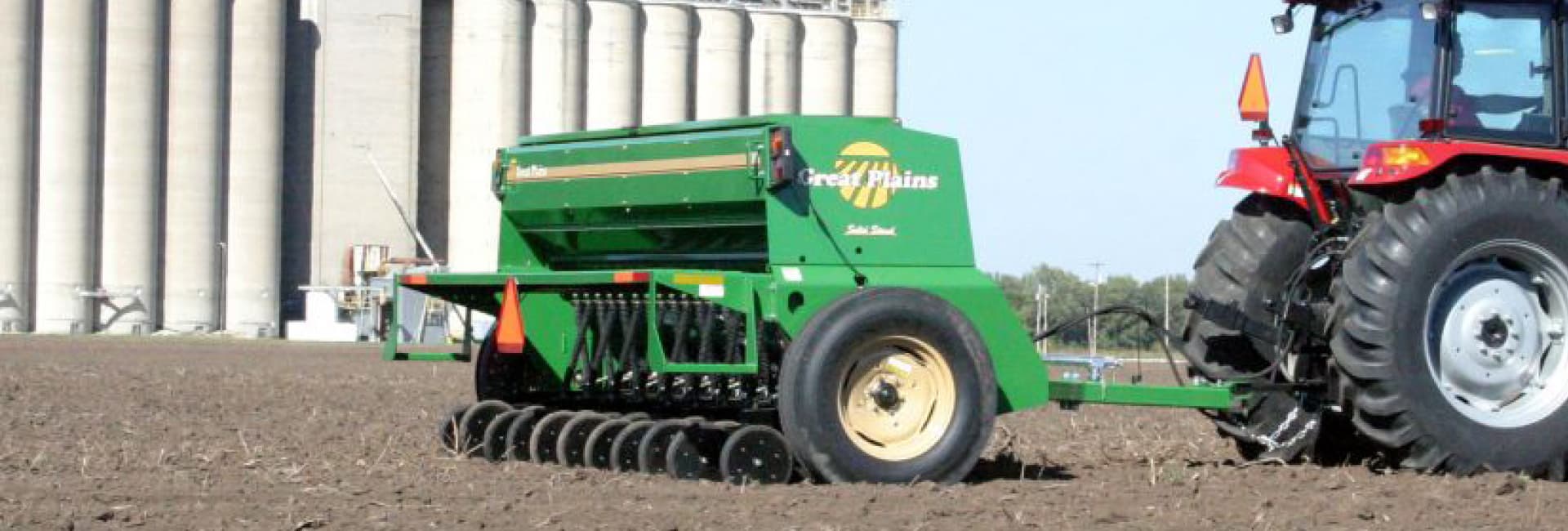

Great Plains 1300 & 1300F Drills

Its rugged construction, combined with a superior opener system, make the unit ideal for minimum-till conditions. The weatherproof seed box features a 3.2 bu./ft. capacity—one of the largest in the industry—minimizing the number of refills required to finish the job. The openers are in line with the end wheels, reducing sideloading on curves or terraces.

Features

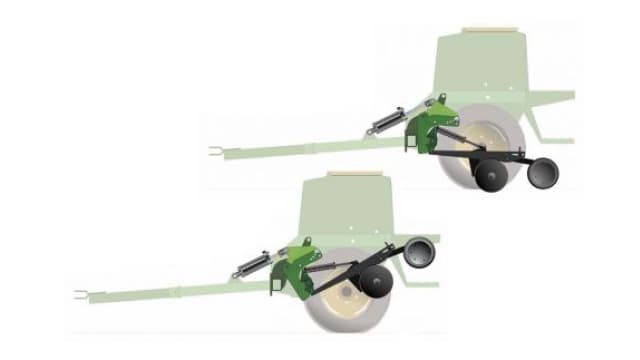

Hydraulic down pressure

A single hydraulic cylinder lifts openers out of the way for transport and end-row turns (inset). The same cylinder also applies down pressure to the 5-position down-pressure adjustment stop. This setting allows the operator to quickly change the amount of down pressure on openers.

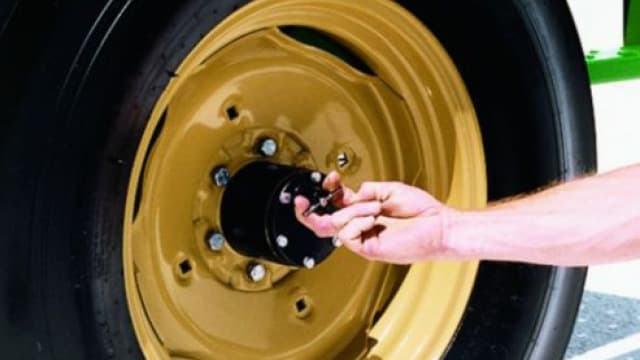

Lockout hubs

Quickly disengage all chains and sprockets for reduced wear during transport.

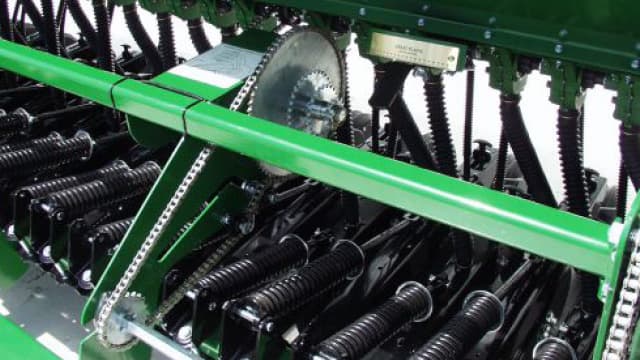

Simplicity of operation

Setting planting rates is fast and simple with a 4-speed sprocket transmission and easy-to-adjust seed-rate handle.

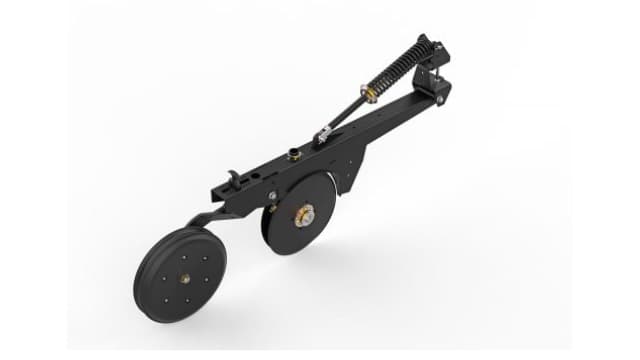

00 series opener

Great Plains 00 Series openers are designed for min-till fluted feed drills.

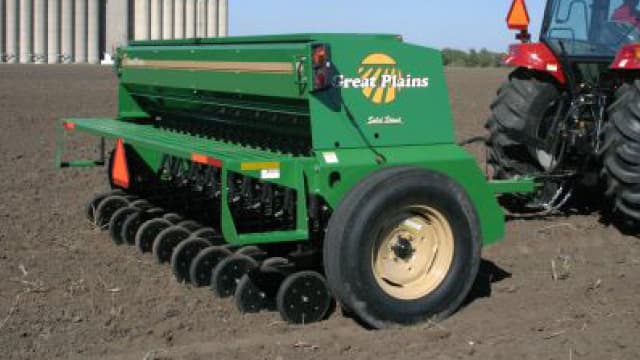

3.2 bushel-per-foot seed box

Largest seed box in its class means more time seeding and fewer stops to fill.

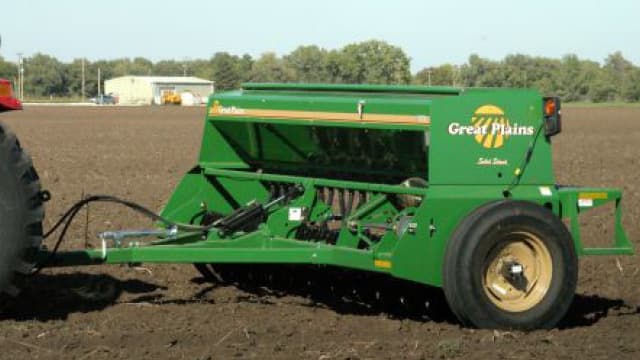

End wheel drive

Large end wheels provide excellent ground drive to the seed meters. Lockout hubs save drive components from wear.

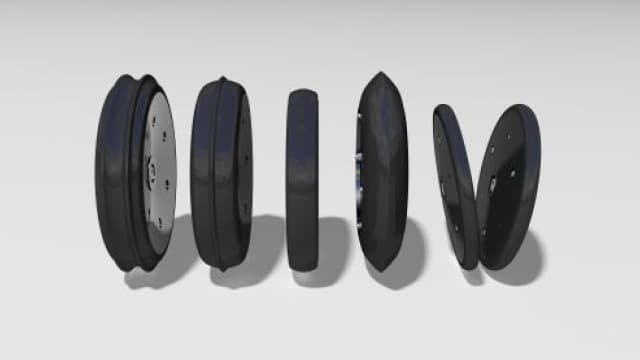

Press wheel options

Single press wheels include a 3"x13" double rib press wheel; a 3"x13" center rib press wheel; a 2"x13" smooth press wheel; or a 3"x14" peak press wheel for arid areas. A 1"x12" double V press wheel is also offered for 7½" and 10" spacings.

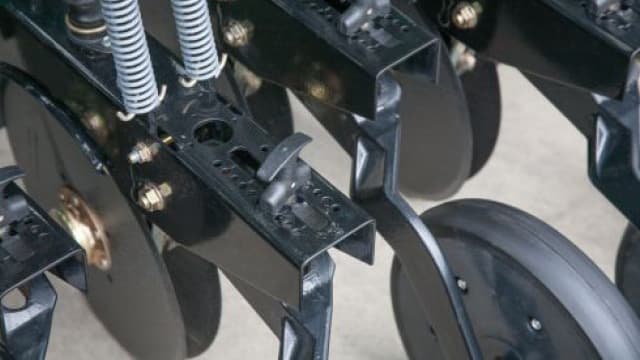

T-handle depth control

T-handle offers 18 different positions for accurate depth control.

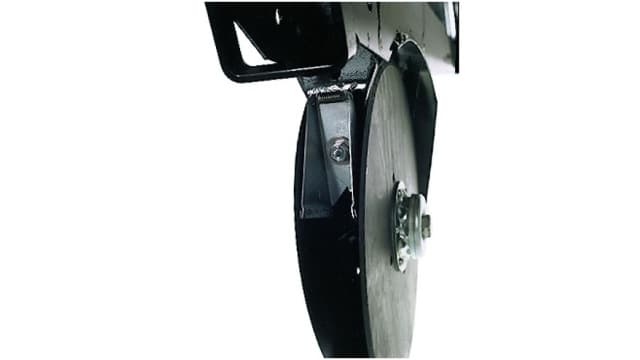

Optional air design scrapers

The ideal solution for higher residue, moist conditions.

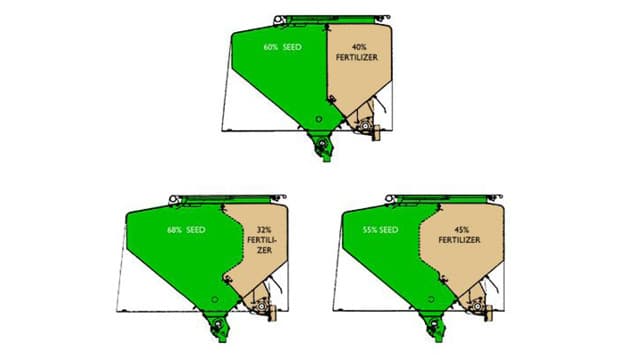

Optional fertilizer box (1300F)

Main seed box can be split for seed and fertilizer application.

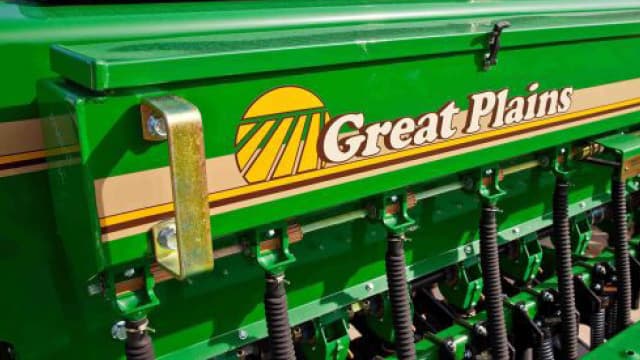

Optional small seeds box attachment

Mounts directly to the back of the main seed box. Utilizes a smaller version of the fluted feed cup to accurately meter tiny seeds like alfalfa and wildflowers.

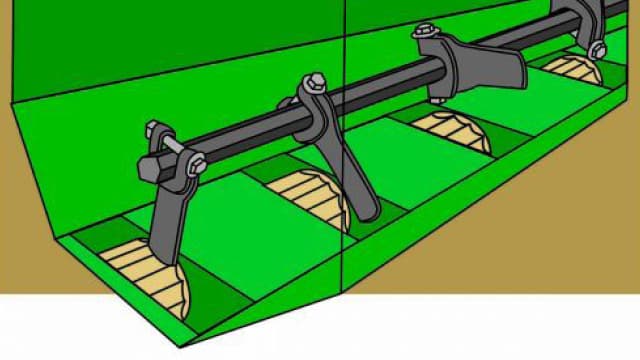

Optional seed box agitator

Eliminates bridging and provides consistent seed flow to the seed cups.

Models

    1300-1610

    End Wheel Drill
    • Row Spacings 6", 7.5", 10"
    • Main Box Capacity 41.6 bu
    • Minimum HP Required (Engine) 65 HP

    1300-2175

    End Wheel Drill
    • Row Spacings 6", 7.5", 10"
    • Main Box Capacity 41.6 bu
    • Minimum HP Required (Engine) 65 HP

    1300-2606

    End Wheel Drill
    • Row Spacings 6", 7.5", 10"
    • Main Box Capacity 41.6 bu
    • Minimum HP Required (Engine) 65 HP

    1300F-2175

    End Wheel Drill
    • Row Spacings 6", 7.5", 10"
    • Main Box Capacity 41.6 bu
    • Minimum HP Required (Engine) 65 HP

    1300F-2606

    End Wheel Drill
    • Row Spacings 6", 7.5", 10"
    • Main Box Capacity 41.6 bu
    • Minimum HP Required (Engine) 65 HP
