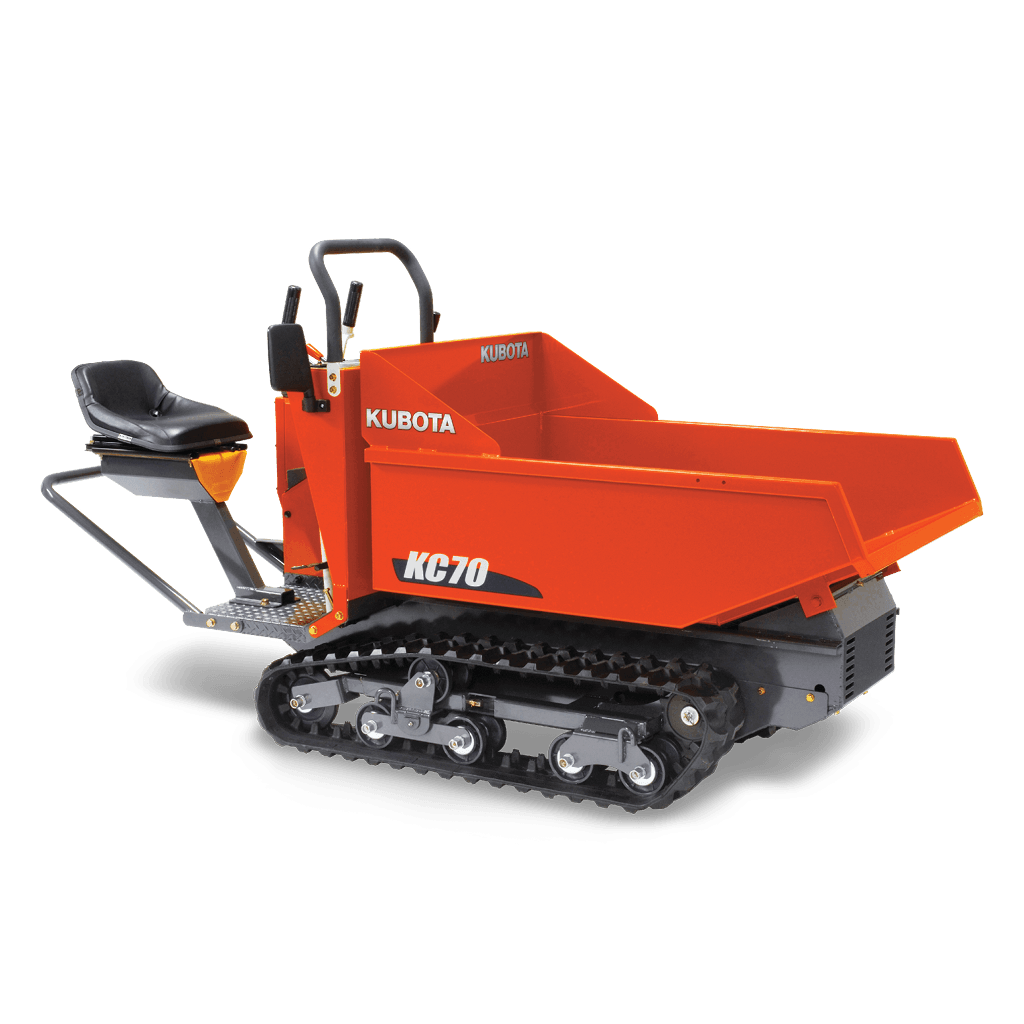

KC70

Track Carriers

  • Warranty 12 months

Features

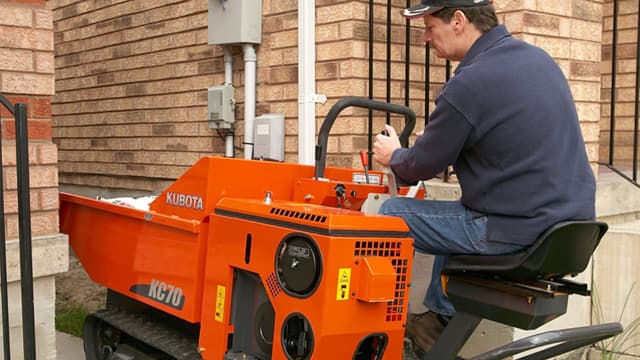

Clean, environmentally friendly engine

Tough and dependable, the Kubota diesel engine delivers high orque and high output, with optimal fuel efftciency to minimizing operating costs. This diesel engine incorporates the unique combustion method developed by Kubota in our ongoing commitment to deaner emissions, enhanced power. The engine complies with even the toughest regulations now being globally enforced - including the EPA Tier-4 regulations.

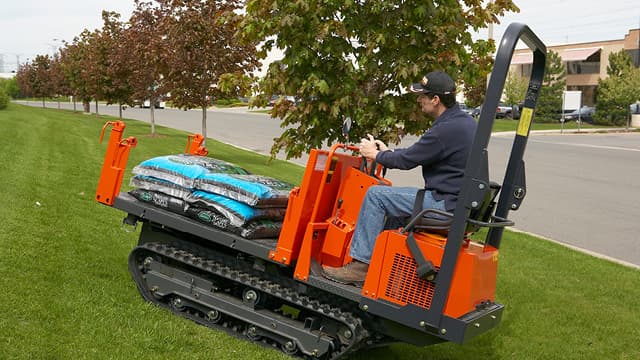

Large load capacity

Though quite compact, the KC-Series of Kubota rubber track carriers feature notably large load capacities - 1,543 lbs (700 kg) for the KC70 and 2,646 lbs (1200 kg) for the KC120HC.

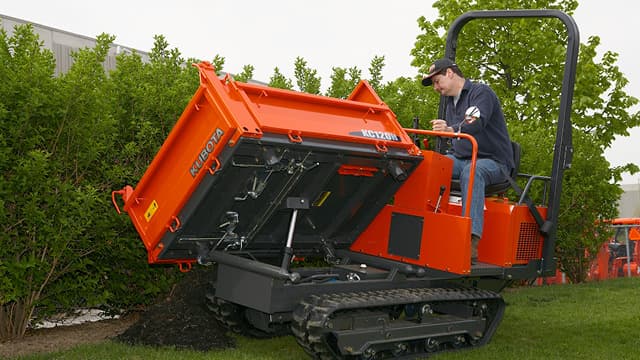

Generous dumping angles

The KC70 provides a generous 68° dumping angle in the forward direction. As for the KC120HC, it has a 56° clumping angle in the forward direction as well as 6 1" to either the right or the left.

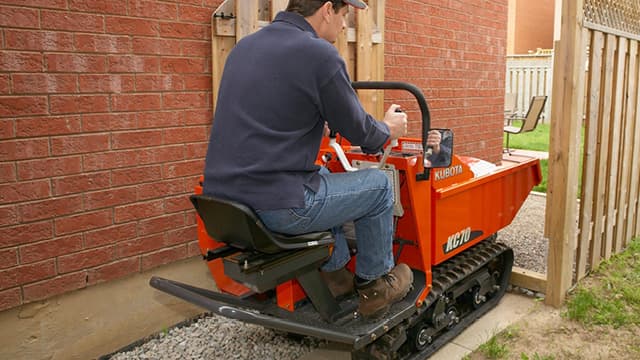

Compact design

To more easily pass through gates and between structures in close proximity as well as to negotiate otherwise proh itively narrow spaces, models in the KC Series feature exceptionally efficient compactness. The width of the KC70 is a slender 34.6 in. while that for the KC120HC is a trim 37.4 in.

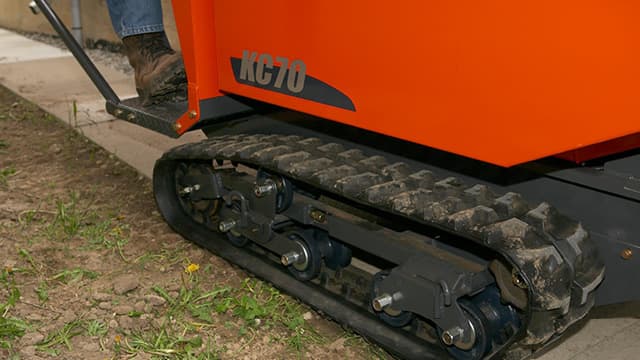

Travel & traction

The flexible bogie style under rollers absorb shock and help contribute to smoother and more stable travel even on rough surface. The long rubber crawler distributes weight better than some wheeled machines for better traction and less damage on soft ground. A single range of running speeds improves turning performance and running speed under heavy loads. Increased traction force also helps to improve travel performance.

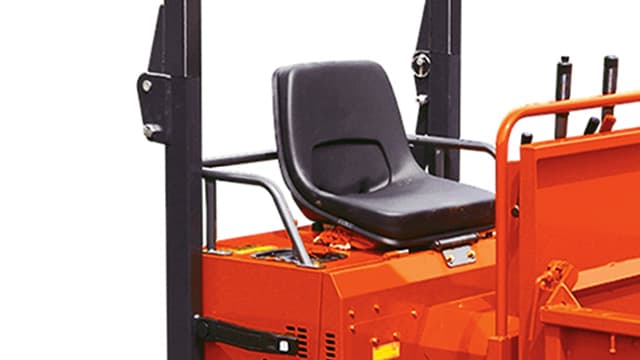

Easy one-touch seat adjustment

The KC120HC-4S’s new slide lever simplifies adjusting the seat backwards and forwards.

Specs

Model
Model name
KC70
Drive train/transmission
Type
Mechanical
Number of shift change
Forward
3
Reverse
3
Engine
Model
KUBOTA OC60
Rated engine speed
1700 rpm / 1700 rpm
Engine gross horsepower @ rpm
5.6 HP / 4.1 kW
Displacement
17 cu. in. / 276 cc
Fuel tank capacity
0.92 gal / 3.5 l
Number of
Cylinders
1
Dimensions and weight
Ground clearance
5.1 in / 130 mm
Weight
922 lb / 450 kg
Length
95.1 in / 2415 mm
Width
34.6 in / 880 mm
Maximum payload capacity
1543 lb / 700 kg
Height
51.6 in / 1310 mm
Track centre-to-centre distance
24.4 in / 620 mm
Bed
Length
49.2 in / 1250 mm
Width
32.3 in / 820 mm
Height
13.8 in / 360 mm
Capacity - struck
0.39 yd3 / 0.3 m3
Capacity - heaped
0.47 yd3 / 0.36 m3
Undercarriage
Track width
7.9 in / 200 mm
Length of track on ground
38.9 in / 980 mm
Traveling speed
Forward
3.1 mph / 5 km/h
Reverse
2.9 mph / 4.8 km/h
Other
Dumping system
Hydraulic
Dumping direction
Front
Dump angle
Approx.
68 deg / 68 deg
