L3302

Compact Tractors

Starting at $33,246
  • Warranty 6 year

Features

Performance options

The L02 Series offers 4 horsepower options, ranging from 24.8 to 48.4 HP — ideal for a wide variety of performance needs and applications.

More tractor for your dollar

The L02 brings plenty of performance and quality to punch above its affordable starting price. A true value-minded and low maintenance product loaded with features that get the job done with minimal down time.

Modern styling that matters

Updated bonnet and grille keep engine and tractor protected from the elements. Ergonomically designed lever grips and steering wheel provide easier access and smooth operation. The new LED work lights deliver great visibility in tough conditions.

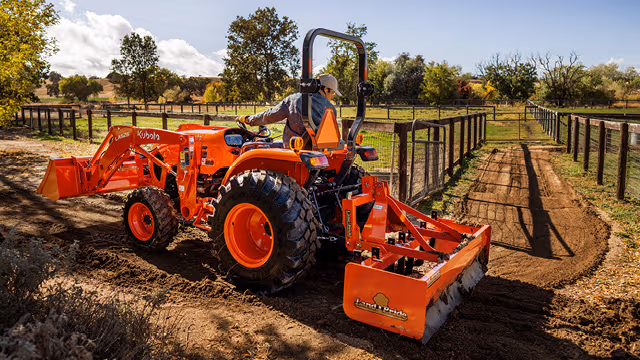

Dependable implement versatility

The NEW Kubota L02 Series comes with a wide range of performance matched implements to take on your toughest gardening, landscaping, snow removal and property maintenance jobs.

Hard-working hydraulic capacity

The L02’s heavy-duty 3pt hitch pairs with a large capacity hydraulic cylinder and pump for heavy-duty lifting capacity and performance. This also enables the unit to work well with different implements and attachments to handle different applications.

Performance matched front loader

Employs a series type loader valve design with simultaneous boom and bucket operation. These help speed-up and dump times for productivity. The curved side wall and flat bottom on the new bucket design make it easier to get more in the bucket and be more efficient with moving material. Plus, with the LA526 and LA766 loaders, you can remove them without tools or parking kits.

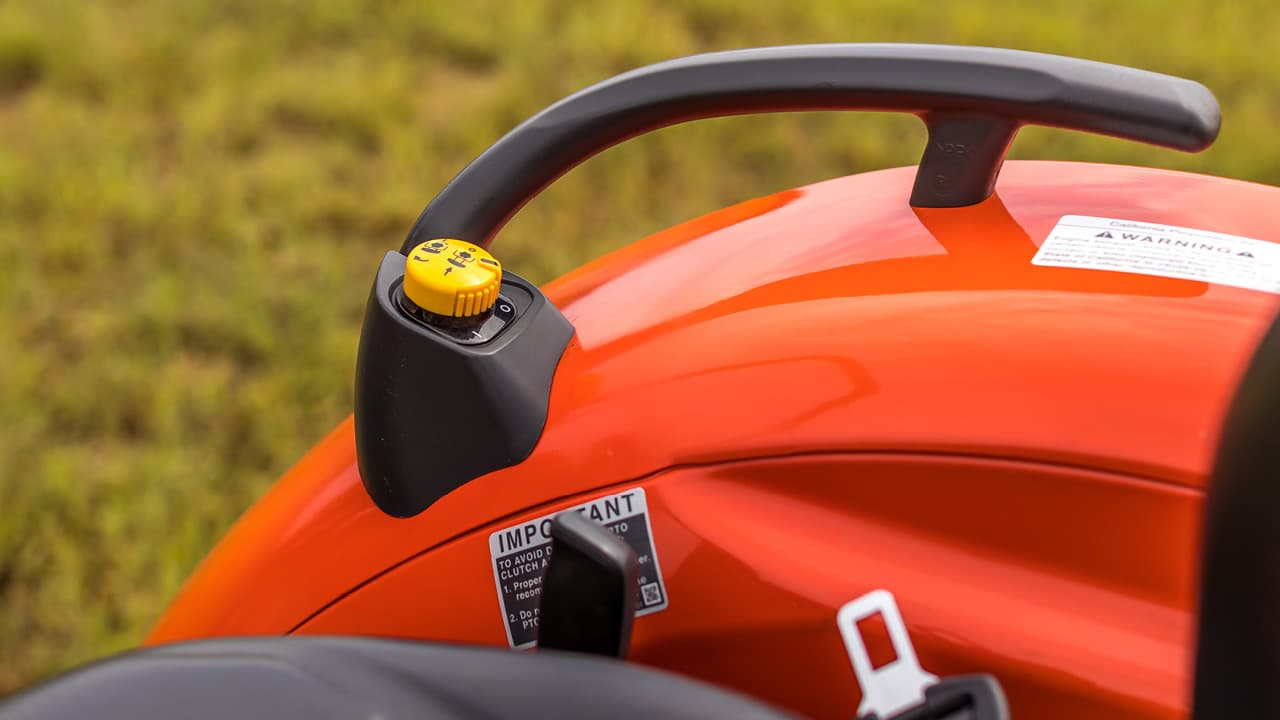

Independent PTO switch (HST model)

Clutchless, and conveniently located for easy operation. A simple push and turn triggers streamlined usage of the PTO to quickly engage and disengage.

Quiet and capable operation

The Kubota diesel engine is designed to perform with reduced noise and vibration for improved overall comfort and operation. For added turning capability, the L02 features dual brake pedals for optional independent left side or right.

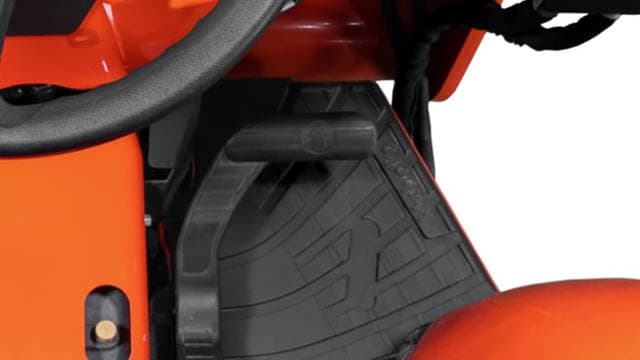

HST or gear drive transmission

Kubota transmissions deliver smooth operation in HST or Gear Drive configurations. The HST provides forward/reverse speed control via the pedal. The gear drive on the L3902 model enables 8 forward and 8 reverse speeds to get the job done.

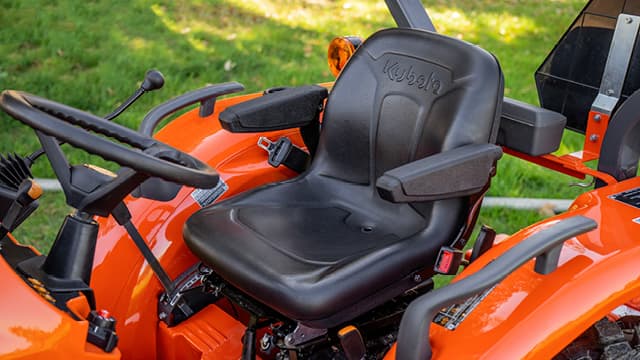

All-day comfort

Get the job done all day long with the L02’s spacious operator station, improved suspension seat with optional arm rests, and the standard rubber floor mats.

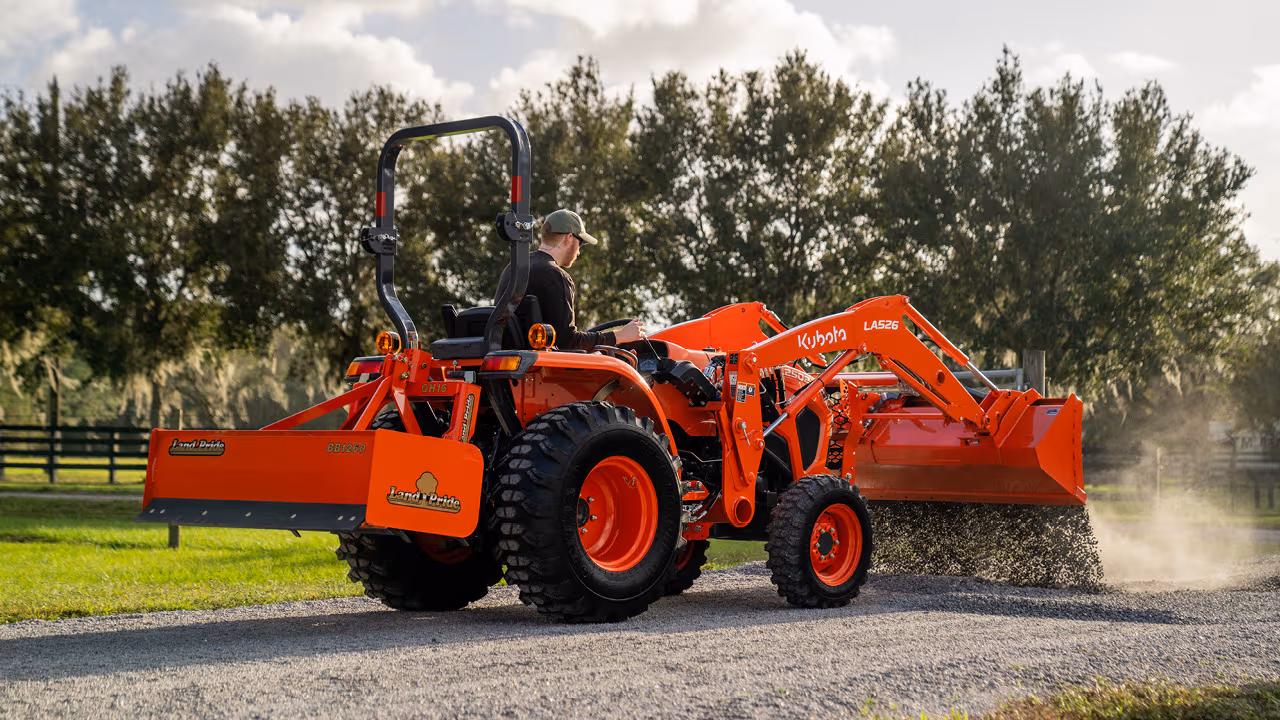

Cast-iron front & rear axle

The L02 Series is equipped with a heavy duty cast-iron front axle to help withstand wear and tear. Whether using the front loader, backhoe, or a 3-point implement, you can rely on its durability to handle the job.

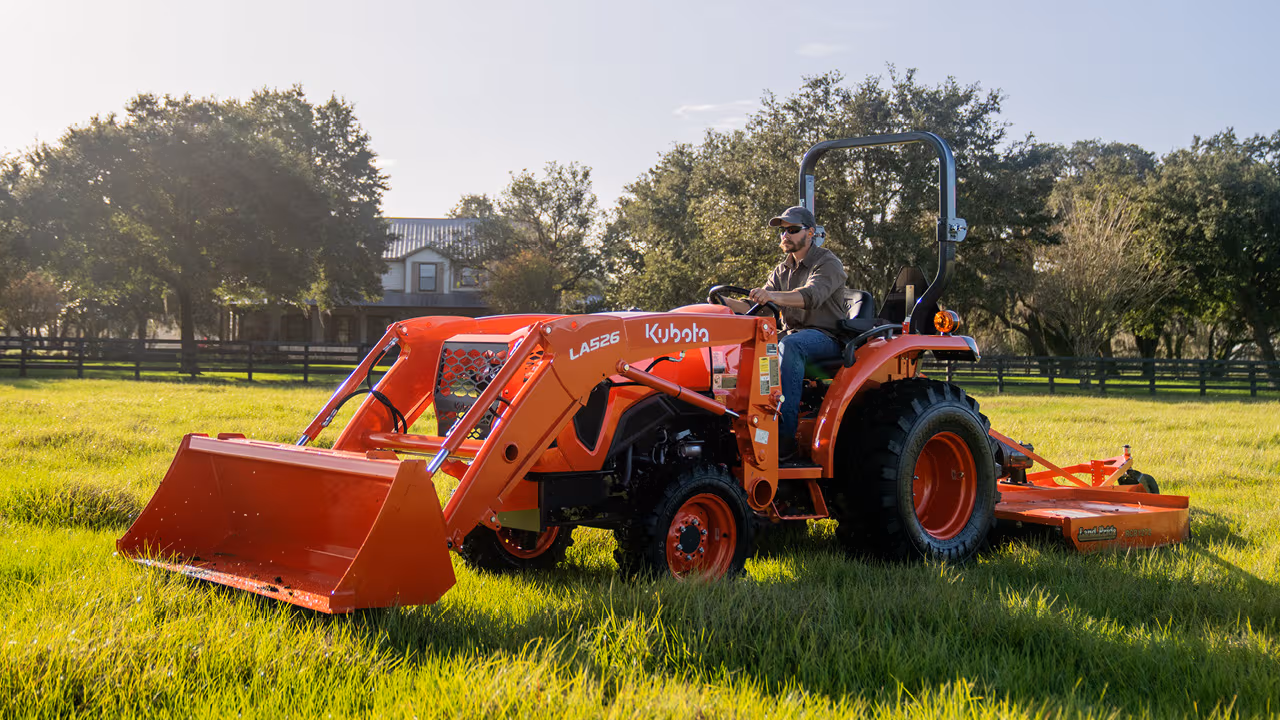

Easy quick coupler

Keep it simple and efficient. Quick, easy on/off buckets and other attachments require no tools, only mounting pins and hose couplers, allowing you to move onto the next task in a matter of minutes.

Hassle-free operation and maintenance

Capable. Compact. Built for everyone to use. The Kubota L02’s platform allows for easy operation and maintenance for lasting productivity for all of your needs.

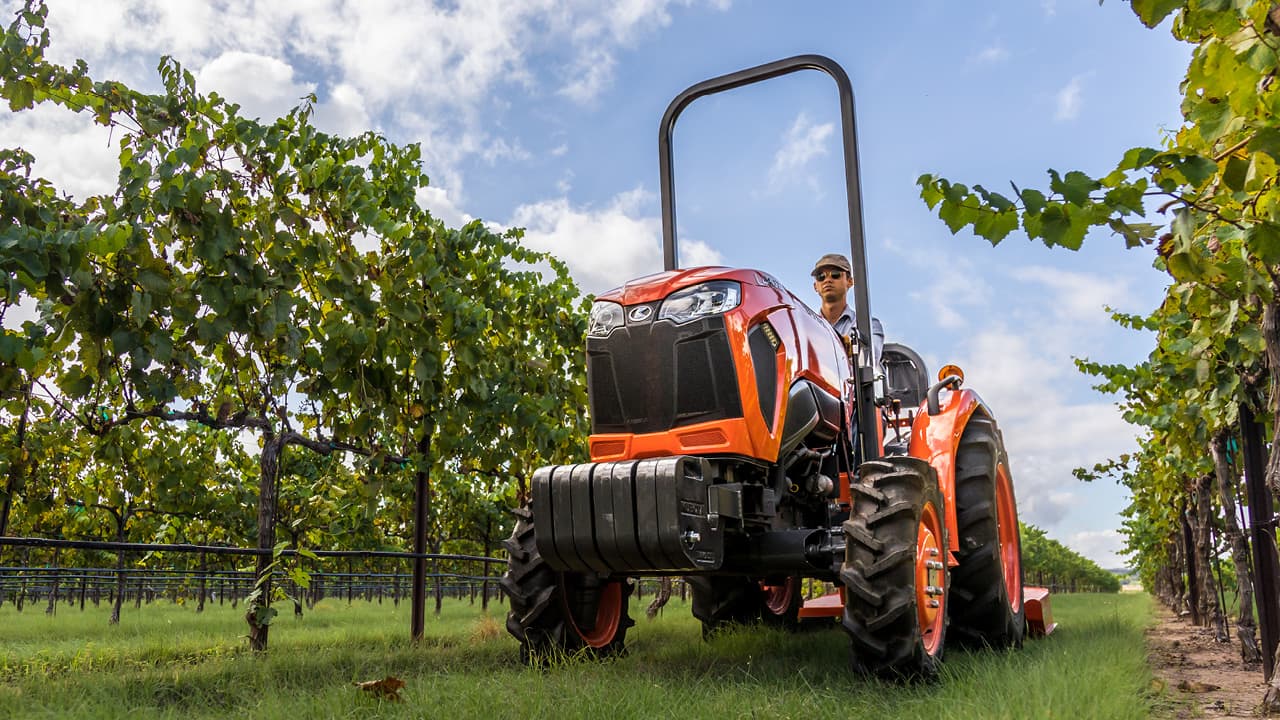

Narrow model available

Perfect for tight spots such as orchards, vineyards, and nurseries, the Kubota L02N is a great narrow option at only 52.7” wide.

Specs

Model
Model name
L3302
Engine
Type
Direct injection, vertical, water-cooled 4-cycle diesel
Bore
3.4 in / 87 mm
Stroke
4 in / 102.4 mm
Rated engine speed
2700 rpm / 2700 rpm
Engine gross horsepower @ rpm
33 HP / 24.6 kW
Engine net horsepower @ rpm
31.8 HP / 23.7 kW
PTO horsepower
26.1 HP / 19.5 kW
Displacement
111.4 cu. in. / 1826 cc
Fuel tank capacity
11.1 gal / 42 l
Alternator
45 A / 45 A
Number of
Cylinders
3
Electrical
Battery
600 A / 600 A
Power take off (PTO)
Rear PTO
540
Type
Live independent PTO with hydraulic clutch
Rated engine speed
2470 rpm / 2470 rpm
Hydraulic system
3-Point hitch
Category I
Lift control type
Position control
System pressure
16.2 psi / 165 kg/cm2
Steering type
Integral type power steering
Lift capacity
24" behind lift point
1435 lb / 651 kg
At lift points
1998 lb / 906 kg
Pump capacity
Main
6.3 gpm / 23.9 l/min
PS
3.8 gpm / 14.5 l/min
Drive train/transmission
Number of ranges
3
Transmission type
HST
Brake type
Mechanical, wet disc type
Drive method
4WD
Fuel system
Fuel type
diesel
Traveling speeds (With standard tires)
Reverse
12.7 mph / 20.5 km/h
Forward
14.1 mph / 22.7 km/h
Dimensions and weight
Ground clearance
13.4 in / 340 mm
Wheelbase
63.4 in / 1610 mm
Weight
2778 lb / 1260 kg
Overall height
Open Station
91.7 in / 2330 mm
Overall length
Without 3 Pt hitch
108.5 in / 2755 mm
Overall width
(min. tread)
55.1 in / 1400 mm
AG Standard tire size
Front
7.2 / 16
Rear
11.2-24
Turf optional tire size
Rear
13.6-16
Front
25 x 8-14
Turning radius
With brake
8.2 ft / 2.5 m
Tread width
Rear
43.9 in / 1115 mm
Front
43.1 in / 1095 mm
Industrial optional tire size
Rear
15-19.5 R4
Front
27x8.50-15
