L3970

L3970

L3970

Compact Tractor

6 year Warranty

L3970

Request A Quote

L3970

Compact Tractor

6 year Warranty

Request A Quote

Features

Introducing: L70 series

Introducing: L70 series

The L70 series features a fully redesigned exterior and larger cab, making your ride smoother and more comfortable. With sleek styling, bright LED headlights, a...

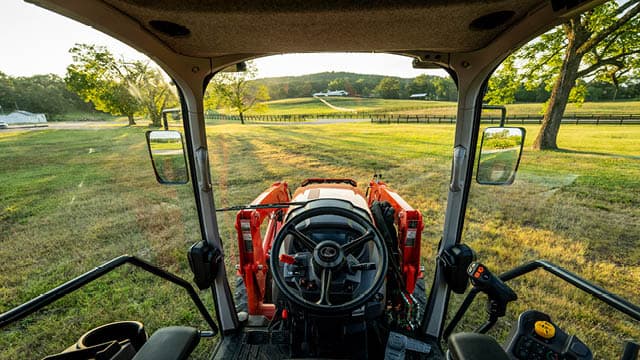

Comfortable and spacious ProCab

Comfortable and spacious ProCab

Comfortable and Spacious ProCab Designed for all-day comfort, the ProCab offers improved visibility, optimized HVAC ventilation, and up to 8% noise reduction. With front and rear...

Intuitive Multi-Function Control Lever (Premium Models)

Intuitive Multi-Function Control Lever (Premium Models)

The new Multi-Function Control Lever integrates frequently used controls directly into the loader joystick for effortless operation. The intuitive control layout ensures everything is within...

K-Command display

K-Command display

The K-Command colour display provides advanced control at your fingertips. With integrated radio, Bluetooth connectivity, hands-free phone controls, and controlled with an easy-to-use navigation pad...

Sightline cameras (Premium models)

Sightline cameras (Premium models)

Enhance visibility of your surroundings and attachments with optional front and rear cameras integrated into the K-Command Display. Useful for low-speed loader applications and field...

Customizable control with iHST

Customizable control with iHST

Kubota’s three-range intelligent hydrostatic transmission (iHST) delivers smooth, responsive power you can tailor to any task. Adjust pedal sensitivity, shift between High and Low on...

True Drive System (Premium models)

True Drive System (Premium models)

Kubota-built turbo engines —ranging from 39 to 60 HP— paired with the electronic iHST transmission are optimized for power and efficiency, running at lower RPMs...

New performance matched loaders

New performance matched loaders

The L70 Series features three performance-matched loaders that transform your tractor into a versatile material handling powerhouse. Now available with Mechanical Self-Leveling to keep your...

L3970 Specs

Model name
Model nameL3970PRMRC
Trim Level
Trim Level Premium
Model
ModelD1803CR-T
Type
TypeTurbocharged direct injection, 4 cycle diesel
Air pre-cleaner
Air pre-cleanerDual Paper Element
Cooling system
Cooling systemLiquid-cooled
Rated engine speed
Rated engine speed2300 rpm / 2300 rpm
Engine gross horsepower @ rpm
Engine gross horsepower @ rpm39
PTO @ rpm
PTO @ rpm23.04 kW / 30.9 HP
Displacement
Displacement1826 cc / 111.4300 cu. in.
Fuel type
Fuel typeDiesel
Fuel tank capacity
Fuel tank capacity48 l / 12.7 gal
Number of
Cylinders
Cylinders3
Mid-PTO
Mid-PTONot Equipped
Rear PTO
Rear PTOEquipped
Type
TypeLive independent PTO (With hydraulic clutch)
Rear PTO speed
Rear PTO speed540 RPM / 2299 RPM
Mid-PTO speed
Mid-PTO speedNot Equipped
Brake type
Brake typeWet disc
Transmission type
Transmission typeHydro-Dual Speed, 3-range HST, High-Med-Low gear shift
Drive method
Drive method4 WD
Differential lock
Differential lockEquipped
Travel speed
Forward
Forward0-29.4km / h (0-18.3mph)
Reverse
Reverse0-26.5km / h (0-16.5mph)
3-Point hitch
3-Point hitchCategory I
Stabilizers
StabilizersTelescopic
Loader valve
Loader valveEquipped
Total pump output
Total pump output37.2 l / min / 9.8 gpm
Steering type
Steering typeHydrostatic Power Steering
3-Point hitch
Type
TypePosition
Lift capacity
At lift points
At lift points1700 kg / 3478 lb
24" behind lift point
24" behind lift point1200 kg / 2646 lb
Number of
Rear remote valves
Rear remote valves3 (optional)
Front
Front7-16 (AG)
Rear
Rear12.4-24 (AG)
Type
Front
FrontTurf (R3), Snow (R4), Hybrid (R14), Agriculture (R1)
Rear
RearTurf (R3), Snow (R4), Hybrid (R14), Agriculture (R1)
Ground clearance
Ground clearance342 mm / 13.5 in
Overall width
Overall width1520 mm / 59.8 in
Wheelbase
Wheelbase1955 mm / 77 in
Overall height
Overall height2435 mm / 95.9 in
Turning radius
Turning radius3800 mm / 150 in
Weight
Weight4057lbs (1840kg)
Overall length
With 3 Pt hitch
With 3 Pt hitch3335 mm / 131.3 in
Tread width
Front
Front1155 mm / 45.5 in
Rear
Rear1480 mm / 58.3 in
Foldable ROPS
Foldable ROPSEquipped
Display Screen
Display ScreenLCD
USB Port
USB PortNot Equipped
12V Port
12V PortNot Equipped
Tilt Steering
Tilt SteeringEquipped
Cruise control
Cruise controlEquipped
Headlights
HeadlightsLED w / signature
Backhoe
BackhoeLA806 (Optional)
Loader
LoaderBH92A (Optional)
K-Connect Utility Snowblower
K-Connect Utility SnowblowerNot Equipped
K-Connect Commercial Snowblower
K-Connect Commercial SnowblowerNot Equipped
K-Connect Straight Blade
K-Connect Straight Blade72" - L7270SB (Optional)
K-Connect Commercial V-Blade
K-Connect Commercial V-BladeNot Equipped
K-Connect Sweeper
K-Connect SweeperNot Equipped
K-Connect Debris Blower
K-Connect Debris BlowerNot Equipped

Downloads

L70 Series
L70 Performance Matched Attachments Brochure
Operators Manual - L70 Series
