Features

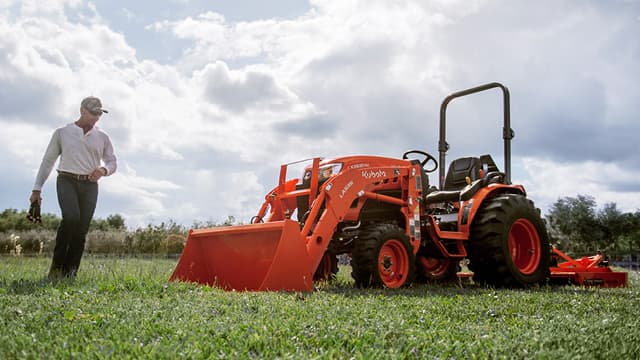

Loader with optional swift-tach & self levelling
The Mechanical Self-Levelling option allows the LX Series’ front loader to operate with additional precision while the optional Swift-Tach kit allows you to attach or detach the loader even more quickly.

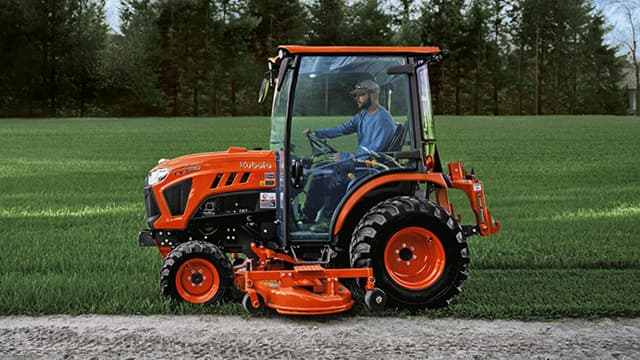

Deluxe Cab
The factory-installed cab is packed with premium features like our standard heater and air conditioner. A new seat with deeper suspension keeps you comfortable and supported as you get jobs done while the standard LED work lights and front and rear wiper and defogger provide you with optimal visibility.

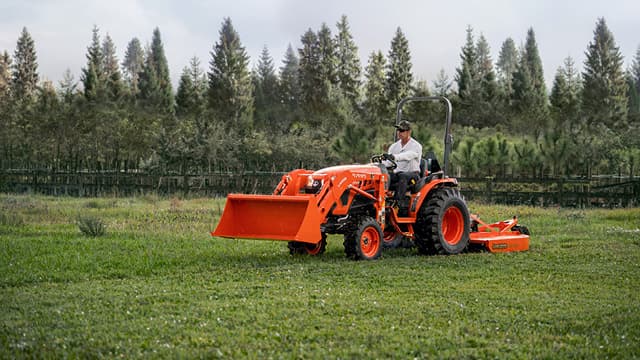

Powerful Kubota diesel engine
The LX2610 comes with a renowned and proven 3-cylinder Kubota diesel engine. The LX3310 model features a powerful and efficient 4-cylinder Turbo, Common Rail System Kubota diesel engine. The all-new LX Series features both Open Station and Cab options and brings you great fuel economy, lower emissions as well as a high level of power, torque and performance in Canadian weather.

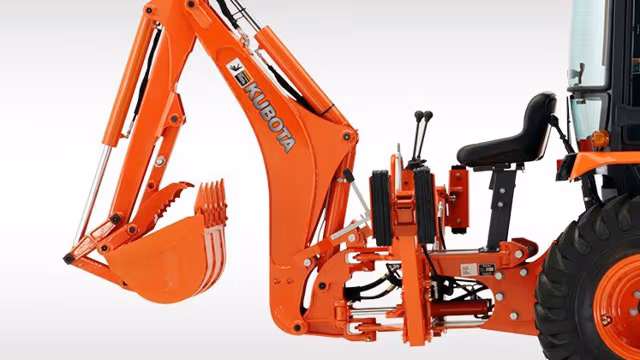

BH77 Backhoe
The BH77 is a powerful, smooth operating backhoe, with large digging depths, and comes equipped with bucket compatibility.

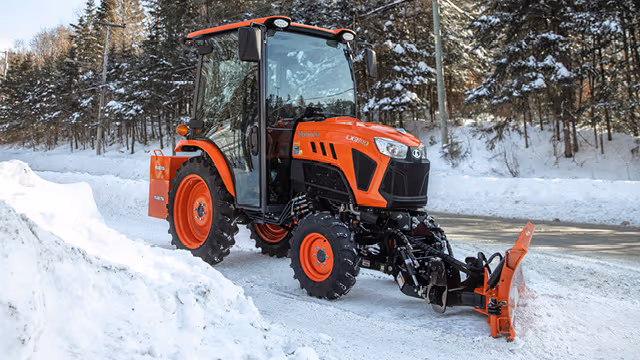

4 point hitch & K-Connect
The 4-Point Hitch allows you to pick up front attachments and the K-Connect lets you engage and disengage the front Power Take-Off (PTO) easily.

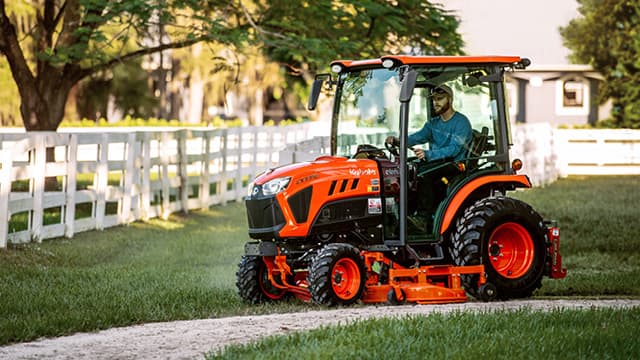

60" & 72" mower options
Choose from a variety of reliable Kubota mid mower decks for quick quality cuts on the yard.

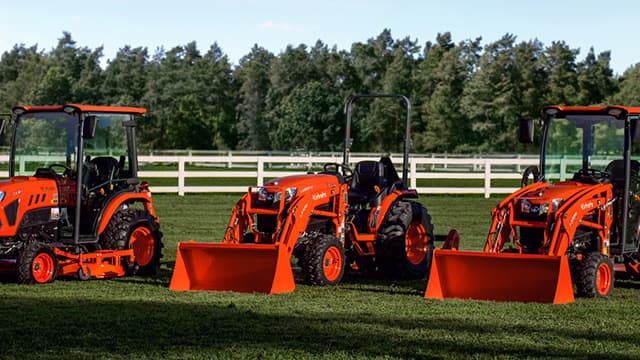

Affordable special utility model
Enjoy value and quality performance with the LX2610SU variant. This model packs impressive performance, larger tire options, high front loader and 3-pt hitch lifting capacity.

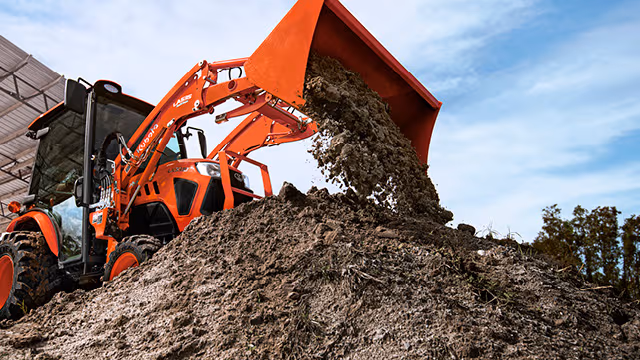

Exclusive Goodyear R14 tires
Experience grippy traction on snow, ice, turf or mud with these high-quality tires.
Specs
- Model
- Model name
- LX2610
- Engine
- Model
- D1305-E4-D36-R
- Type
- E-TVCS, liquid cooled, 3-cylinder diese
- Air pre-cleaner
- 4.5 inch Dual paper element
- Bore
- 3.1 in / 78 mm
- Stroke
- 3.5 in / 88 mm
- Cooling system
- Pressurized radiator
- Lubrication
- Forced lubrication
- Make
- D1305-E4-D36-R
- Radiator fan
- Radial air flow
- Rated engine speed
- 2500 rpm / 2500 rpm
- Engine gross horsepower @ rpm
- 24.8 HP / 18.5 kW
- PTO horsepower
- 19.5 HP / 14.5 kW
- Displacement
- 77 cu. in. / 1261 cc
- Fuel tank capacity
- 7.1 gal / 27 l
- Power take off (PTO)
- Type
- Independent
- Rear
- PTO/engine speed
- 540 rpm / 540 rpm
- Mid
- Rated engine speed
- 2500 rpm / 2500 rpm
- Drive train/transmission
- Clutch
- N/A
- Transmission type
- HST (3 ranges)
- Differential lock
- Standard
- Brake type
- Multi-plate wet disc
- Hydraulic system
- Control system
- Position control valve
- 3-Point hitch
- Category I
- Type
- Open center
- Total pump output
- 8.7 gpm / 33.1 l/min
- Pump type
- Dual pump
- Hydraulic outlet
- Rear outlet
- Steering type
- Hydraulic power steering
- Lift capacity
- 24" behind lift point
- 1676 lb / 760 kg
- At lift points
- 2139 lb / 970 kg
- Chassis, axle and brakes
- Final drive
- Spur gear
- Dimensions and weight
- Ground clearance
- 14.6 in / 370 mm
- Overall height
- 88.4 in / 2245 mm
- Wheelbase
- 65.6 in / 1666 mm
- Weight
- 1830 lb / 830 kg
- Overall length
- Without 3 Pt hitch
- 101.8 in / 2585 mm
- Overall width
- (min. tread)
- 53.7 in / 1365 mm
- Standard tire size
- Front R1
- 44902
- Front R4
- 23x8.50-14 / 25x8.50-14
- Front R14
- 23x8.50-14 / 25x8.50-14
- Rear R1
- 12.4-16
- Rear R4
- 12.4-16 / 15.19.5
- Rear R14
- 14-17.5 / 15-19.5
- Turning radius
- With brake
- 6.9 ft / 2.1 m
- Fluid capacities
- Cooling system capacity
- 4.5 qt / 4.3 l
- Engine lubricant oil capacity
- 4.2 qt / 4 l
- Transmission oil capacity
- 4 gal / 15 l
- Fuel system
- Fuel type
- diesel
- Traveling speed
- Forward (R1)
- 11.2 mph / 18 km/h
- Reverse (R1)
- 8.4 mph / 13.5 km/h
- Other
- Features
- Cruise control (Multi-stage notch), Tilt-steering, Deluxe seat with arm rest, Parallel link with dam
