M7-174

Agriculture Tractors

Starting at $249,073
  • Warranty 6 year

Features

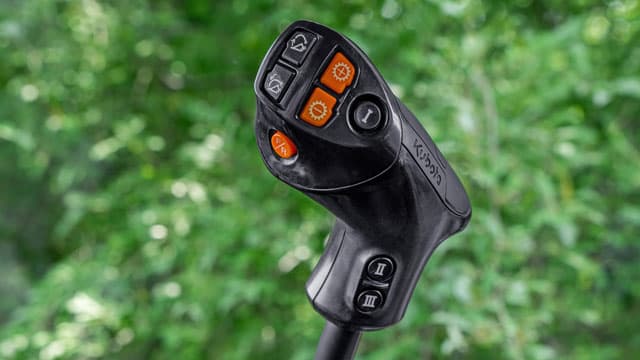

New Loader Joystick

Front loader operations are simplified with the new mechanical control joystick that’s also ergonomically designed for operator comfort. It’s equipped with shuttle shift and range gear shift buttons so you won’t need to frequently change your grip between the joystick, steering wheel, and shift lever.

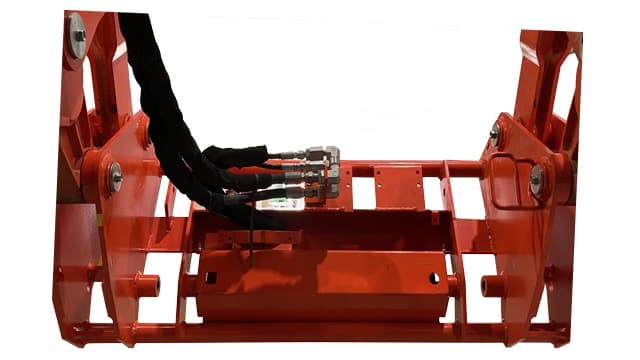

Fast Implement Attachment and Detachment

Reduce time and effort when attaching front-end implements. The optional hydraulic Euro Attachment Lock lets you change your front attachments such as bucket, bale spear or pallet fork while remaining seated in the cab.

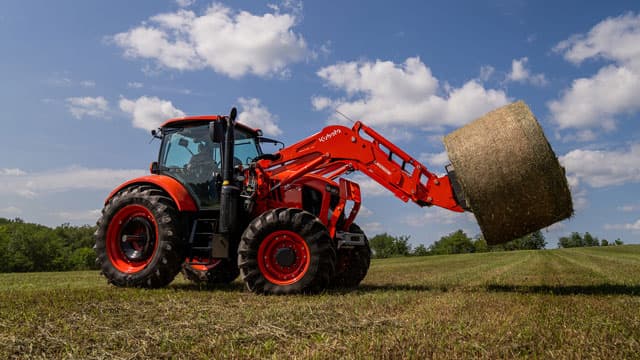

Greater Durability, Better Maintainability

All pin joints feature a new, highly durable bushing that improves wear resistance. This new bushing also requires less frequent lubrication—just once every 30 hours rather than the industry standard of 10 hours—thereby improving durability and reducing maintenance costs.

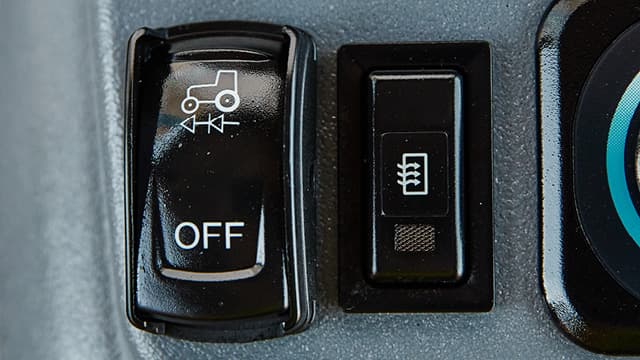

Xpress Restart

Directly control the main clutch by simply pressing the brake pedals. The tractor can be stopped without clutch pedal usage for maximum convenience and productivity.

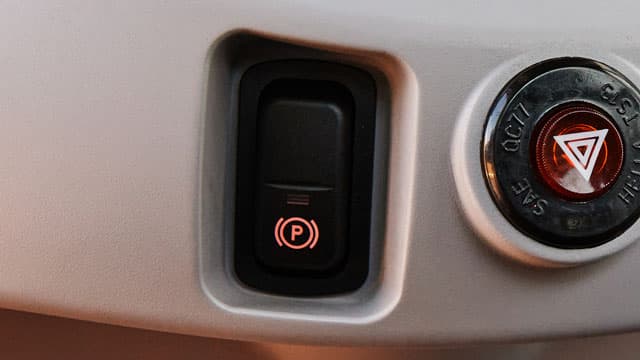

Parking Brake Switch

Minimize fatigue without physical hand brake engagement with the press of the parking brake switch. It automatically engages when you leave your seat while the engine is still running, or when the engine is turned off. This feature is included on all Premium KVT models.

Multi-Speed Steering Control (MSSC)

Reduce fatigue and improve productivity by setting the steering responsiveness per rotation of the steering wheel. Make your steering more aggressive to increase maneuverability when working in tight spaces and doing loader work.

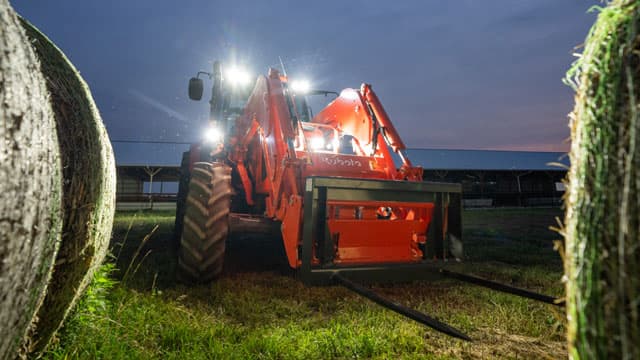

LED Work Lights

Powerful LED lights ensure excellent visibility when working early in the morning or late at night. Included on all Premium Powershift and KVT models.

Improved Settings Control

Subtle operation settings can improve performance while the following settings can be adjusted through the K-minitor: shuttle modulation, PTO modulation, KVT sensitivity, cruise control, valve swap function, and custom start-up gear setting.

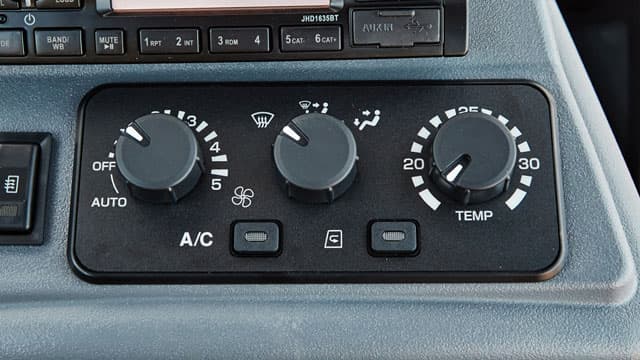

Automatic HVAC

Whether it’s a hot summer day or freezing cold outside, set your desired temperature inside the cabin to work comfortably. This is standard on Premium Powershift and KVT models.

Specs

Model
Model name
M7-174
Engine
Model
V6108-CR-TIER4
Type
Direct Injection, with Intercooler turbocharger, water-cooled 4 cycle diesel engine
Bore
4.65 in / 118 mm
Stroke
5.51 in / 140 mm
Rated engine speed
2100 rpm / 2100 rpm
Engine gross horsepower @ rpm
168 HP / 125.28 kW
PTO horsepower
140 HP / 104.4 kW
Displacement
374 cu. in. / 6124 cc
Boost power
5 HP / 5 HP
Alternator
200 A / 200 A
Fuel tank capacity
87 gal / 330 l
Number of
Cylinders
4
Fuel system
Fuel type
Diesel
Electrical
Battery
1400 A / 1400 A
Fluid capacities
DEF tank capacity
10 gal / 38 l
Drive train/transmission
Clutch type
Main clutch
Hydraulic multi-plate wet disc
Main gear shift
6-speed Powershift, CVT
Max. traveling speed
31.2 mph / 50 km/h
Range gear shift
5-speed synchronized (GST), CVT
Shuttle
Electro-hydraulic shuttle
Transmission type
Semi-Powershift, CVT
Number of speeds
Forward
30
Reverse
15
Number of speeds (optional)
Creep (forward)
54
Creep (reverse)
27
Hydraulic system
Control system
Electronic draft control / Lower link sensing
3-Point hitch
Category 3 / 3N
Pump capacity
29 gpm / 110 l/min
Type
Closed center, load sensing
Remote valves
Mechanical (Deluxe), Electronic (Premium) valve
Number of
Remote valves
Maximum 4 (Deluxe) 5 (Premium) valves
Lift capacity
At 24 in. behind lift point OECD
11797 lb / 5350 kg
Power take off (PTO)
Rear
PTO/engine speed
540 rpm / 540 rpm
Front
PTO/engine speed
1000 rpm / 1000 rpm
Chassis, axle and brakes
Rear axle type
Flanged axle or 110" bar axle
Tires
Standard
Front
14.9 R28
Rear
18.4 R38
Dimensions and weight
Overall height
119 in / 3030 mm
Overall length
188 in / 4770 mm
Overall width
98.4 in / 2500 mm
Wheelbase
107 in / 2720 mm
Shipping weight
14546 lb / 6598 kg
