R430

Wheel Loaders

  • Warranty 2 year

Features

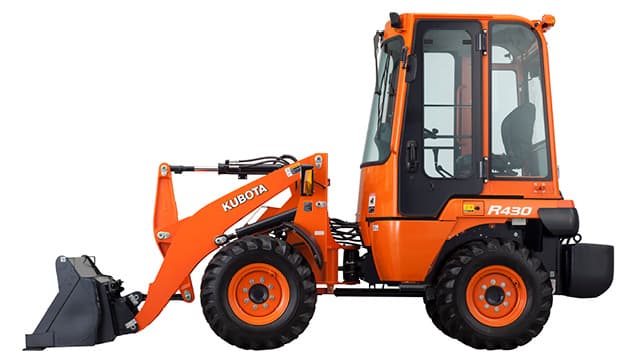

Articulation and frame oscillation

Our wheel loaders are most often operated in heavy terrain and we include the features for top performance. Articulation allows the rear tires to follow the same track path as the front tires for greater maneuverability and control of the loader. Rear frame oscillation is intentionally chosen over rear axle oscillation for superior workability in uneven ground conditions.

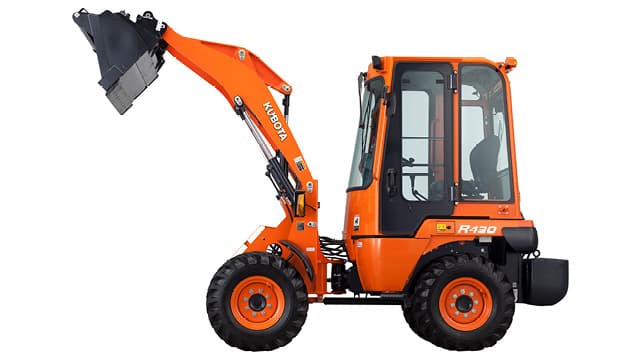

Hybrid link system

The well balanced cylinder position of the Kubota Z link system combines the advantages of both Z link and parallel link systems. You get strong bucket force when excavating and grading, and a lift path almost parallel to the ground for superior reach and lifting.

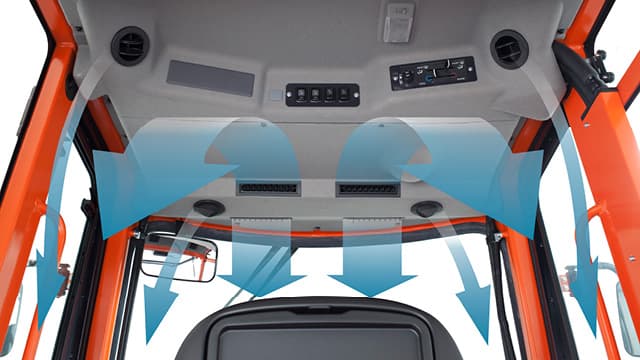

Comfortable work station

Comfort is the key to operator efficiency. That’s why the R430 offers a supremely comfortable cab for the operator. From the wide entry and ample leg room to the fully adjustable suspension seat, every detail is designed to reduce stress and fatigue and enhance comfort and operability. The 360° view out the front, sides, and rear lessen the risk of damage in tight work areas, further reducing operator stress. The cab is mounted on rubber pads to minimize sounds and vibrations and maximize ease and comfort. Heat and Air Conditioning are standard on cab models.

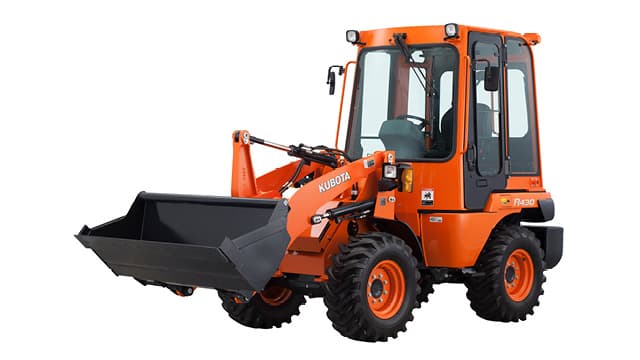

Limited slip differential

Limited slip differential Mud, sand, snow, and other challenging terrain are no problem at all for the R430, thanks to its 4-wheel drive and limited slip differential. When one front wheel slips on loose or soft terrain, power is transferred to the opposite wheel, restoring traction to let you power through to firm ground.

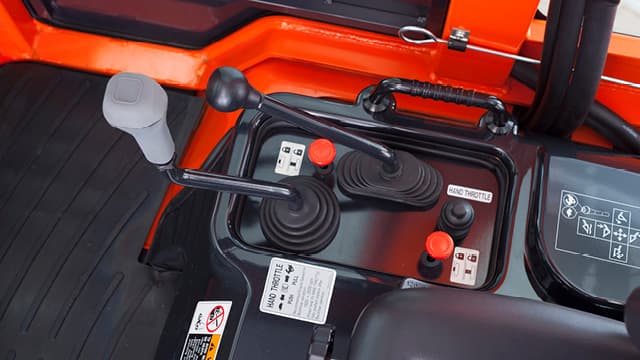

Load sensing transmission

As load conditions change, so do the R430’s speed and torque, automatically shifting from high speed/low torque to low speed/high torque. A touch of a button reduces the maximum travel speed while maintaining full auxiliary hydraulic power.

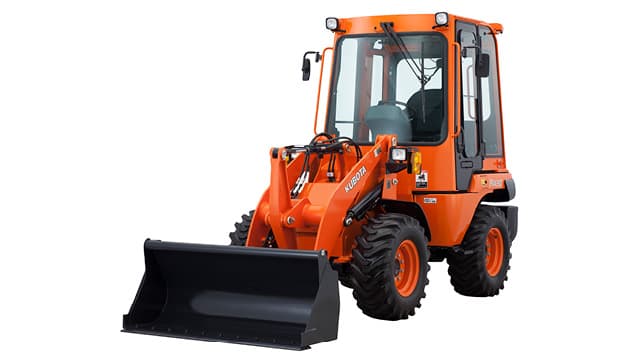

Hydraulic coupler option

Quickly and conveniently exchange attachments to satisfy the needs of any job. You can choose the hydraulic coupler option so you don’t ever have to get out of the cab when changing attachments.

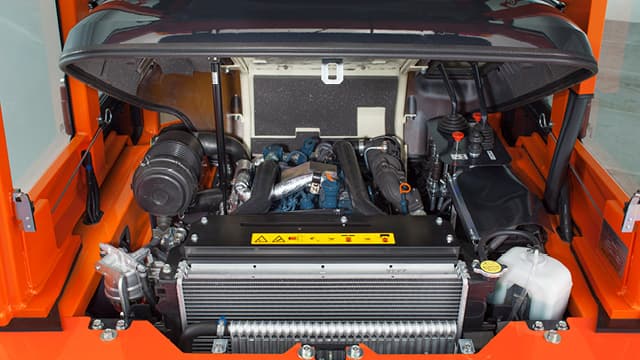

Powerful Kubota engine

The new R430’s powerful engine produces 47.6 horsepower, a remarkable 20% increase over the R420’s 39.2 horsepower. You’ll appreciate that extra muscle when accelerating, pushing, and climbing hills.

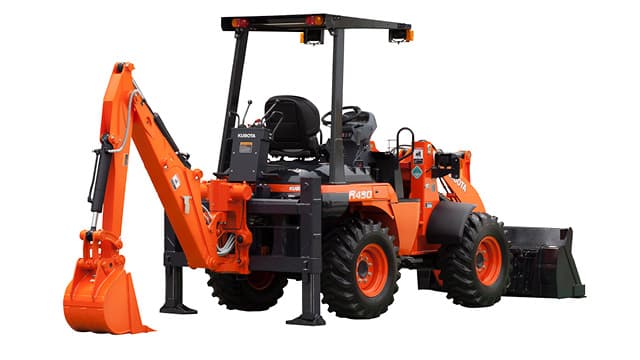

Backhoe option

Kubota’s rugged rear backhoe attachment expands the R430’s versatility. With a digging depth of 108.3” (2750 mm), this rear backhoe is ideal for compact trenching tasks.

Specs

Model
Model name
R430
Type
Canopy
Engine
Rated engine speed
2600 rpm / 2600 rpm
Engine gross horsepower @ rpm
47.6 HP / 35.5 kW
Engine net horsepower @ rpm
44.5 HP / 33.2 kW
Displacement
111 cu. in. / 1826 cc
Emission certification
Tier 4
Model name
D1803-CR-TIE4-WL5
Dimensions and weight
Ground clearance
10.8 in / 280 mm
Overall height
99 in / 2515 mm
Overall length
172 in / 4355 mm
Overall width
59 in / 1520 mm
Weight
7583 lb / 3440 kg
Drive train/transmission
Type
Hydrostatic transmission
Travel speed
Low
3 mph / 4.8 km/h
High
12.4 mph / 20 km/h
Fluid capacities
Fuel tank capacity
14.3 gal / 54 l
Hydraulic system capacity
15.3 gal / 58 l
Hydraulic reservoir
11.1 gal / 42 l
Drive system
Maximum traction force
5485 lbf / 24.4 kgf
Tire size
12.5 / 70-16-8PR
Front/Rear axle traction lock
Limited slip differential
Angle of articulation (each way)
40 deg / 40 deg
Angle of rear frame oscillation
8 deg / 8 deg
Loader clearance circle
145 in / 3695 mm
Turning radius
Track circle
121 in / 3085 mm
Auxiliary circuit
Auxiliary hydraulic flow
11.1 gpm / 42.1 l/min
Auxiliary hydraulic pressure
2697 psi / 18.6 MPa
Chassis, axle and brakes
Brakes
Service
Enclosed wet disc
Parking
Spring applied hydraulic released wet disc
Lifting specifications
Tipping load (straight)
With bucket
5335 lb / 2420 kg
Tipping load (full turn)
With bucket
4596 lb / 2085 kg
With pallet forks
3009 lb / 1365 kg
Rated operating capacity (SAE)
With bucket
2298 lb / 1042 kg
With pallet forks
1504 lb / 682 kg
Operational Specifications
Standard bucket capacity
0.5 yd3 / 0.38 m3
Breakout force
5215 lbf / 23.2 kgf
Lifting capacity
3687 lbf / 16.4 kgf
Loader
Raise
4.4 s / 4.4 s
Lower
3.3 s / 3.3 s
