Features
New VHT-X HD transmission (high durability)
Engineered with a new shoe-type HST design, the VHT-X HD transmission is built for lasting performance in demanding conditions. Its reinforced construction reduces wear over time, providing greater durability for repeated commercial use like snow removal, towing, and hauling.

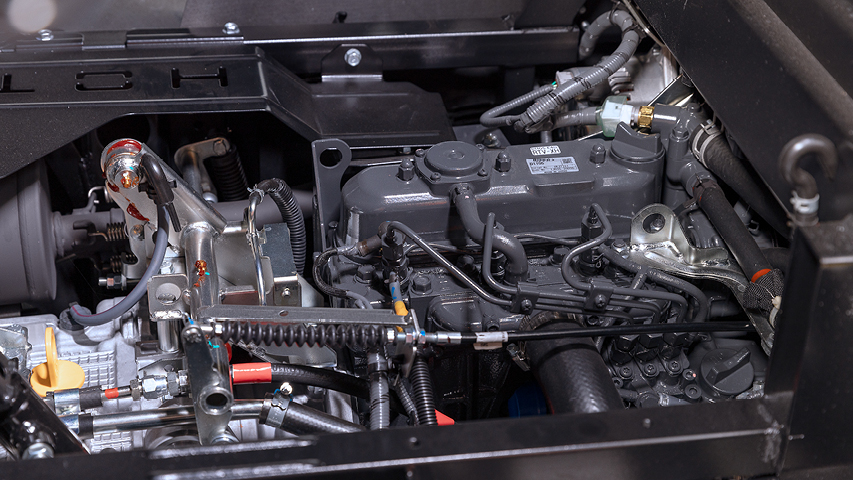

Powerful and reliable Kubota diesel engine
The RTV-X CAB wields the strength to do any job, powered by a 3-cylinder Kubota diesel engine outputting 23.3 HP and 51.4 ft-lbs of torque. Enjoy a smooth, comfortable ride with the unrivalled strength and reliability you expect from Kubota.
Multi-Disk Wet Brakes for Increased Durability
The RTV-X utilizes multi-disk wet brakes for increased durability and improved performance in harsh conditions. The brakes are sealed from the outdoor elements eliminating premature wear caused by mud, dust and debris, so your RTV-X can keep working longer and harder.

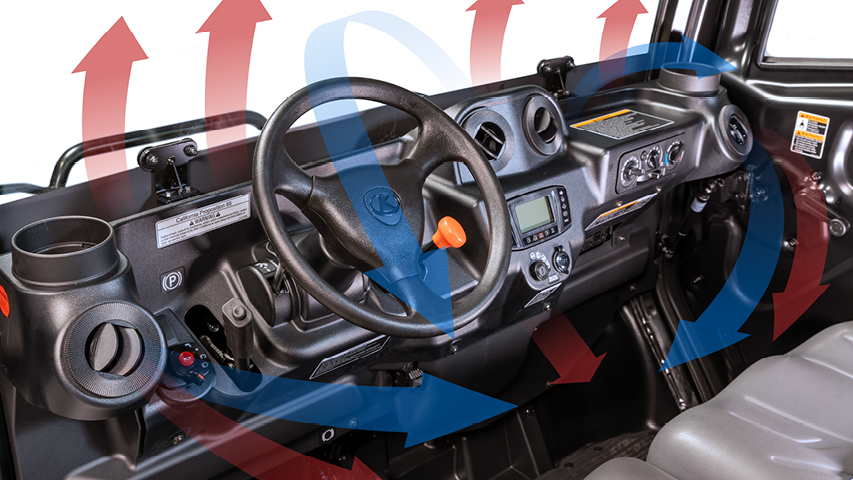

"Fully loaded automotive-grade cab

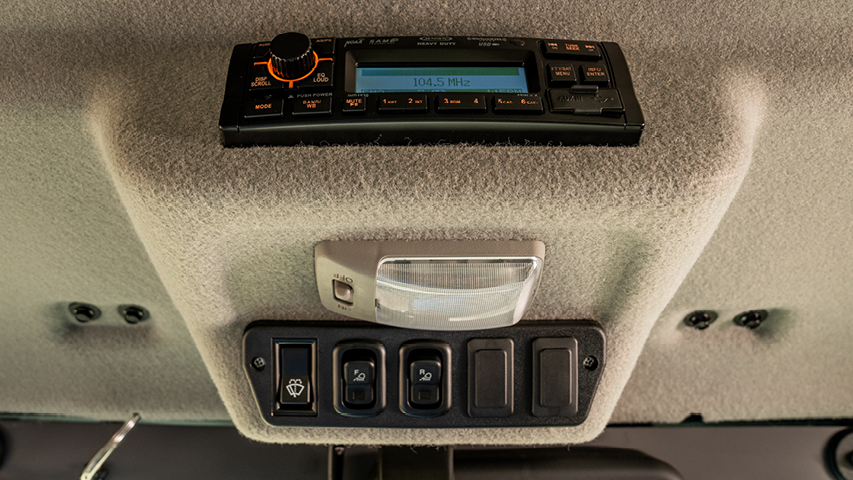

From the moment you hear the satisfying door click, you’ll notice the quality unibody fit and finish that has all the bells and whistles you need, featuring a windshield wiper and washer, automotive grade roll up windows and an LCD meter panel. It’s also radio ready with integrated speakers and antenna. The factory-equipped heat and AC cab is engineered and tested to keep you comfortable in any Canadian climate. When the cold air is blowing and snow is flying, you can count on the defrosters to keep a clear view on the path ahead.

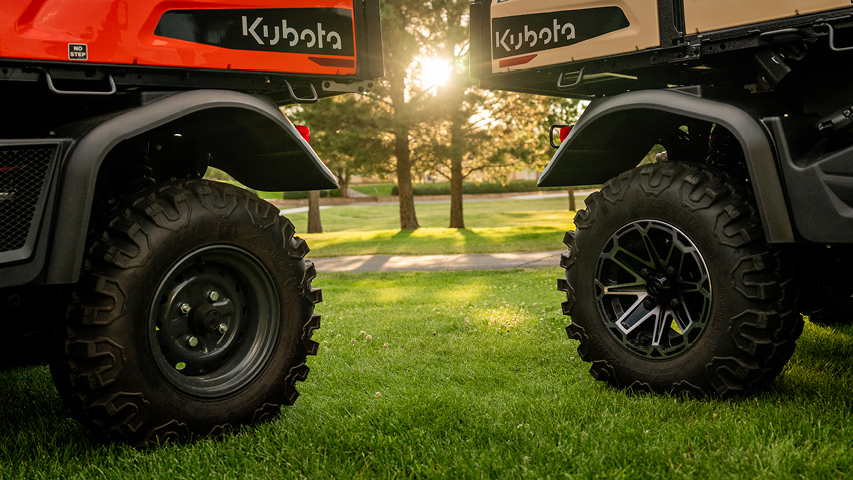

Strong, durable HDMP tires with steel rims
Don’t let any terrain hold you back, thanks to the new heavy duty multi-purpose tires. As good on loose soil and mud as it is on solid ground, these tires provide essential traction - plus they’re gentle on turf. Elevate the appearance of your RTV-X CAB with optional black alloy wheels.

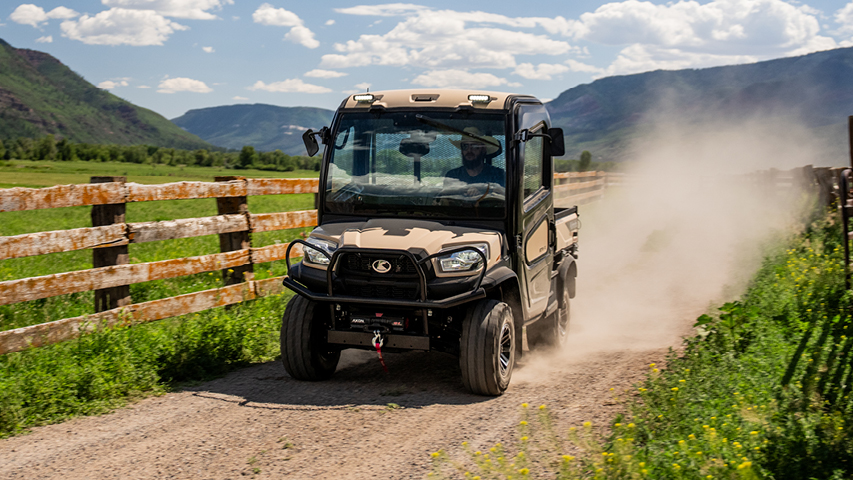

Ruggedly redesigned exterior
The RTV-X’s redesigned exterior styling incorporates LED low beam and high beam headlights, allowing you to see more in foggy or low light conditions. The HD model is available in Kubota’s signature Orange finish.

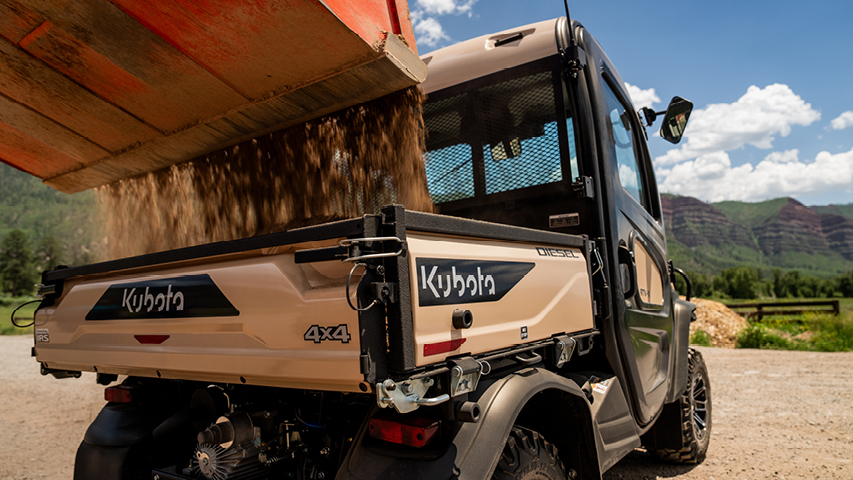

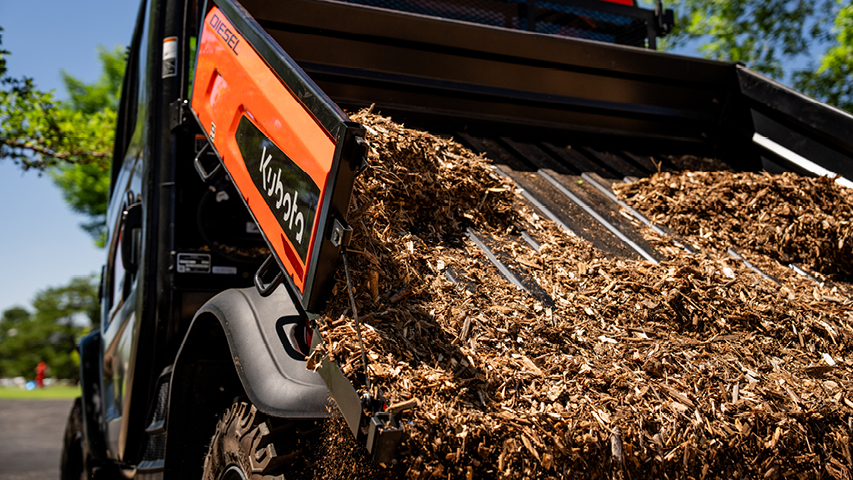

Easy access driver’s seat cargo box lift
Dump your cargo from the comfort of the driver’s seat with the flick of a lever. The powerful hydraulic-lift cargo box will take care of the rest, leaving you with more time and energy to tackle other tasks. Just dump and go!

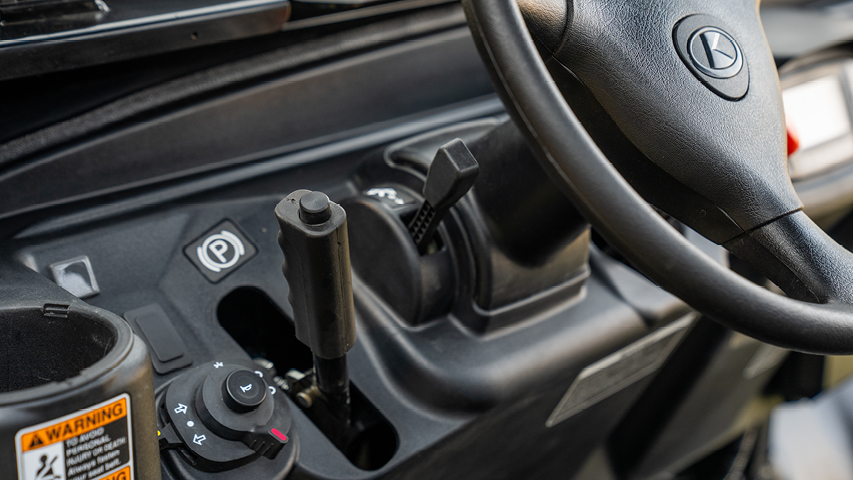

Intuitive, easy operations
The RTV-X CAB boasts a ton of features designed to make operations as smooth and easy as possible, such as responsive hydrostatic power steering for control on any terrain, tilt-adjustable steering wheel for optimal driving comfort, one-pedal operation for a streamlined operator experience and intuitive controls which ensure you always feel in command of the situation, no matter what the job requires.

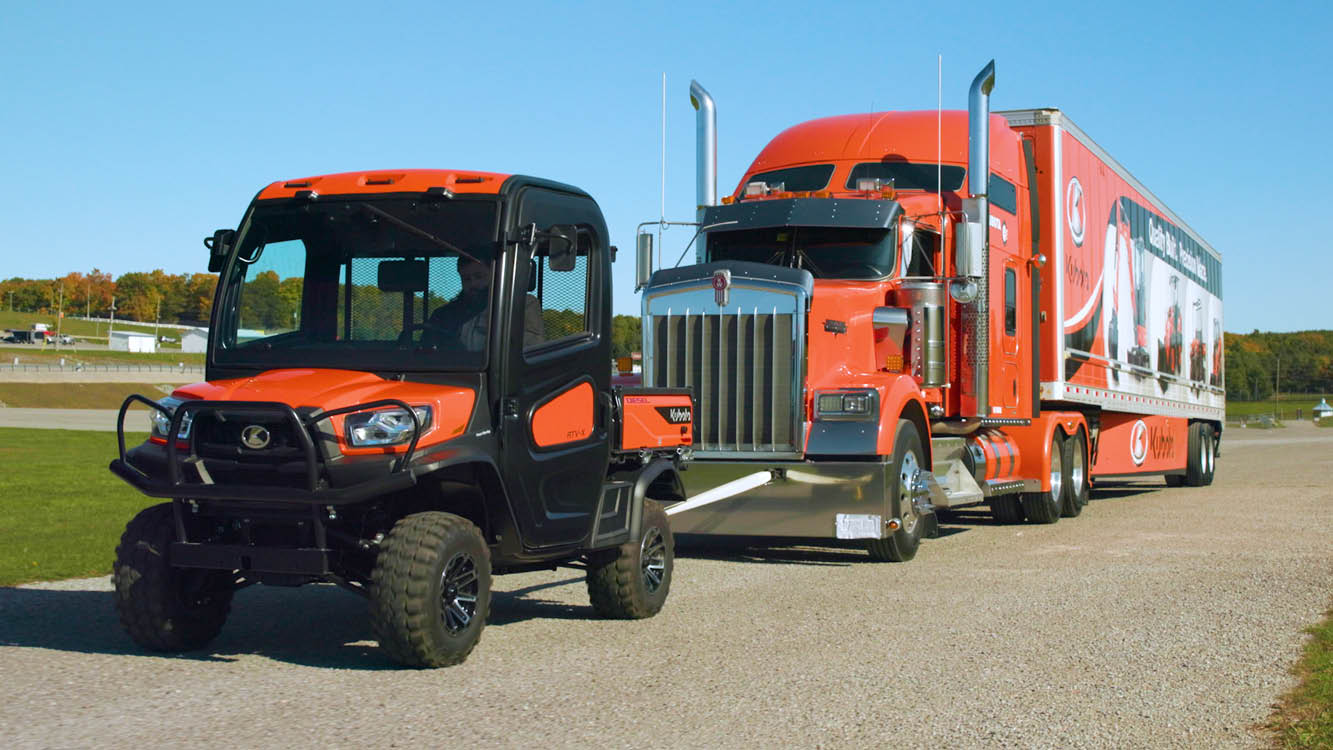

Pure utility performance
Haul your load with confidence, knowing the High Durability HST (Hydrostatic Transmission) on the RTV-X CAB HD is strong enough to carry it and stable enough to provide a smooth ride, even when fully loaded. The 2 inch hitch receiver lets you tow up to 2,204 lbs at the rear or 650 lbs at the front, while the cargo box can haul up to 1,102 lbs.
Specs
- Model
- Model name
- RTV-X Cab Premium
- Body colour
- Kubota Orange, Camo, Desert Sand
- Engine
- Type
- 3-cylinders, 4-cycle, diesel, OHV
- Cooling system
- Liquid
- Make
- KUBOTA D1105-E4-UV
- Displacement
- 68.5 cu. in. / 1123 cc
- Engine gross power
- 23.3 HP / 17.37 kW
- Drive train/transmission
- Max. traveling speed
- 25 mph / 40 km/h
- Differential lock - Front axle
- Limited-slip differential
- Differential lock - Rear axle
- Foot operated differential lock
- Type
- Variable hydro transmission (VHT-X)
- Gear selection
- Hi-Lo range forward, neutral, reverse
- Chassis, axle and brakes
- Type of rear suspension
- Independent with coil over shock
- Steering type
- Hydrostatic power
- Type of front suspension
- Independent, Dual A-arms with adjustable spring preload
- Front suspension travel
- 8 in / 205 mm
- Rear suspension travel
- 8 in / 205 mm
- Brakes
- Parking brake
- Rear wheel, hand operated
- Front
- Wet-disc brakes
- Rear
- Wet-disc brakes
- Cargo box
- Depth
- 11.2 in / 285 mm
- Length
- 40.5 in / 1030 mm
- Width
- 57.7 in / 1465 mm
- Volume
- 15.2 cu. ft. / 0.43 m3
- Material
- Steel
- Dimensions and weight
- Overall height
- 81.9 in / 2080 mm
- Wheelbase
- 80.5 in / 2045 mm
- Weight
- 2441 lb / 1107 kg
- Turning radius
- 13.1 in / 4 mm
- Length
- 123 in / 3123 mm
- Width
- 65.4 in / 1660 mm
- Maximum towing capacity
- 1300 lb / 590 kg
- Maximum payload capacity
- 1558 lb / 707 kg
- Tread centers
- Front
- 48.8 in / 1240 mm
- Rear
- 48.8 in / 1240 mm
- Ground clearance
- Front
- 10 in / 255 mm
- Rear
- 9.9 in / 250 mm
- Electrical
- Battery
- 670 A / 670 A
- Headlights
- LED (High / Low)
- Safety equipment
- Maximum noise level at operators ear
- Seat belts
- 2-point
- Protective structure
- 2 in / 50.8 mm
- Open Station Certified
- SAE J2194 and OSHA 1928 ROPS
- Fluid capacities
- Fuel tank capacity
- 7.9 gal / 30 l
- Tires
- ATV
- Front
- 25 × 10-12, 6-ply
- Rear
- 25 × 10-12, 6-ply
- HDWS
- Front
- 25 × 10-12, 6-ply
- Rear
- 25 × 10-12, 6-ply
- Other
- Alloy wheel
- (Orange, Camo) Available, (Desert Sand) Equipped
- Hydraulic bed lift
- Equipped
- Spray-on bed liner
- Equipped
