Features

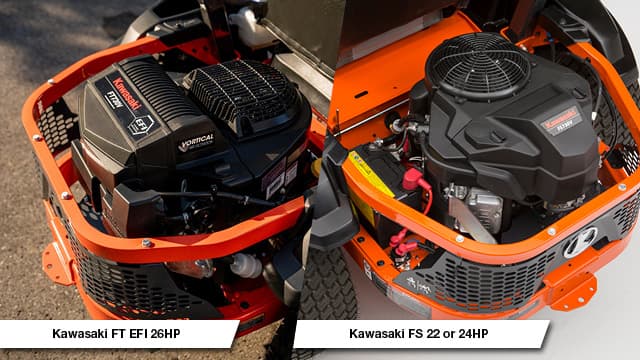

Commercial engine
The Z400 is powered by the highly market acclaimed Kawasaki FS-Series engines.
Large-diameter, wide-tread rear tires
24” diameter, 12” tread rear tires are fitted to the Z421KWT-60 and Z422KWT-60. Due to the fact that ground pressure from these tires is notably low, potential turf damage is significantly reduced.

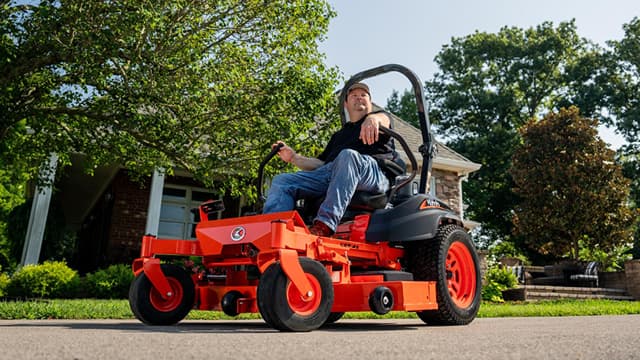

Standard suspension seat*
Fully-adjustable for desired operator comfort. This seat is capable of sliding 4 inches backwards or forwards, as well as 3 inches up and down. As a result, even prolonged operations can be undertaken in maximum comfort. *for Z412 / Z422 Models.

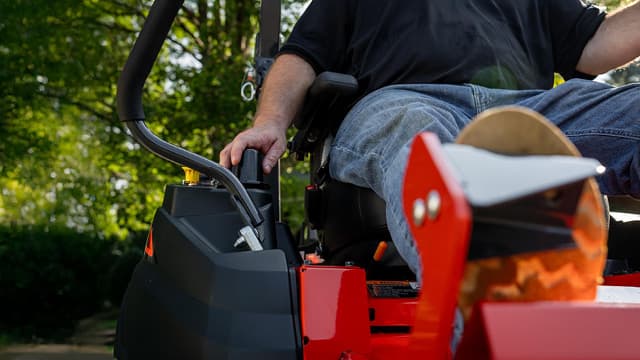

K-Lift- push & release lift & lowering deck system
Step on the mower pedal to lift the Z400 mower, select the appropriate mowing height with the dial, and step on the mower pedal once again to lower the mower to the selected height. Mowing height is, therefore, easily adjusted without having to remove or insert the pin as required by competitors’ models.
Large-capacity fuel tank
With a generous fuel tank capacity of 6.8 US gal (25.7L), the Z400 is able to continue operations for up to six hours – time enough to complete many jobs.
Maximum travel speed: 10.0 mph
The maximum forward travel speed of 10.0 mph (16.0 km/h) contributes to quickly completing the job-at-hand.
Grass catcher kit (option)
Having a generous 7-bushel (250L) capacity, the grass catcher reduces the number of stops required to discharge clippings. As a result, overall operational efficiency is enhanced.
Specs
- Model
- Model name
- Z412KW-48
- Tread
- Rear
- 39.4 in / 1000 mm
- Front
- 37.2 in / 944 mm
- Drive train/transmission
- System
- 2-HST w/Gear reduction
- Type
- Hydro-Gear® Commercial ZT3600®
- Traveling speed
- Reverse
- 5 mph / 8 km/h
- Forward
- 10 mph / 16 km/h
- Speed control
- System
- 2-hand lever
- Power take off (PTO)
- Clutch
- Electric clutch
- PTO brake
- Dry disc
- Type
- Belt drive
- Mower decks
- Model
- RCK48P-400Z
- Type
- Side discharge
- Lift system
- Mechanical / Foot pedal
- Mower deck depth
- 5 in / 127 mm
- Belt type
- Belt drive
- Mower deck thickness
- 0.135 in / 3.4 mm
- Type anti-scalp rollers
- Rigid
- Cutting width
- 48 in / 1219 mm
- Number of blades
- 3
- Cutting height
- 5 in / 127 mm
- Mounting method
- Parallel linkage
- Blade tip speed
- 18800 fpm / 5730.24 m/min
- Other
- Seat
- Deluxe seat w/3 inch stroke suspension
- Hour meter
- Standard
- Fuel gauge
- Sight window
- Engine stop system
- Key stop
- Fluid capacities
- Fuel tank capacity
- 6.8 gal / 25.7 l
- Electrical
- Generator
- 15 A / 15 A
- Battery
- null A / null A
- Engine
- Engine gross power
- 22 HP / 16.4054 kW
- Safety starting system
- Key switch
- Displacement
- 44.3 cu. in. / 726 cc
- Make
- Kawasaki
- Type
- Air cooled 2 cylinders gasoline engine
- Model
- GH7302V
- Dimensions and weight
- Weight
- With mower
- 904 lb / 410 kg
- Overall height
- Top of Open Station - folded position
- 49.8 in / 1265 mm
- Top of Open Station
- 69.8 in / 1772 mm
- Overall width
- Without mower
- 48.7 in / 1236 mm
- With mower
- 61.1 in / 1552 mm
- Wheelbase
- 49.4 in / 1255 mm
- Overall length
- 80.9 in / 2055 mm
- Chassis, axle and brakes
- Brakes
- Type
- Cog style parking lock / Foot pedal
- Tires
- Standard tire size
- Front
- 13 × 6.5 – 6
- Rear
- 24 x 9.5 -14
- Type
- Front
- Smooth pneumatic
- Rear
- Low profile tire
