Features

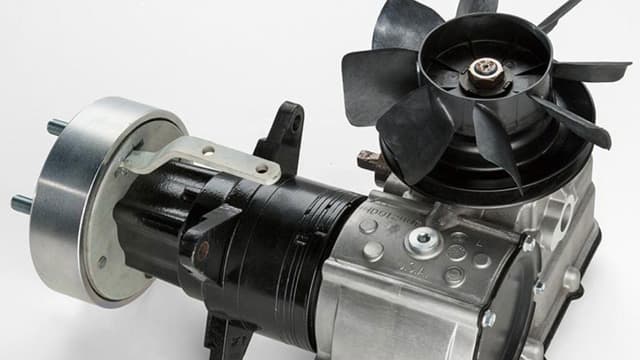

Transmission with integrated pump and motor
The Z700 Series is equipped with dual Parker ® transmissions. Designed for easy maintenance, each transmission has an integrated pump and motor for increased efficiency and simplified service. Also, each transmission has a separate oil supply for increased durability.

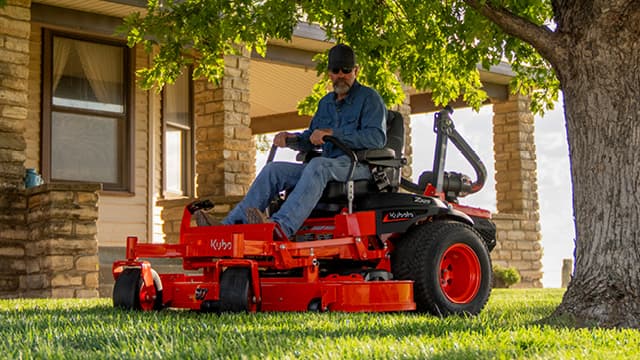

Ultimate comfort
The adjustable premium suspension seat is standard on all Z700 models. The 21.2" high back with adjustable armrests, 6" seat slide and 3" vertical travel gives the operator plenty of adjustments that could be made to get the ideal seating position.

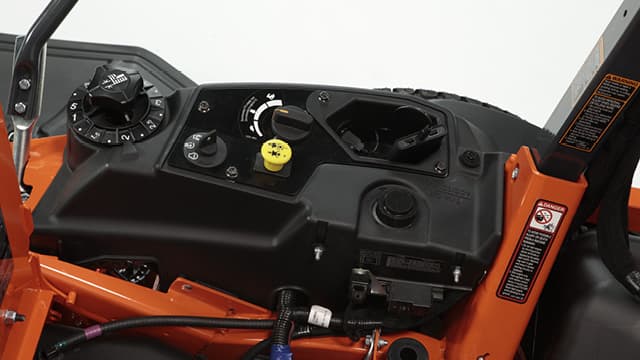

Intuitive design
All controls and indicators are neatly placed for quick, easy, user-friendly access. The EFI models have a dial throttle adjustment that is practically effortless while in the operator seat.

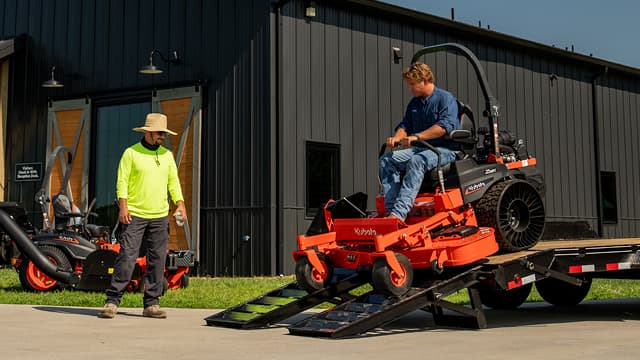

Safe and effective operation controls
Wide operator platform with foot activated parking brake and deck lift which helps ensure the operator has full control of the operation levers at all times.

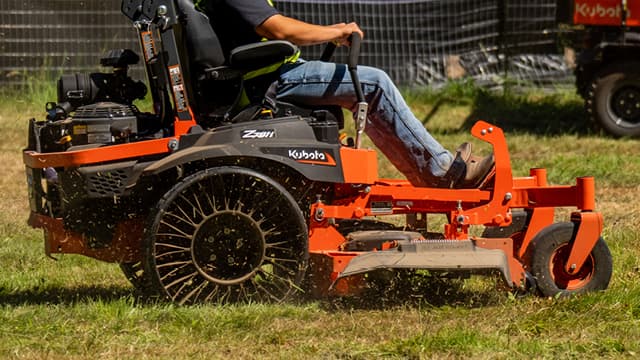

Adjustable controls
The operator levers and deck lift pedal, control levers and HST dampeners are adjustable making it comfortable for any one to run the Z700 models

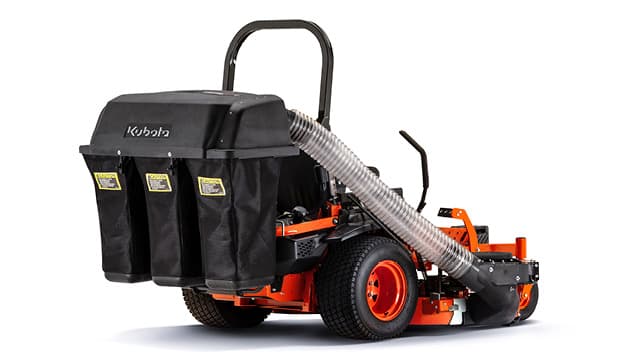

Improved grass catcher design
This new grass catcher has a new blower guard for added durability and a new latch system to give you better access for routine maintenance and cleaning.

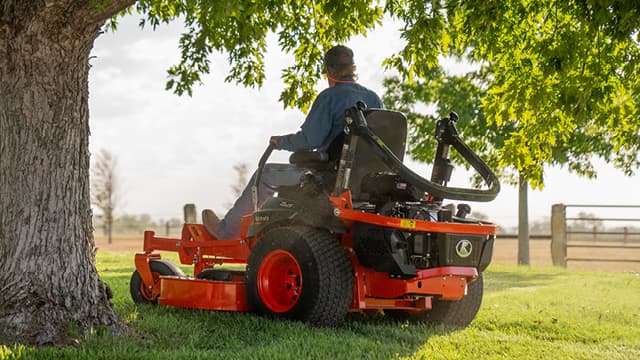

Outstanding stability
Z700 series has wide stance rear tires and heavy component positioning under the seat to create a low center of gravity and ultimate terrain hugging performance.
Specs
- Model
- Model name
- Z724XKW-2-54
- Engine
- Model
- Kawasaki ®
- Type
- Gasoline, air-cooled V-Twin
- Displacement
- 44.2 cu. in. / 726 cc
- Manufacturer
- GH735V
- Safety starting system
- Key switch
- Engine gross power
- 23.5 HP / 17.5239 kW
- Power take off (PTO)
- Type
- Belt drive
- Clutch
- Electromagnetic clutch
- PTO brake
- Dry disc
- Chassis, axle and brakes
- Parking brake
- Foot pedal
- Brakes
- Type
- Drum disks, foot applied, released
- Dimensions and weight
- Overall length
- 83.9 in / 2131 mm
- Wheelbase
- 50.9 in / 1293 mm
- Overall height
- Top of Open Station
- 70.1 in / 1780 mm
- Top of Open Station - folded position
- 48.6 in / 1235 mm
- Overall width
- With mower
- 67.3 in / 1709 mm
- Without mower
- 50.4 in / 1280 mm
- Weight
- With mower
- 1195 lb / 542 kg
- Electrical
- Battery
- null A / null A
- Generator
- 15 A / 15 A
- Tread
- Front
- 37.6 in / 954 mm
- Rear
- 40.2 in / 1021 mm
- Drive train/transmission
- Type
- Parker® Transmission **** HTG14 Transmissions
- System
- 2 HST-2 G rotor type
- Traveling speed
- Speed control
- System
- 2 hand levers
- Forward
- 11.2 mph / 18 km/h
- Reverse
- 5.6 mph / 9 km/h
- Mower decks
- Model
- RCK54P-724Z
- Lift system
- Mechanical
- Mower deck depth
- 6 in / 152.4 mm
- Belt type
- Single belt
- Mower deck thickness
- 8 in / 4.18 mm
- Type anti-scalp rollers
- Rigid
- Cutting width
- 54 in / 1372 mm
- Number of blades
- 3
- Cutting height
- 5 in / 127 mm
- Mounting method
- Parallel linkage
- Blade tip speed
- 18600 fpm / 5669.28 m/min
- Other
- Seat
- 21.2" high back seat with "Premium Adjustable Suspension", 3" vertical and 6" front to back travel
- Engine stop system
- Key stop
- Fluid capacities
- Fuel tank capacity
- 11.6 gal / 43.9 l
- Tires
- Standard tire size
- Front
- 13 × 5.0 – 6
- Rear
- 24 × 9.5 – 12
- Type
- Front
- Flat Free
