Z781KWiTW-54

Zero Turn Mowers

  • Warranty 3 years

Features

New powerful and proven EFI engines

Easy to start and maintain, these smooth-running EFI engines feature an electronic governor (E-Gov) and an advanced ECU that work together to maximize engine performance under a wide range of commercial mowing conditions. - Z751KWI & Z781KWTI Only

Transmission with integrated pump and motor

The Z700 Series is equipped with dual Parker ® transmissions. Designed for easy maintenance, each transmission has an integrated pump and motor for increased efficiency and simplified service. Also, each transmission has a separate oil supply for increased durability.

Ultimate comfort

The adjustable premium suspension seat is standard on all Z700 models. The 21.2" high back with adjustable armrests, 6" seat slide and 3" vertical travel gives the operator plenty of adjustments that could be made to get the ideal seating position.

Intuitive design

All controls and indicators are neatly placed for quick, easy, user-friendly access. The EFI models have a dial throttle adjustment that is practically effortless while in the operator seat.

Safe and effective operation controls

Wide operator platform with foot activated parking brake and deck lift which helps ensure the operator has full control of the operation levers at all times.

Adjustable controls

The operator levers and deck lift pedal, control levers and HST dampeners are adjustable making it comfortable for any one to run the Z700 models

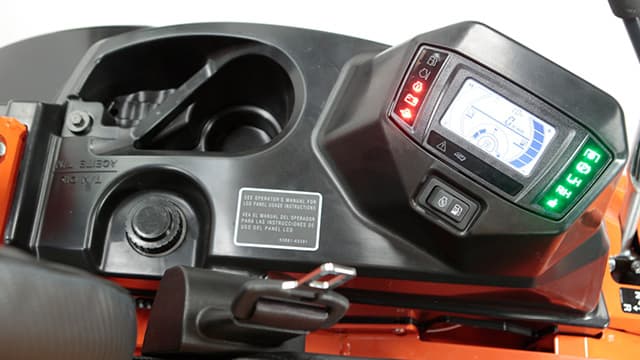

LCD meter on EFI models

A bright and easy-to-read LCD meter provides all the information you need as an operator to keep your Z700 EFI models running at optimum efficiency. - Z751KWI & Z781KWTI Only

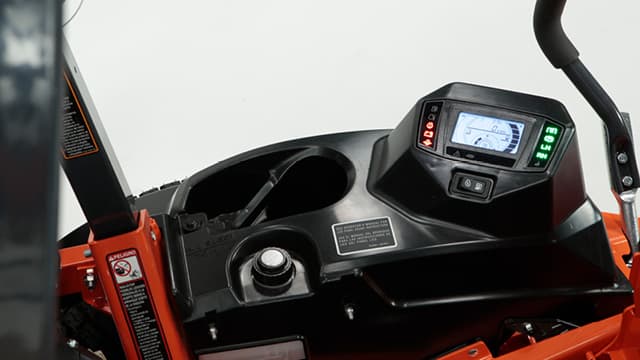

Engine load and fuel consumption feedback

The EFI Z700 models have a toggle switch allowing the operator to see either how much of the engine power is being consumed or real-time indication of current fuel consumption. - Z751KWI & Z781KWTI Only

Improved grass catcher design

This new grass catcher has a new blower guard for added durability and a new latch system to give you better access for routine maintenance and cleaning.

Outstanding stability

Z700 series has wide stance rear tires and heavy component positioning under the seat to create a low center of gravity and ultimate terrain hugging performance.

Specs

Model
Model name
Z781KWi-54
Tread
Rear
40.2 in / 1020 mm
Front
37.6 in / 954 mm
Drive train/transmission
System
2 HST-2 G rotor type
Type
Parker® Transmission **** HTG14 Transmissions
Traveling speed
Forward
11.2 mph / 18 km/h
Reverse
5.6 mph / 9 km/h
Speed control
System
2 hand levers
Power take off (PTO)
Clutch
Electromagnetic clutch
PTO brake
Dry disc
Type
Belt drive
Mower decks
Model
RCK54P-781Z
Lift system
Mechanical
Mower deck depth
6 in / 152.4 mm
Belt type
Single belt
Mower deck thickness
8 in / 4.18 mm
Type anti-scalp rollers
Rigid
Cutting width
54 in / 1372 mm
Number of blades
3
Cutting height
5.5 in / 140 mm
Mounting method
Parallel linkage
Blade tip speed
18400 fpm / 5608.32 m/min
Other
Seat
21.2" high back seat with "Premium Adjustable Suspension", 3" vertical and 6" front to back travel
Engine stop system
Key stop
Fluid capacities
Fuel tank capacity
11.6 gal / 43.9 l
Electrical
Generator
15 A / 15 A
Battery
null A / null A
Engine
Engine gross power
29.5 HP / 21.998 kW
Safety starting system
Key switch
Manufacturer
GH860V-F
Displacement
52 cu. in. / 852 cc
Type
Gasoline, air-cooled V-Twin
Model
Kawasaki ®
Dimensions and weight
Weight
With mower
1254 lb / 569 kg
Overall height
Top of Open Station - folded position
48.6 in / 1235 mm
Top of Open Station
70.1 in / 1780 mm
Overall width
Without mower
50.4 in / 1280 mm
With mower
67.3 in / 1709 mm
Wheelbase
50.9 in / 1293 mm
Overall length
83.9 in / 2131 mm
Chassis, axle and brakes
Brakes
Type
Drum disks, foot applied, released
Parking brake
Foot pedal
Tires
Standard tire size
Front
13 × 6.5 – 6
Rear
24 × 9.5 - 14
Type
Front
Flat Free
