Features

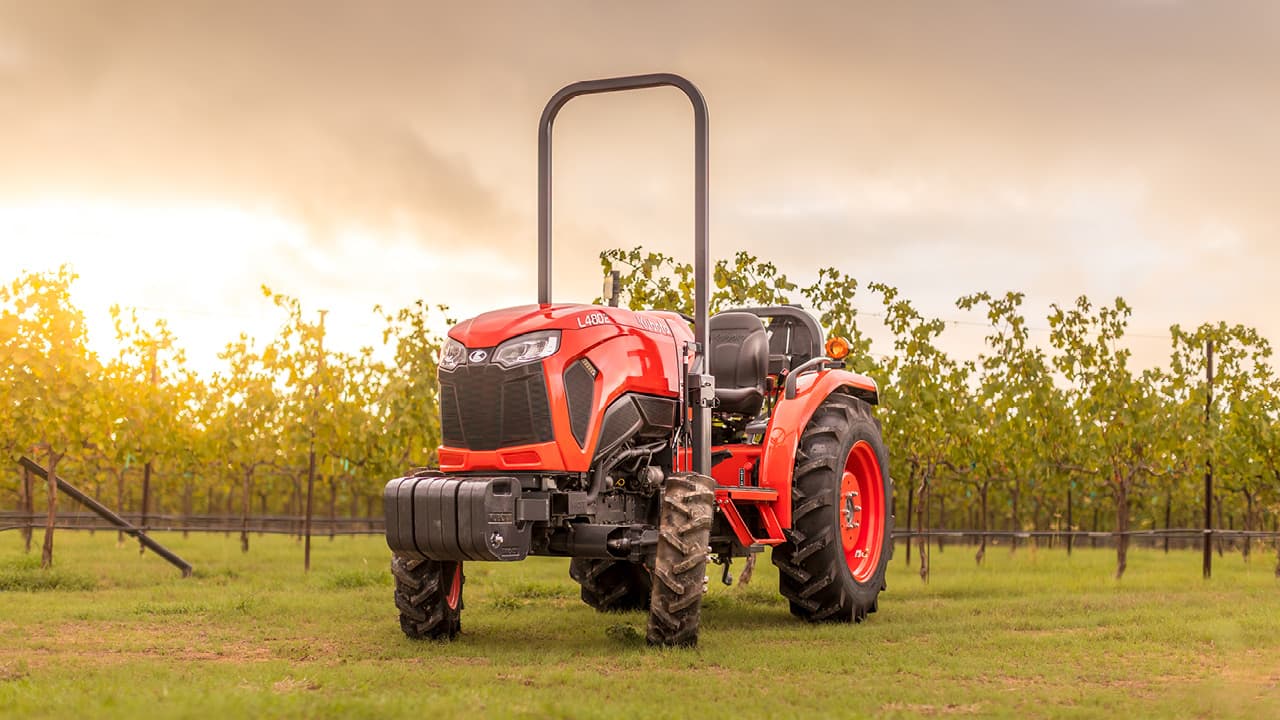

Narrow and powerful
The L02N is only 52.7” wide, specifically engineered to work in orchards, vineyards, nurseries, or anywhere else that requires a narrow tractor with L02 power and reliability.

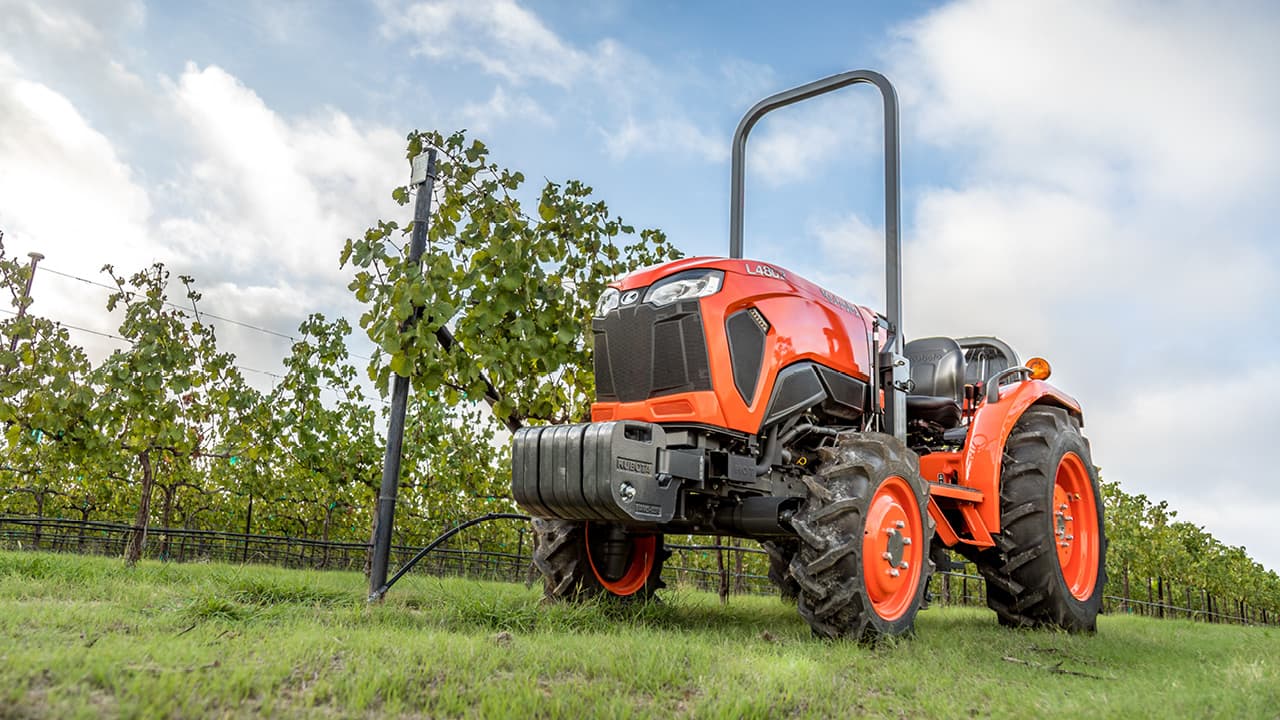

Powerful performance
With 48.4 engine horsepower and 40.5 PTO horsepower, the L02N has power in a tight package to run a wide range of attachments.

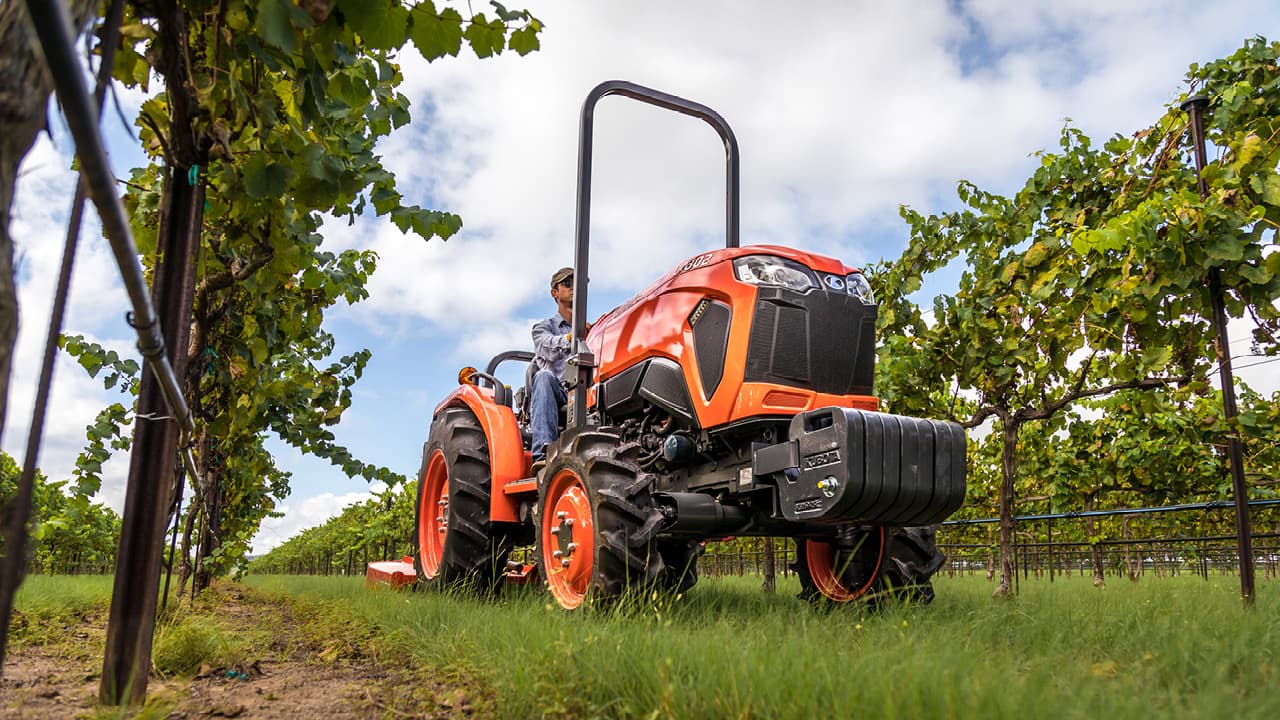

Dependable implement versatility
The Kubota L02N Series comes with a wide range of performance matched implements to take on your toughest jobs.

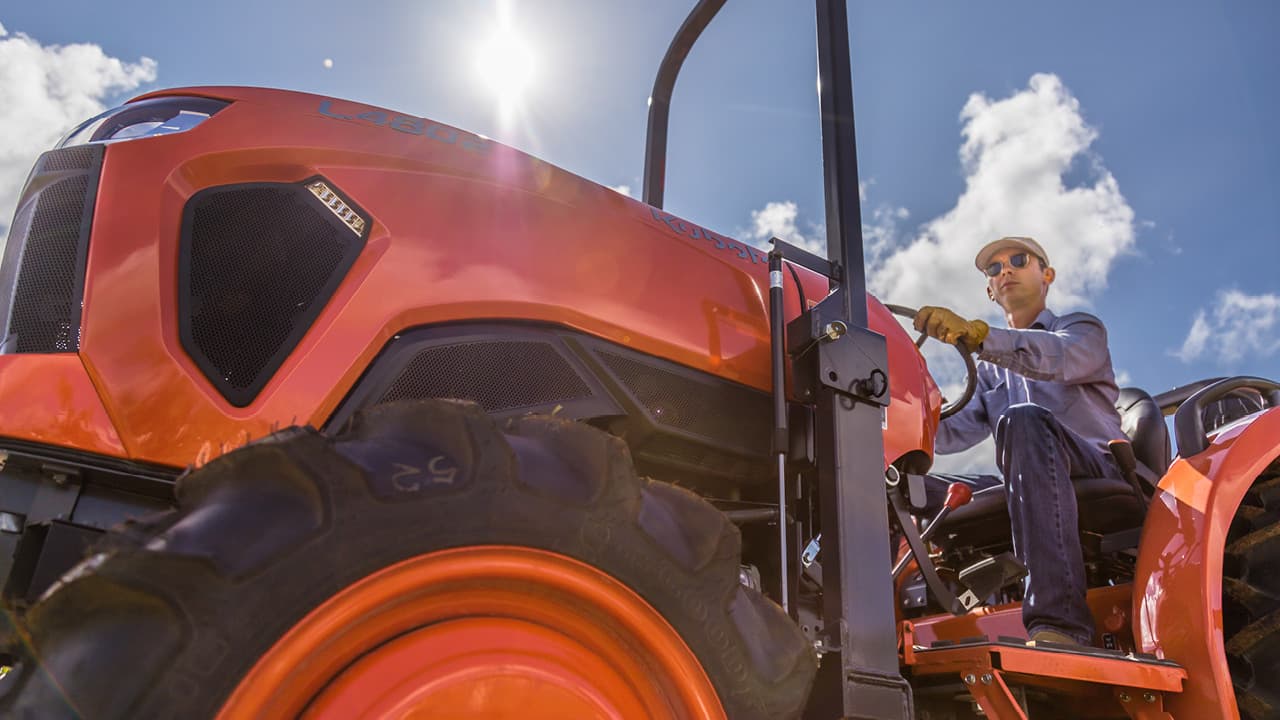

Modern styling that matters
Updated bonnet and grille keep engine and tractor protected from the elements. Ergonomically designed lever grips and steering wheel provide easier access and smooth low vibration operation. The LED work lights deliver great visibility in tough conditions.
Foldable Center ROPS
Narrow and nimble, even when storing. The Kubota L02N features a foldable center ROPS for those tight spaces with low trees, overhead obstructions and limited storage space.
Standard versatility
The L4802N Narrow model comes standard with a set of rear remote valves, making it ready for a variety of applications.

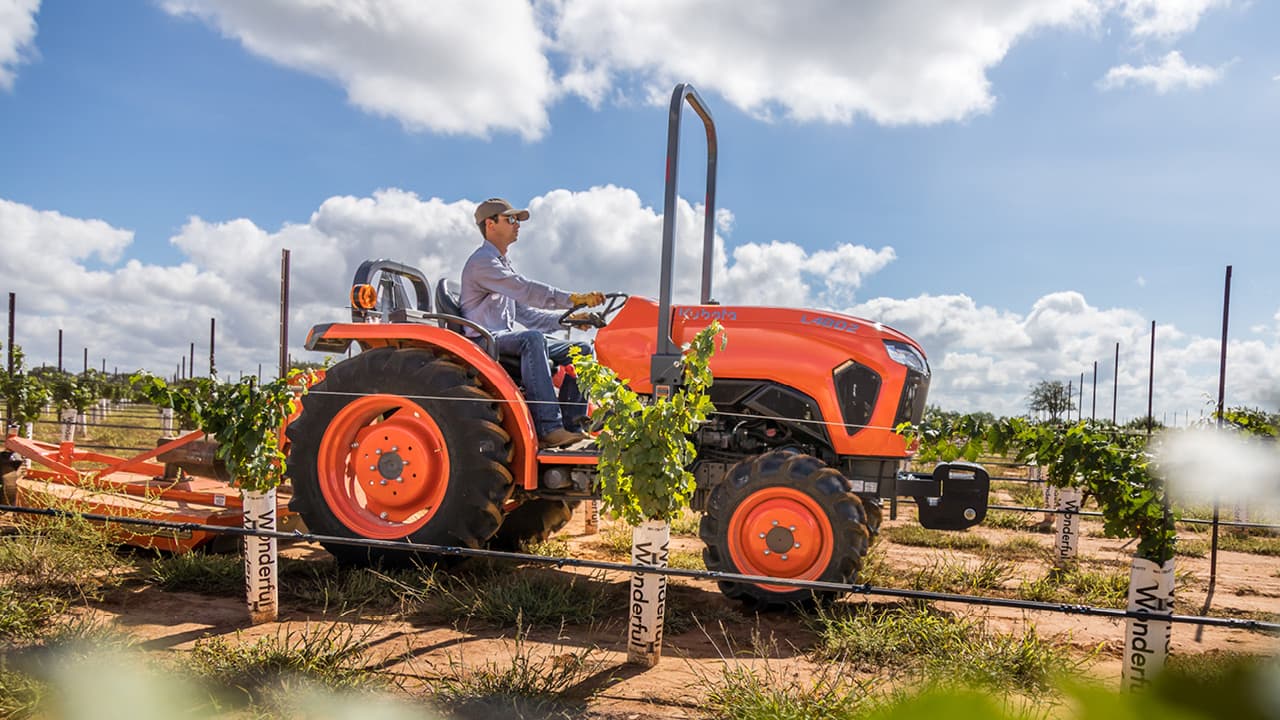

Hard-working hydraulic capacity
The L02N’s 3pt hitch pairs with a large capacity hydraulic cylinder and pump for heavy-duty lifting capacity and performance. This also enables the unit to work well with different implements and attachments to handle a variety of applications.
Specs
- Model
- Model name
- L4802N
- Power take off (PTO)
- Rated engine speed
- 2475 rpm / 2475 rpm
- Type
- Live independent PTO with hydraulic clutch
- Rear PTO
- 540
- Hydraulic system
- Lift control type
- Position control
- System pressure
- 17.7 psi / 180 kg/cm2
- Steering type
- Hydrostatic power steering
- 3-Point hitch
- Category I
- Lift capacity
- 24" behind lift point
- 2320 lb / 1053 kg
- At lift points
- 2870 lb / 1300 kg
- Pump capacity
- Main
- 7.8 gpm / 29.4 l/min
- PS
- 4.7 gpm / 17.9 l/min
- Drive train/transmission
- Brake type
- Mechanical, wet disc type
- Drive method
- 4WD
- Transmission type
- Gear-Drive Transmission & HST
- Reverse
- 8
- Number of ranges
- 16
- Forward
- 8
- Clutch
- Dry type single stage or N/A
- Dimensions and weight
- Ground clearance
- 11.6 in / 295 mm
- Wheelbase
- 72.6 in / 1845 mm
- Weight
- 3362 lb / 1525 kg
- Overall height
- Open Station
- 94.9 in / 2410 mm
- Overall length
- Without 3 Pt hitch
- 117.7 in / 2990 mm
- Overall width
- (min. tread)
- 53.7 in / 1365 mm
- AG Standard tire size
- Front
- 7.2 - 16
- Rear
- 11.2-24
- Tread width
- Front
- 41.5 in / 1055 mm
- Rear
- 41.3 in / 1050 mm
- Turning radius
- With brake
- 8.9 ft / 2.7 m
- Engine
- Alternator
- 45 A / 45 A
- Fuel tank capacity
- 13.5 gal / 51 l
- Displacement
- 148.5 cu. in. / 2434 cc
- PTO horsepower
- 40.5 HP / 30.2 kW
- Engine net horsepower @ rpm
- 46 HP / 34.3 kW
- Engine gross horsepower @ rpm
- 48.4 HP / 36.1 kW
- Rated engine speed
- 2600 rpm / 2600 rpm
- Stroke
- 4 in / 102.4 mm
- Bore
- 3.4 in / 87 mm
- Type
- Direct injection, vertical, water-cooled 4-cycle diesel
- Number of
- Cylinders
- 4
- Electrical
- Battery
- 580 A / 580 A
- Fuel system
- Fuel type
- diesel
- Traveling speeds (With standard tires)
- Forward
- 12.9 mph / 20.8 km/h
- Reverse
- 12.4 mph / 20 km/h
