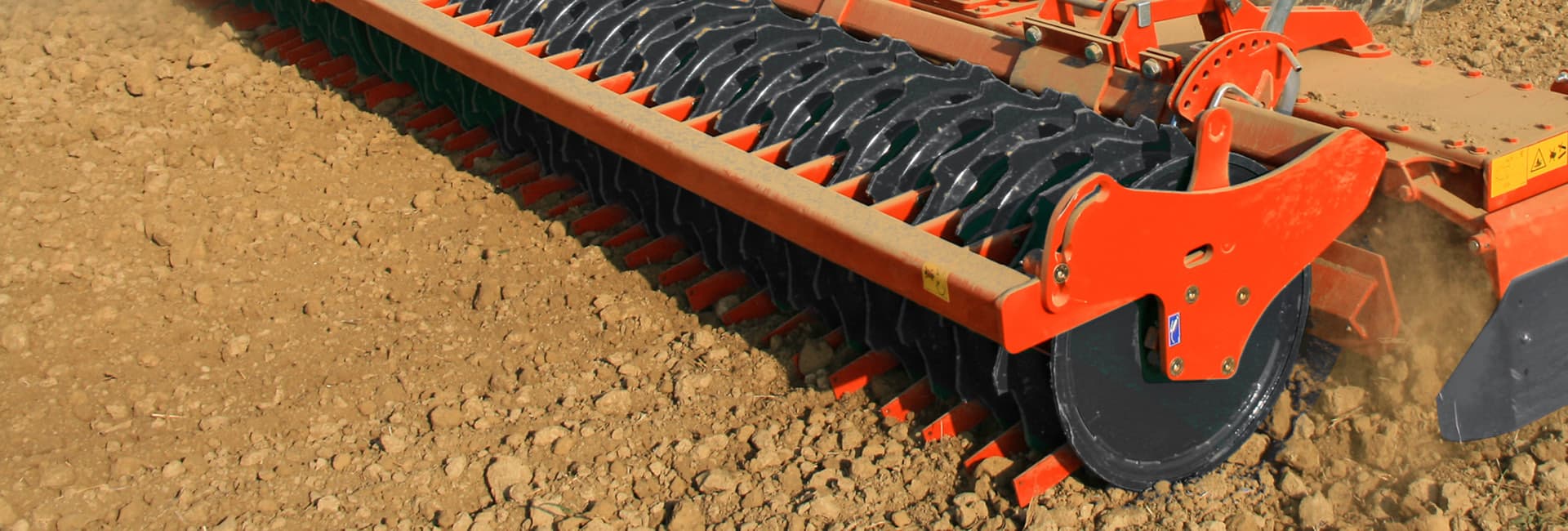

Kubota PH power harrows can be used in combination with a Kubota seed drill to prepare the seedbed and seed it in one pass. With the "Euro-Connection" system, you can quickly and easily switch to solo mode to use only your power harrow.

Videos

Features

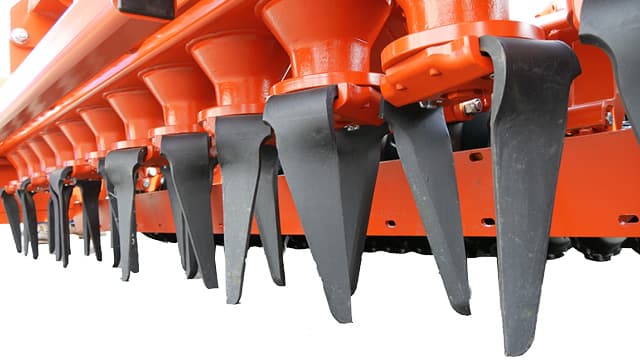

Heavy-duty trough design

The trough, which is the backbone of the whole machine is extremely rigid against bending and torsional stress. It is made as a sandwich double bending beam to give additional stability. The robust headstock allows easy connection to all tractors and combination with seed drills. It absorbs, together with the trough, all mechanical forces and ensures additionally safe working.

Helical tine positioning

The tines are arranged in varying angle positions in order to prevent damage caused by stones and ensure even levelling. 4 rotors per meter and the helical tine positioning reduce the peak loads on the driveline which results in smoother running and less fuel consumption. All gears are hardened in the trough for a long lifetime.

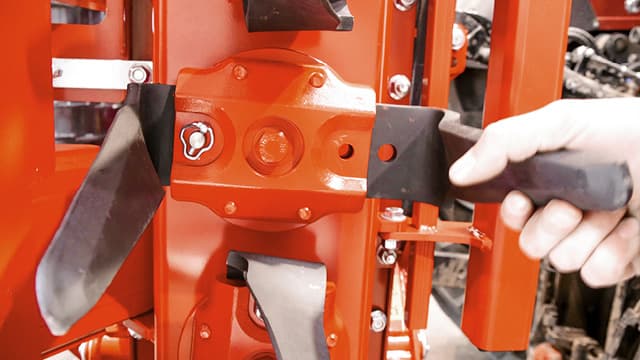

Tine Holder

The rotor shaft and tine holder consist of two parts for easy maintenance and long-lifetime, even in stony conditions. The two large bearings are very strong and the large distance between the bearings ensure maximum resistance to radial stress, even in the most extreme conditions. The tines are easy to change due to the Quick-Fit system.

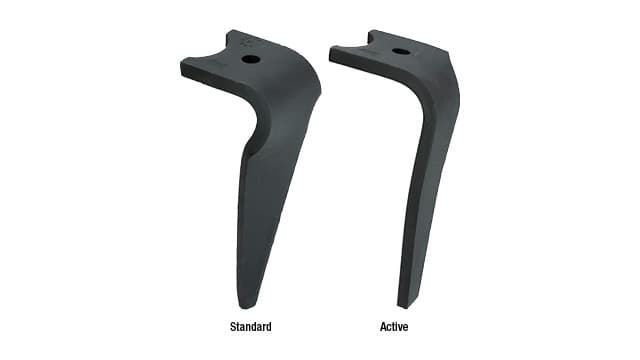

Optional Active tines

The special shape of the active tines ensure good penetration. The Active tines lift the soil and throw the clods as well as the plant residues into the front working zone. This ensures a perfect levelling even in the tractor tracks and leaves a stable crumbling structure.

Optional XHD tines

The XHD Carbide reinforced tines are your perfect weapons against extremely abrasive soil conditions. These tines are designed to offer you longer lifetime, keeping costs and downtime to a minimum in environments where standard tines are wearing too fast.

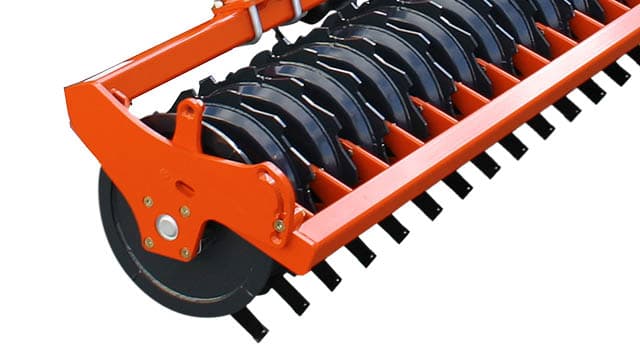

Actipack Roller - for medium to heavy soils

The Actipack roller displays its superb working qualities especially on medium to heavy soils and also in wet, stony and sticky conditions thanks to the independent skids and adjustable knives. Scrapers support the cleaning effect. Leave a weatherproof surface and prevents for erosions. Results like an active soil implement.

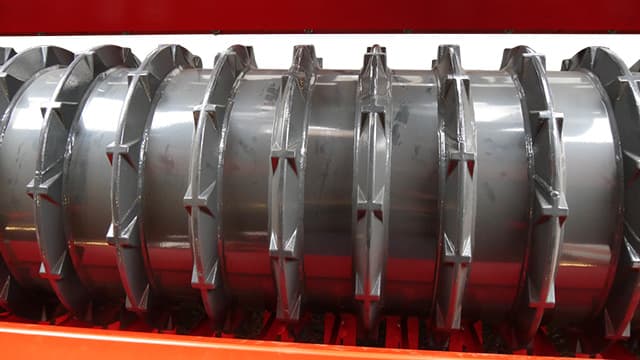

Actiline Roller - for combination with Kubota SD seed drills

The new Actiline is a trapezoidal roller with relatively narrow crest width of 1’57” (40mm). The crests support the constant drive of the roller and avoid slip in light or tough and wet conditions. The stripe-wise consolidation and V shape furrow in front of the CX-II seed coulter bar ensure a perfect seed placement and even field emergence. The water holding capacity and oxygen exchange is imporved.

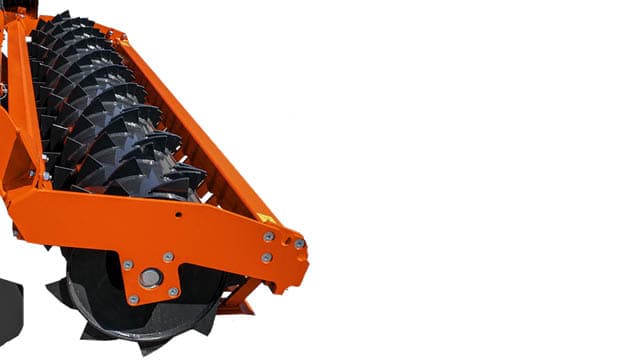

Tooth Packer Roller - for medium to heavy soils

Optimum performance on medium to heavysoil with a good carrying capacity and self-cleaning effect. The scraper bar can be adjusted centrally are adjustable and Scrapers carbide-coated on request. Versatile in combination with seed drill.

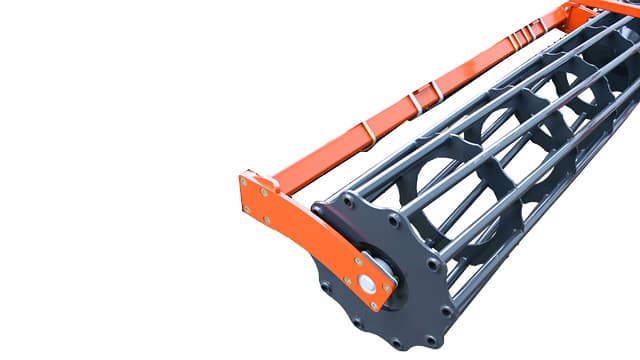

Single Cage Roller - for light to medium soils

10 bars ensure a good loading capacity and effective crumbling actions. Suitable for light to medium soils and dry working conditions

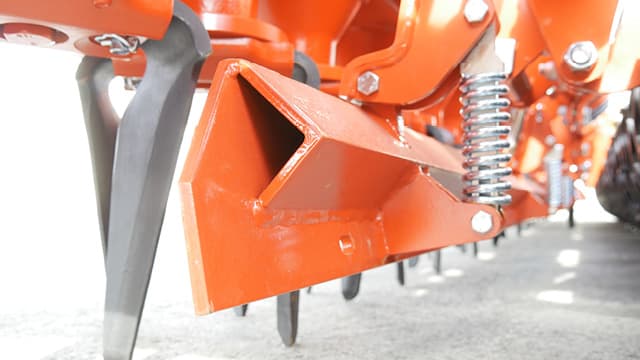

Rear levelling bar

Kubota’s high performance rear levelling bar is infinitely height adjustable. The turnbuckle adjustment is easy to use, even with a seed drill mounted. A scale ensures an even height is achieved across the full working width. An in-built spring system maintains the bar in an effective and consistent operating position.

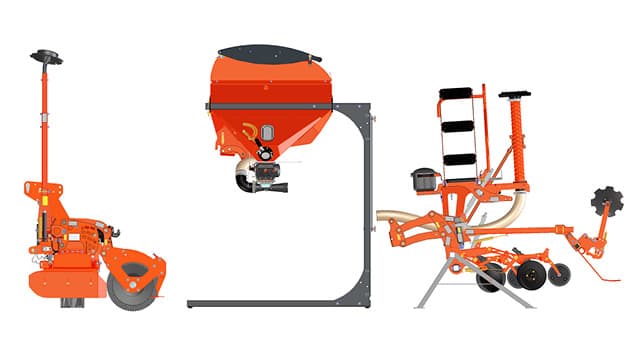

Combination tillage and seeding

All Kubota power harrows can be combined with Kubota seed drills or coulter bars with front hopper system. The coulter bar can be coupled or uncoupled quickly via EURO-CONNECTION, allowing the power harrow also to be used solo. The coulter bar is attached directly to the roller frame while trackmarkers are attached to the power harrow.

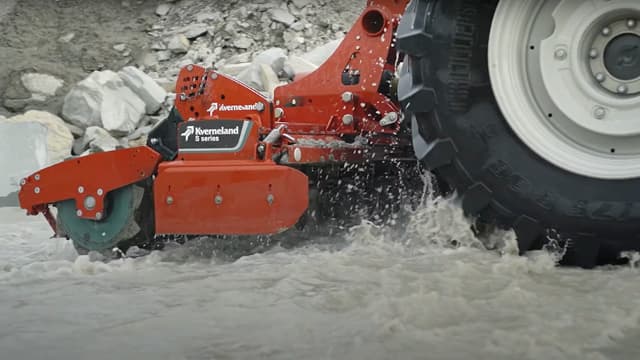

Lifetime test

The Kubota PH Series power harrow's equal, the Kverneland S series, has undergone a lifetime test in the quarry under the toughest conditions.

Models

    PH1251

    • Frame: Rigid
    • Working Width: 8'2" (2.5 m)
    • Min/Max: 70.0/140.0 HP

    PH1301

    • Frame: Rigid
    • Working Width: 9'10" (3.0 m)
    • Min/Max: 70.0/140.0 HP

    PH2301

    • Frame: Rigid
    • Working Width: 9'10" (3.0 m)
    • Min/Max: 85.0/180.0 HP

    PH2351

    • Frame: Rigid
    • Working Width: 11' 6" (3.5 m)
    • Min/Max: 85.0/180.0 HP

    PH2401

    • Frame: Rigid
    • Working Width: 13'1" (4.0 m)
    • Min/Max: 85.0/180.0 HP

    PH3301

    • Frame: Rigid
    • Working Width: 9'10" (3.0 m)
    • Min/Max: 100.0/250.0 HP

    PH3351

    • Frame: Rigid
    • Working Width: 11'6" (3.5 m)
    • Min/Max: 100.0/250.0 HP

    PH3401

    • Frame: Rigid
    • Working Width: 13'1" (4.0 m)
    • Min/Max: 100.0/250.0 HP

    PH3451

    • Frame: Rigid
    • Working Width: 14'7" (4.5 m)
    • Min/Max: 100.0/250.0 HP

    PH2400F

    • Frame: Fold
    • Working Width: 13'1" (4.0 m)
    • Min/Max: 130.0/300.0 HP

    PH2450F

    • Frame: Fold
    • Working Width: 14'7" (4.5 m)
    • Min/Max: 130.0/300.0 HP

    PH2500F

    • Frame: Fold
    • Working Width: 16'5" (5.0 m)
    • Min/Max: 130.0/300.0 HP

    PH2600F

    • Frame: Fold
    • Working Width: 19'7" (6.0 m)
    • Min/Max: 130.0/300.0 HP

    PH3450F

    • Frame: Fold
    • Working Width: 14'7" (4.5 m)
    • Min/Max: 140.0/350.0 HP

    PH3500F

    • Frame: Fold
    • Working Width: 16'5" (5.0 m)
    • Min/Max: 140.0/350.0 HP

    PH3600F

    • Frame: Fold
    • Working Width: 19'7" (6.0 m)
    • Min/Max: 140.0/350.0 HP
