RTV-XG850 Special Edition

Utility Vehicles

Starting at $24,872
  • Warranty 2 years

Features

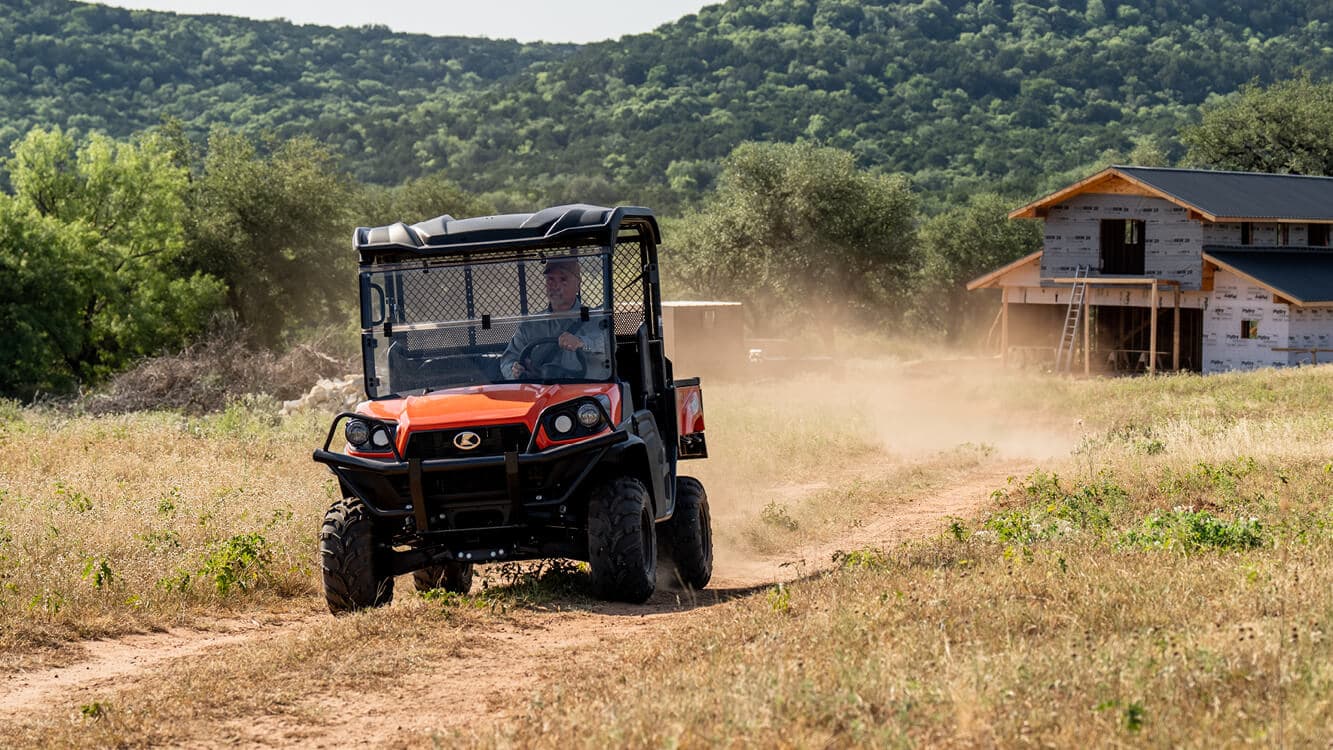

Durability meets speed

When the great outdoors call, jump in your RTV and hit the gas. The RTV-XG850’s new and powerful 54 HP gasoline engine gives you the speed to get where you’re going fast, up to 64 km/h (40 mph). With impressive acceleration and torque, you’ll take on every big hill and distant destination with absolute confidence.

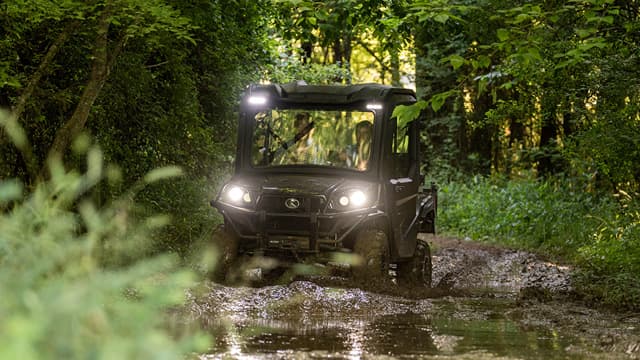

Strong high-rigidity frame

Power and speed combined with agility and stability, that’s the RTV-XG850’s driving experience. Designed for easy handling at any speed, it’s always a comfortable drive thanks to the enhanced speed-sensitive EPS (Electronic Power Steering). Tuned front and rear independent suspension, along with a refined powertrain offer a consistently smooth ride with high loading performance, while the engine assists braking for greater control and safety during descents.

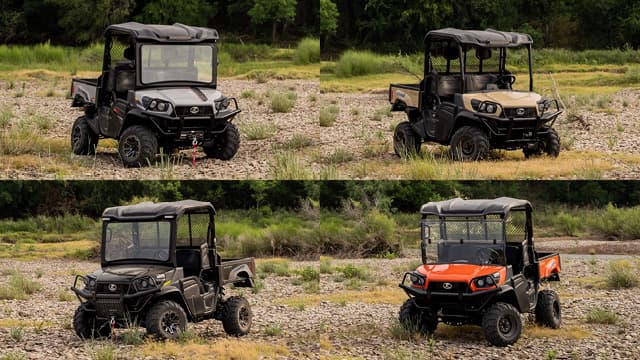

Decisive styling

Every detail from the revised decals, comfortable bench seat, bold headlights, digital dash, and rugged cargo box are functional, fun, and aggressive. Stone Gray is a new colour available, and there are many colours, wheels, and accessories available to fit your needs.

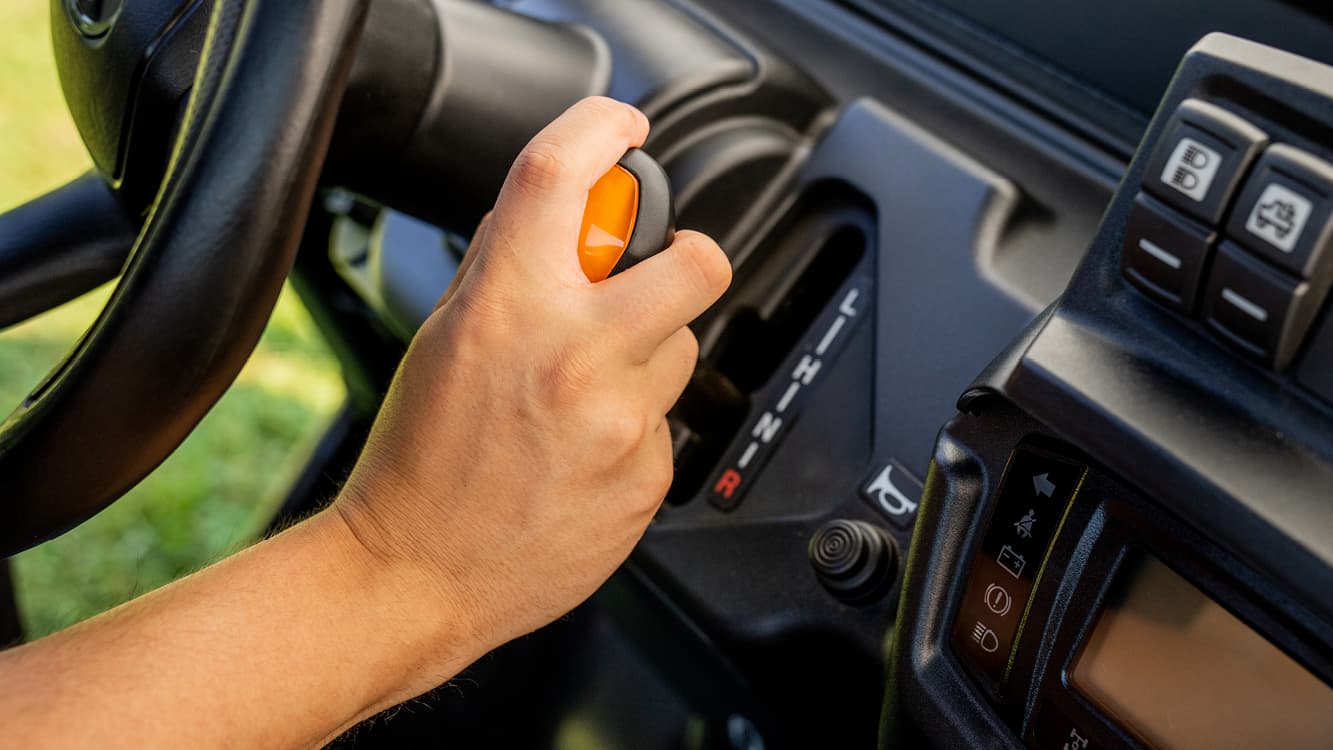

Durable CVT-PLUS transmission

The RTV-XG850 is equipped with Kubota’s worry-free CVT Plus transmission. The centrifugal clutch keeps the thick, double-cogged belts tight for minimal slippage, ensuring fast response and excellent belt durability. Fully shielded to keep out dust and water, the CVT Plus also cools the CVT belt with a large cooling fan for even greater durability.

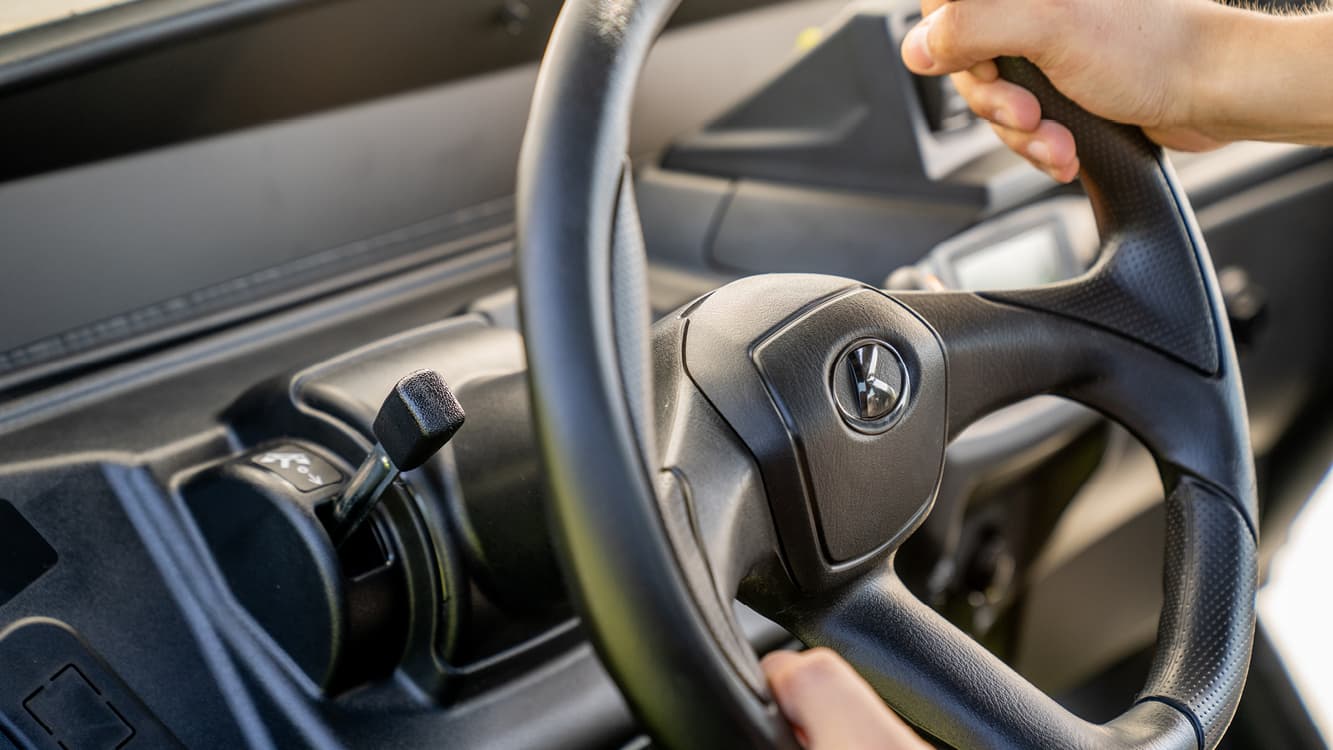

Standard speed sensitive power steering

The RTV-XG850 comes standard with speed sensitive Electric Power Steering providing better handling and comfort for operators throughout a range of speeds.

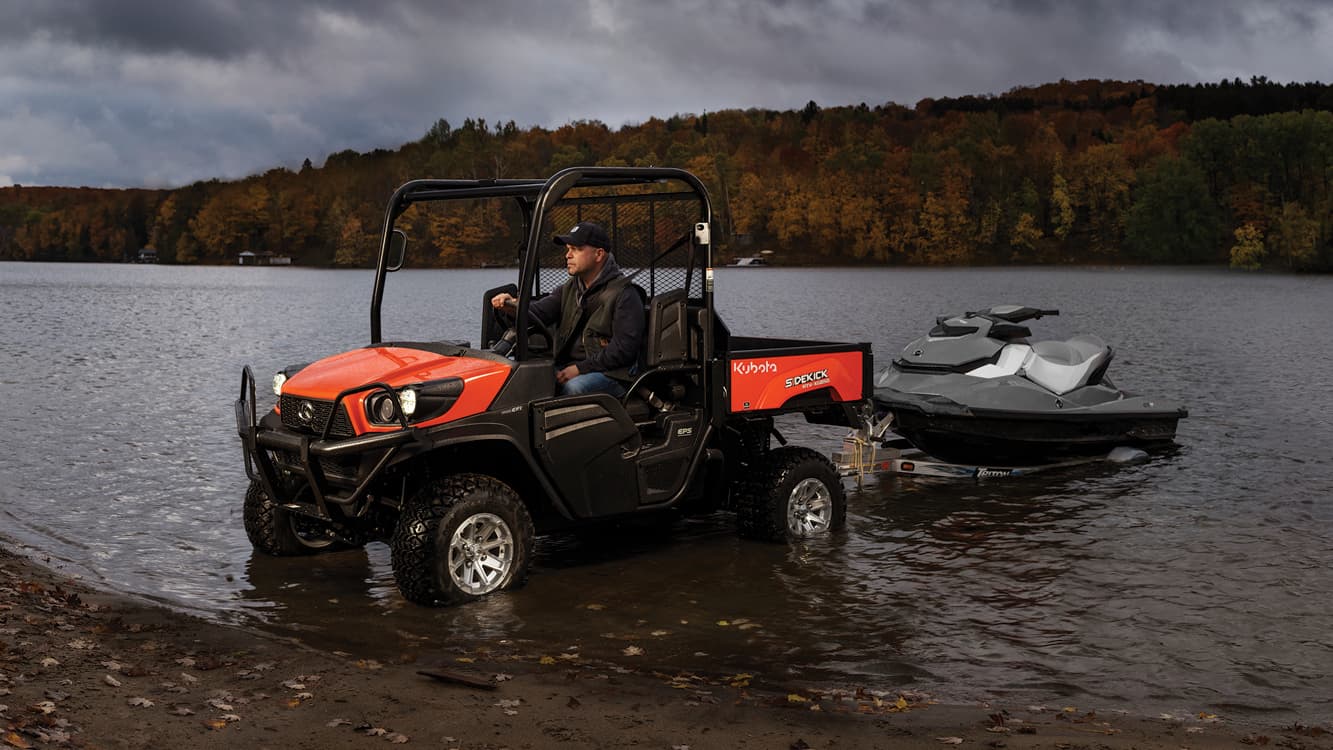

High towing and payload capacity

Built to handle a wide range of hauling jobs, from gear and supplies to tools and materials. And it can carry a lot, up to 15.2 cubic feet or half a ton (1,000 lbs.) in a rugged steel cargo box with optional electric lift for fast and effortless dumping. The RTV-XG850 is even ready to tow your boat, trailer and more by providing 2,000 lbs. of towing capacity and standard trailer hitch.

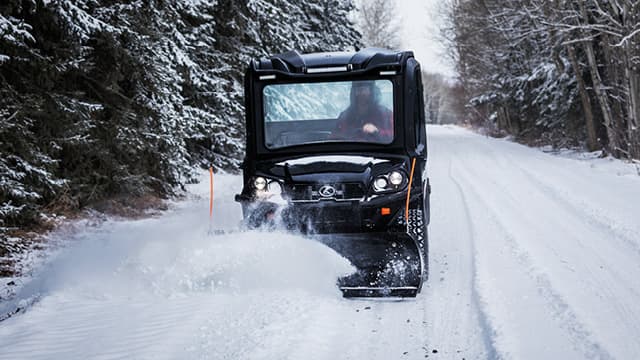

Quick attach accessories and cab components

Build your own custom RTV-XG850 with optional modular cabin and accessories that will make your RTV experience more comfortable, personal, and memorable.

Specs

Model
Model name
RTV-XG850
Type
Special
Body colour
Black
Engine
Type
2-cylinders, 4-cycle, Gas, DOHC
Cooling system
Liquid
Rated engine speed
6000 rpm / 6000 rpm
Displacement
51.93 cu. in. / 851 cc
Engine net power
54 HP / 40.3 kW
Electrical
Battery
56 A / 56 A
Headlights
LED (High-Low) with 2 reflectors
Drive train/transmission
Max. traveling speed
40 mph / 64.4 km/h
Differential lock - Front axle
Limited-slip differential
Differential lock - Rear axle
Foot operated differential lock
Type
CVT PLUS (CVT with centrifugal clutch)
Gear selection
Hi-Lo range forward, neutral, reverse
Chassis, axle and brakes
Type of rear suspension
Independent with coil over shock
Steering type
Speed sensitive Electric Power Steering
Type of front suspension
Independent, Dual A-arms with coil over shock
Front suspension travel
9 in / 229 mm
Rear suspension travel
8.5 in / 216 mm
Brakes
Parking brake
Rear wheel, hand operated
Front
4-wheel hydraulic disc brake
Rear
4-wheel hydraulic disc brake
Dimensions and weight
Overall height
79.5 in / 2020 mm
Wheelbase
80.5 in / 2045 mm
Weight
1770 lb / 803 kg
Turning radius
13.1 in / 4 mm
Length
119 in / 3093 mm
Width
63.2 in / 1605 mm
Maximum towing capacity
2000 lb / 907.2 kg
Maximum payload capacity
1408 lb / 639 kg
Tread centers
Front
52 in / 1320 mm
Rear
52 in / 1320 mm
Ground clearance
Front
9.8 in / 249 mm
Rear
9.4 in / 238 mm
Cargo box
Depth
11.4 in / 290 mm
Length
57.5 in / 1465 mm
Width
40.5 in / 1030 mm
Volume
15.2 cu. ft. / 0.43 m3
Maximum payload capacity
1000 lb / 454 kg
Material
Steel
Dumping system
Manual
Fluid capacities
Fuel tank capacity
8.64 gal / 32.7 l
Safety equipment
Maximum noise level at operators ear
Seat belts
3-point
Protective structure
2 in / 50.8 mm
Open Station Certified
SAE J2194 and OSHA ROPS standards
Seat
2
Tires
ATV
Front
25 x 10-12, 6-ply
Rear
25 x 10-12, 6-ply
HDWS
Front
25 x 10-12, 6-ply
Rear
25 x 10-12, 6-ply
Other
Tilt steering wheel
Standard
Alloy wheel
Standard
Front guard
Standard front guard
Hydraulic bed lift
Optional electric hydraulic power lift
Spray-on bed liner
Standard
