Features
Lasting durability
The Kubota Z200 Series models are easy to maintain and are built with quality materials to keep you mowing for years to come.
3 cutting sizes available
42” cutting width for the Kubota Z232KW-42 model, 48” for the Kubota Z242KH-48 & Kubota Z242KW-48 models and 54” for the Kubota Z252KH-54 & Kubota Z252KW-54 models.

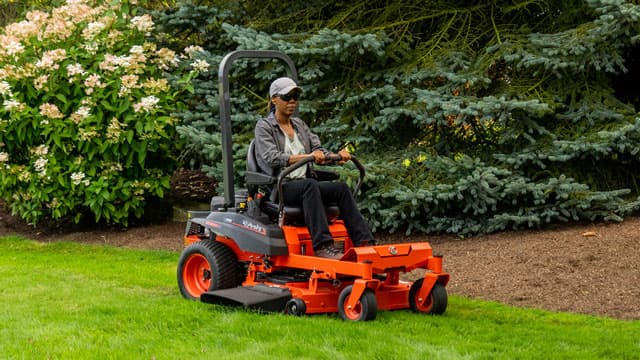

Pro cutting performance
With its heavy-duty 42” 10-gauge fabricated mower deck, you get high cut quality and maximum productivity – which means commercial-grade results.

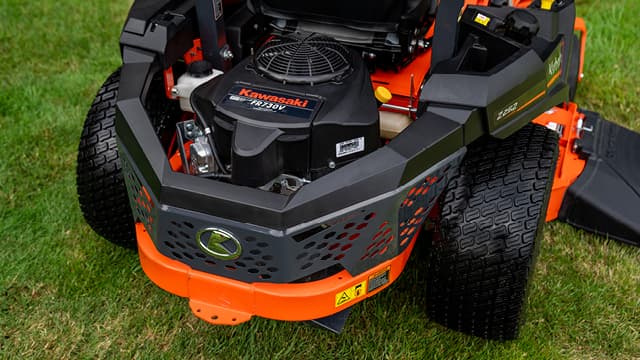

Serious power
The Z232KW-42 is powered by a Kawasaki engine that’s easy to maintain and has 21.5 hp. The result is an outstanding zero-turn mowing performance that can handle tough grass conditions and keep moving at speeds up to 10.5 kph.
Specs
- Model
- Model name
- Z232KW-42
- Engine
- Type
- Air cooled 2 cylinders
- Displacement
- 44.3 cu. in. / 726 cc
- Safety starting system
- Key switch
- Engine gross power
- 21.5 HP / 16.03 kW
- Dimensions and weight
- Overall height
- 66.7 in / 1693 mm
- Overall length
- 74.4 in / 1890 mm
- Wheelbase
- 48.7 in / 1236 mm
- Overall width
- With mower
- 55.1 in / 1400 mm
- Without mower
- 42.4 in / 1076 mm
- Weight
- With mower
- 643 lb / 292 kg
- Tread
- Front
- 24.3 in / 616 mm
- Rear
- 34.8 in / 885 mm
- Tires
- Front
- 11 × 4 – 5 pneumatic
- Rear
- 18 × 7.5 – 10
- Drive train/transmission
- Type
- Hydro-Gear® ZT-2200
- System
- 2-HST w/ Gear reduction
- Traveling speed
- Speed control
- System
- 2-hand lever
- Forward
- 6.5 mph / 10.5 km/h
- Reverse
- 4 mph / 6.4 km/h
- Chassis, axle and brakes
- Brakes
- Type
- Cog style parking lock / Hand lever
- Power take off (PTO)
- Type
- Belt drive
- Clutch
- Electric clutch
- PTO Brake
- Dry disc
- Mower decks
- Model
- RCK42P-122Z
- Type
- Side discharge
- Lift system
- Mechanical
- Mower deck depth
- 4.5 in / 114 mm
- Belt type
- Belt drive
- Mower deck thickness
- 0.135 in / 3.4 mm
- Type anti-scalp rollers
- Rigid
- Cutting width
- 42 in / 1066.8 mm
- Number of blades
- 2
- Mounting method
- Parallel linkage
- Blade tip speed
- 17700 fpm / 5394.96 m/min
- Cutting height (min.)
- 1.5 in / 38.1 mm
- Cutting height (max)
- 4.25 in / 107.95 mm
- Operating area
- Seat suspension
- N/A
- Fluid capacities
- Fuel tank capacity
- 3.6 gal / 13.6 l
- Fuel system
- Fuel type
- Gasoline
- Other
- Hour meter
- Hour meter
- Fuel gauge
- Sight window
- Electrical
- Battery - cold cranking amps
- U1 (300CCA, 410CA)
