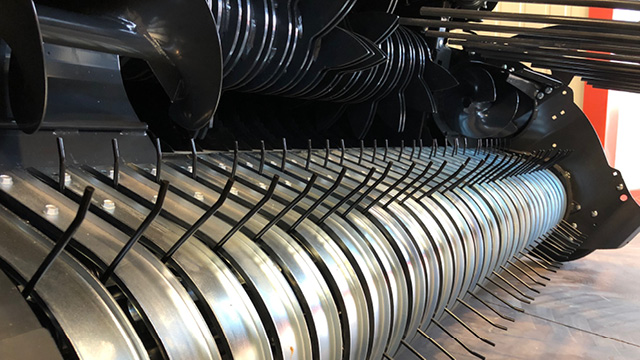

High capacity – extra wide pick-up
The BV4580’s extra wide pick-up of 86” (2.2m) with twin cam tracks offers superb crop lift performance. The pick-up is designed for high capacity and efficient intake providing smooth and even crop flow into the baler chamber.

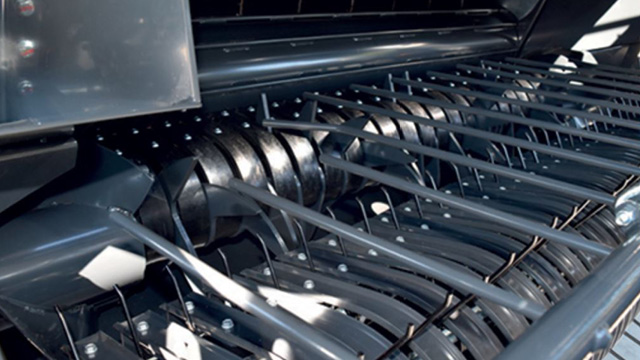

EasyFeed rotary intake system
EasyFeed rotary intake system with huge intake capacity and gentle crop handling. This technology incorporates integrated augers into the rotor feed design, allowing the crop to flow across the entire width of the bale chamber, resulting in increased capacity and bale density.

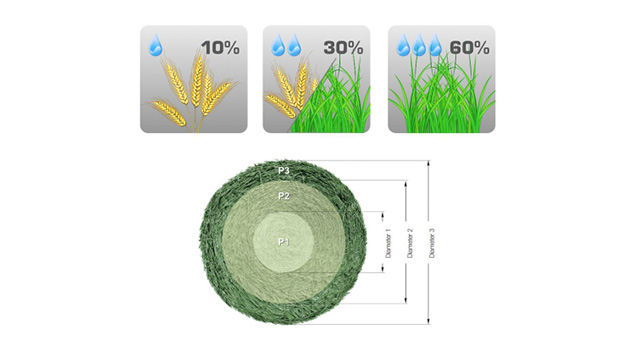

With 3 pre-selectable bale density settings "Intelligent Density 3D" makes it easy to choose the correct bale density in different crops. Each of the 3 crop type presets change the desired density in each of the 3 bale zones. They can also be manually adjusted by zone for further customization.
PowerBind net wrap
The BV4580 comes with the patented PowerBind net wrap system. This redesigned technology has allowed Kubota to get away from the old high-wear feed rollers. The net is fed directly into the bale chamber by injection plates for maximum tightness and injection accuracy.

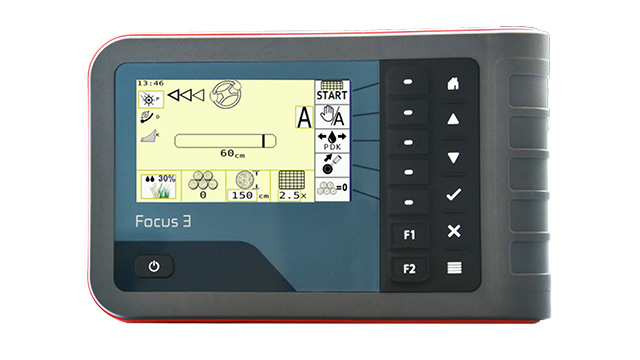

FOCUS 3 Control Terminal
The Focus 3 Control Terminal gives the operator full control of all functions from the tractor cab. These functions are shown on a large and very clear digital color display. The terminal also drives the binding without any intervention from the operator. An optional kit is available to connect the BV4580 to an ISOBUS monitor.
Superb bale quality
The bale chamber offers a combination of 3 rollers and 8 belts, providing smooth bale rotation and reduced crop loss even in dry conditions. Two aggressive front rollers are designed to ensure efficient bale start in all crop conditions. The results are very firm consistent bales with a moderate core ideal for easy stacking and transport.

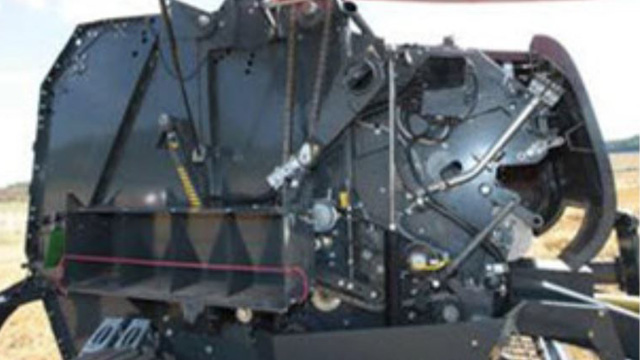

Heavy duty split driveline features remote greasable bearings on fixed rollers, strong roller shafts and bearings, and cam clutch protection. Automatic chain lubrication is available for extra reliability and low-maintenance.

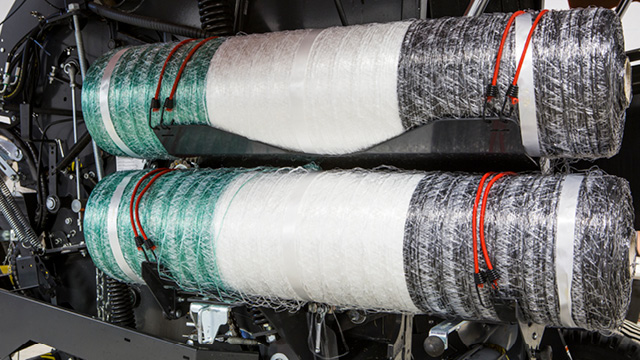

Net and twine storage
Plenty of storage for net and twine. Space for 2 spare net rolls, one in use, and eight balls of twine.
Automatic twin tying with the fast acting double tube system means simultaneous binding of both edges of the bale, keeping binding time to a minimum. Over crossing of twines in the center of the bale provides no loose ends at the end of the binding cycle.

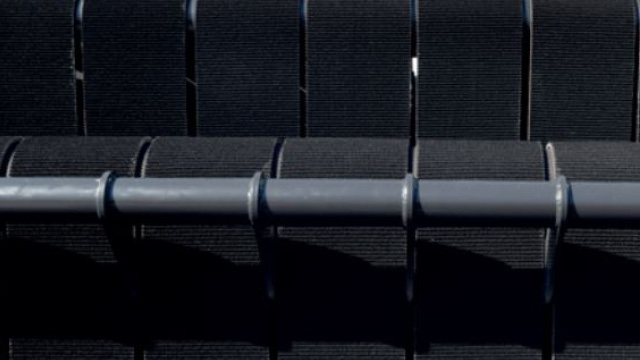

Durable MRT belts
Durable MRT profile belts with heavy duty MATO lacings. Fully adjustable proportional electric control of bale density.
Advanced bale chamber
Kubota's BV4500 Series bale chamber offers a combination of 3 rollers and 8 wide laced belts. This mixed chamber ensures a smooth bale start, offering smooth bale rotation and reduced crop loss, even in dry conditions. A short-crop plate comes standard with every BV4580 baler.

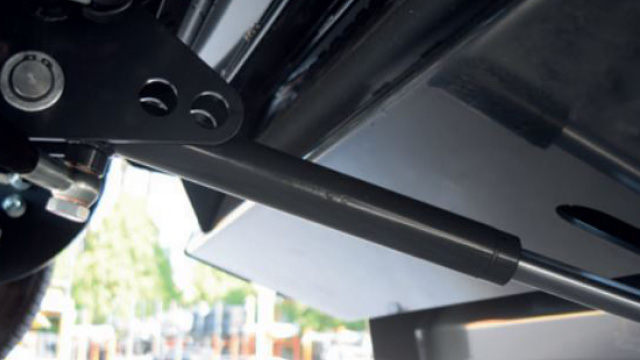

Standard fit hydraulic pickup lift for reduced downtime between jobs and added in field convenience.
- Horsepower (min.): 70.0 HP
- Bale Size: 62"x69"
- PTO: 540/1000 RPM
- Pickup Width: 86” (2.2m)

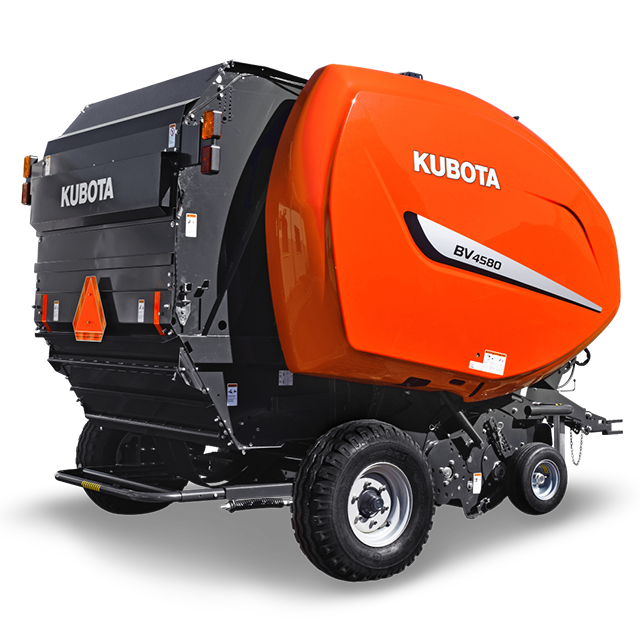

Baler 5' x 6' net & twine wrap
