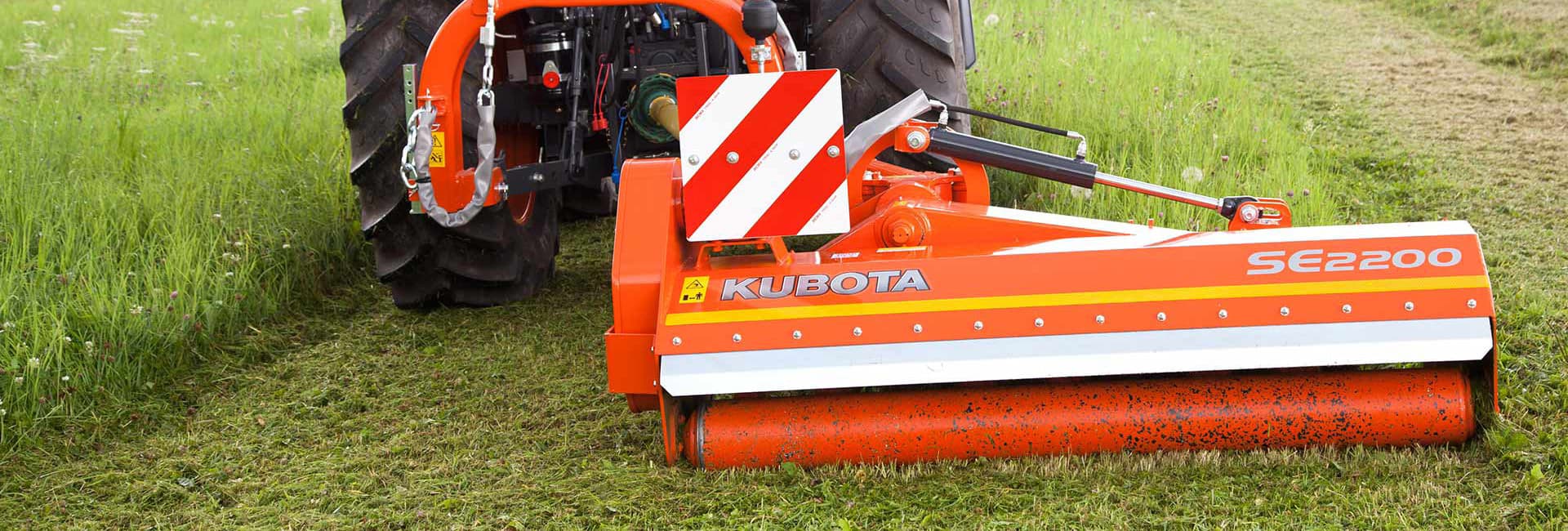

SE2000 Series

Flail Choppers

Features

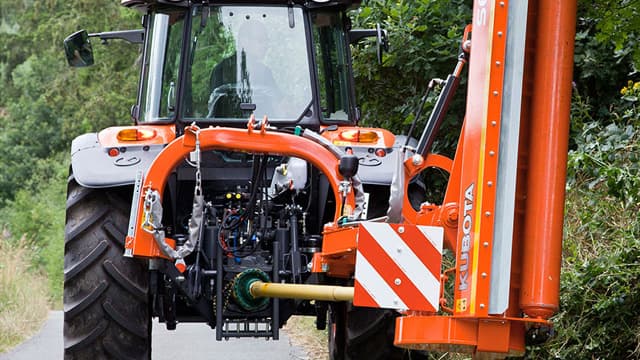

Lateral transmission

The transmission is based on a gearbox with integrated freewheel (up to 150hp) and 2 lateral pulleys which drive 5 belts. An automatic belts tensioner spring loaded always ensure stable rotor transmission. It’s standard supplied with double wide angle pto shaft in order to get best performances and comfort during utilization.

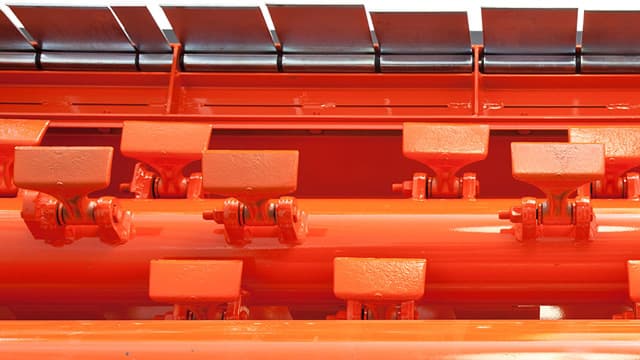

Roller

Diameter 7.7” (195mm), self-cleaning, integrated bearing, easy adjustment of the working depth. The roller is standard equipment.

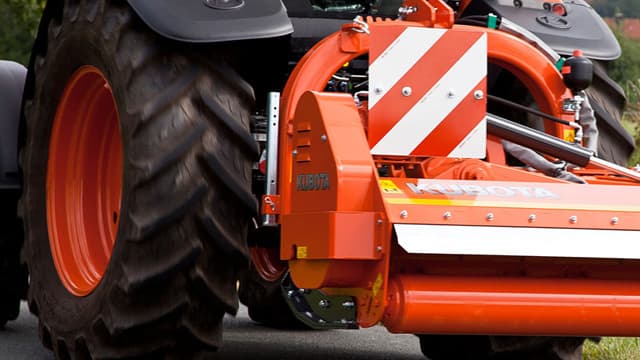

Robust and guarded

Main frame and parallelogram articulations designed according FEM analysis and calculations; heavily tested in Klepp laboratory to ensure reliable and safe working life. Gearbox and transmission guarded against eventual misuse during operations.

Models

    SE2155

    Flail Choppers
    • Horsepower Range: 45.0-90.0 HP
    • PTO: 540 rpm
    • Working Width: 61.0"

    SE2185

    Flail Choppers
    • Horsepower Range: 45.0-90.0 HP
    • PTO: 540 rpm
    • Working Width: 72.8"

    SE2200

    Flail Choppers
    • Horsepower Range: 45.0-90.0 HP
    • PTO: 540 rpm
    • Working Width: 78.7"

    SE2200P

    Flail Choppers
    • Horsepower Range: 70.0-130.0 HP
    • PTO: 540 rpm
    • Working Width: 78.7"

    SE2230P

    Flail Choppers
    • Horsepower Range: 70.0-130.0 HP
    • PTO: 540 rpm
    • Working Width: 90.6"
